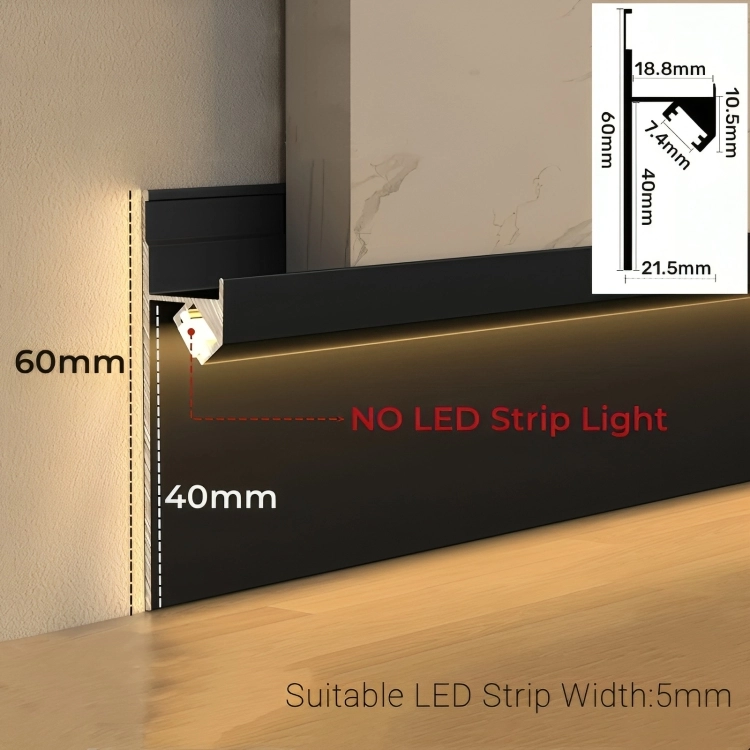

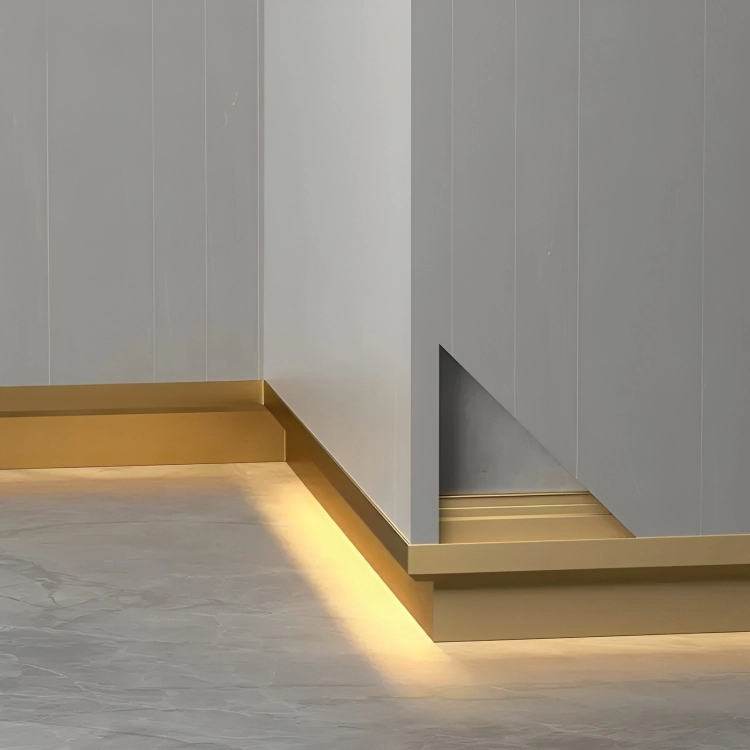

Elevate corridors, living areas, hospitality lobbies, and retail spaces with a clean, floating baseboard lighting effect that softly washes the floor in glare-free, indirect light. This 60 mm (2.36″) architectural LED skirting channel recesses into the wall, concealing the light source inside an angled internal track to produce a uniform downward glow while protecting the wall-to-floor junction. Precision-extruded from anodized aluminum, it ensures excellent heat dissipation, crisp architectural definition, and long-term durability. The integrated polycarbonate (PC) cover smooths the light output for a refined, continuous finish. Designed for narrow LED tapes up to 5 mm PCB width, the profile can be cleanly miter-cut and joined end-to-end for long linear installations. Ideal for contractors, interior designers, and architects seeking a robust, minimalist solution for premium interiors.
LED strip not included.
To get recommended LED Strip lighting, [CLICK HERE].
Specifications:
| Feature | Detail |
|---|---|
| Application | Baseboard/skirting recessed wall trim for indirect floor lighting |
| Mounting | Recessed wall mount (fix through back leg into substrate) |
| Profile Height | 60 mm (2.36″) |
| Light Wash Opening | 40 mm (1.57″) |
| Faceplate Thickness | 1.5 mm (0.06″) |
| Base Projection (from wall) | 21.5 mm (0.85″) |
| Internal Channel Depth | 10.5 mm (0.41″) |
| Max LED PCB Width | 5 mm (0.20″) |
| Angled Light Track | ≈45° downward wash |
| Material | Anodized aluminum body with internal PC light-control cover |

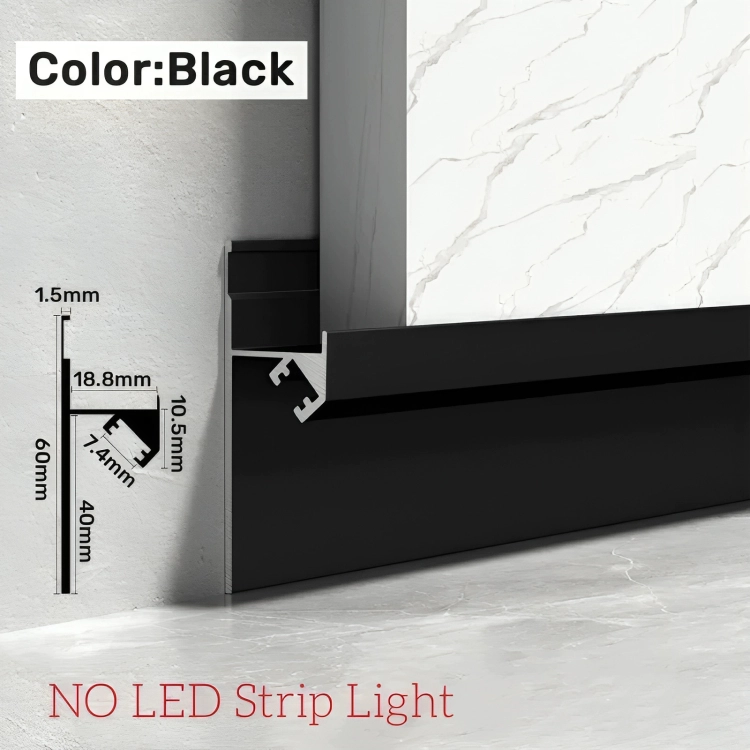

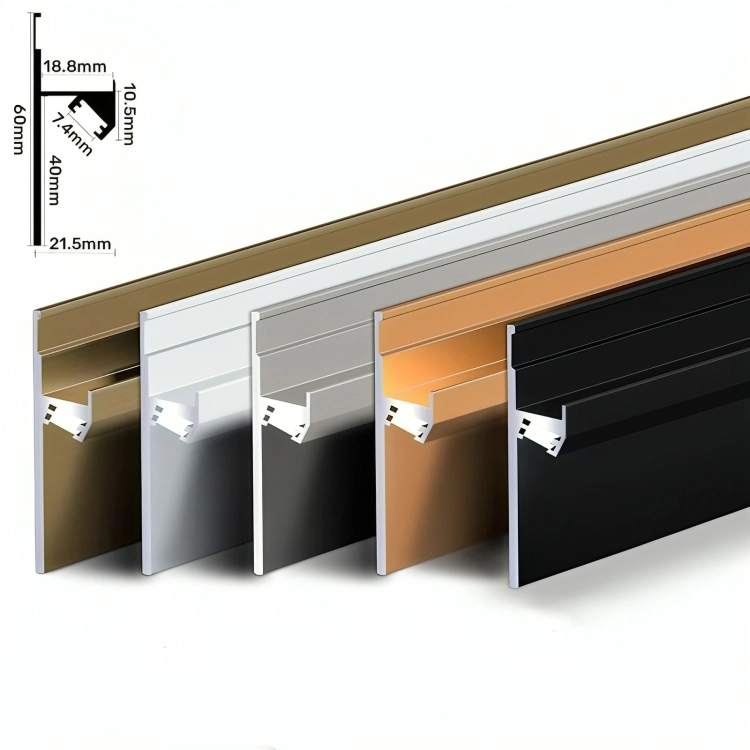

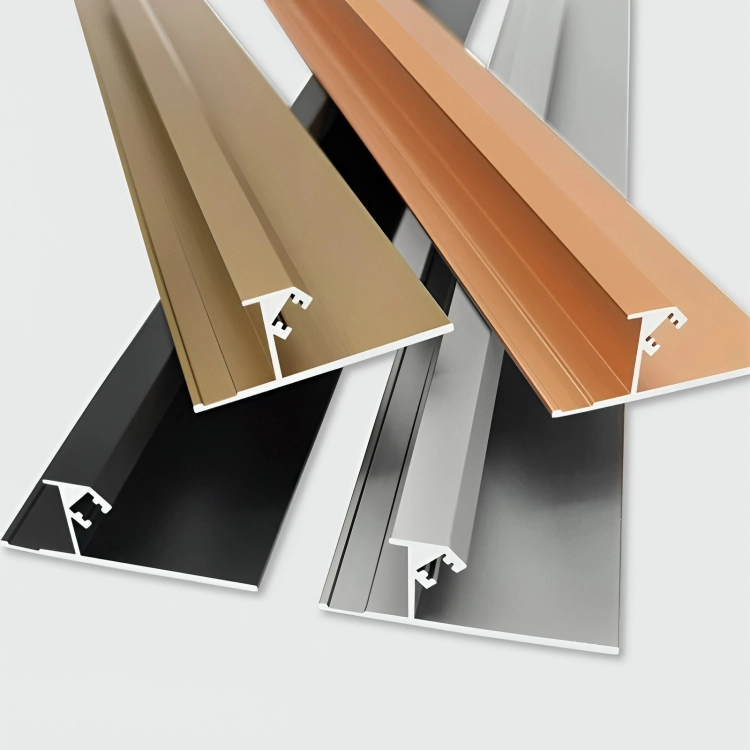

| Finish Options | Black, Gray/Silver, Bronze/Copper, Champagne Gold |
| Length Options | 1.6 ft (0.5m), 3.3 ft (1m), 6.6 ft (2m) |
| Cut/Join | Cut to length on site; butt-join sections for longer runs |
| Included Accessories | Straight connectors, inside corner connectors, outside corner connectors, and end caps |
| Typical Use | Corridors, living rooms, hotel/public areas, retail fixtures |
| What’s Not Included | LED strip, power supply, connectors, and controls (order separately) |

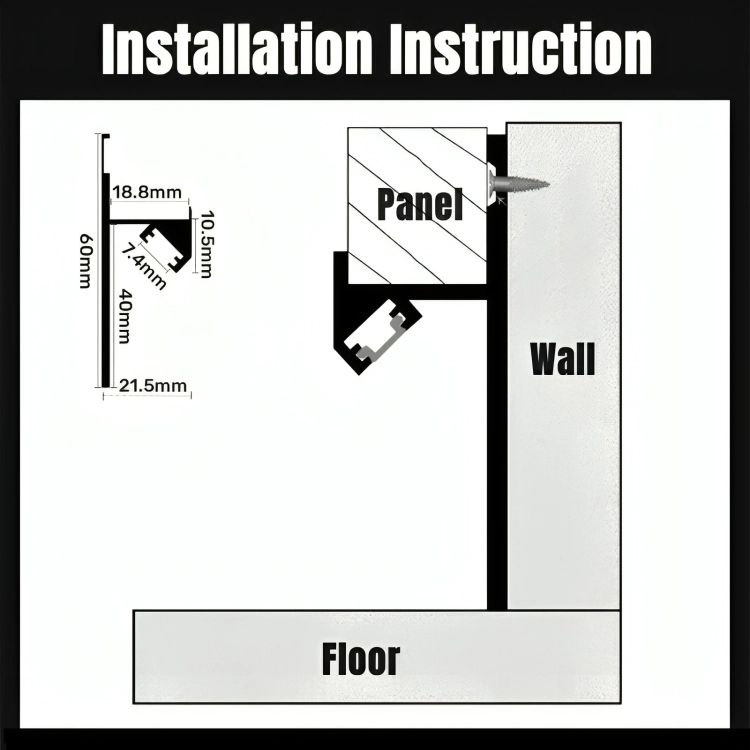

Installation Guide:
Plan the Run – Confirm dimensions, reference lines, and power feed locations along the finished floor line.
Prepare Recess – Rout or chisel a slot matching the profile depth; ensure the base surface is level and free of dust.
Dry-Fit – Cut to length using a non-ferrous blade; test alignment and miter joints; deburr all edges.
Mount the Profile – Fix the back leg into wall framing or substrate with suitable screws or anchors; maintain a flush front reveal.
Wire & Test – Route low-voltage leads, check polarity, and test dimming before LED installation.
LED Installation – Apply LED strip (≤5 mm PCB) into the angled internal track, avoiding twists or sharp bends.
Finish Assembly – Insert the internal PC cover, end caps, and corner connectors for continuous alignment.
Final Test – Power on and verify smooth, even illumination before completing wall and floor finishes.
