Special Offer: Use code LABOR4 in cart
$19.00
Model number: CDP-011
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
Give your floors a floating, softly lit edge with this architect-grade aluminum skirting board LED channel. The rigid 6063 extruded alloy profile features a slim top light slot that conceals and protects your LED tape while delivering a clean, contemporary plinth appearance. Its anodized finish resists scratches and corrosion, and the aluminum body doubles as a heat sink for extended LED lifespan. Surface-mount installation makes it ideal for remodels and modern interiors without wall chasing. Every set includes all free connectors—straight, inside corner, outside corner, and end caps—so long runs remain perfectly aligned and seamless. Available in 50 mm, 60 mm, and 80 mm heights to suit living rooms, hallways, offices, and boutique retail environments. LED strip not included.
To get recommended LED strip & driver, [CLICK HERE].
Specifications:
| Feature | Detail |
|---|---|

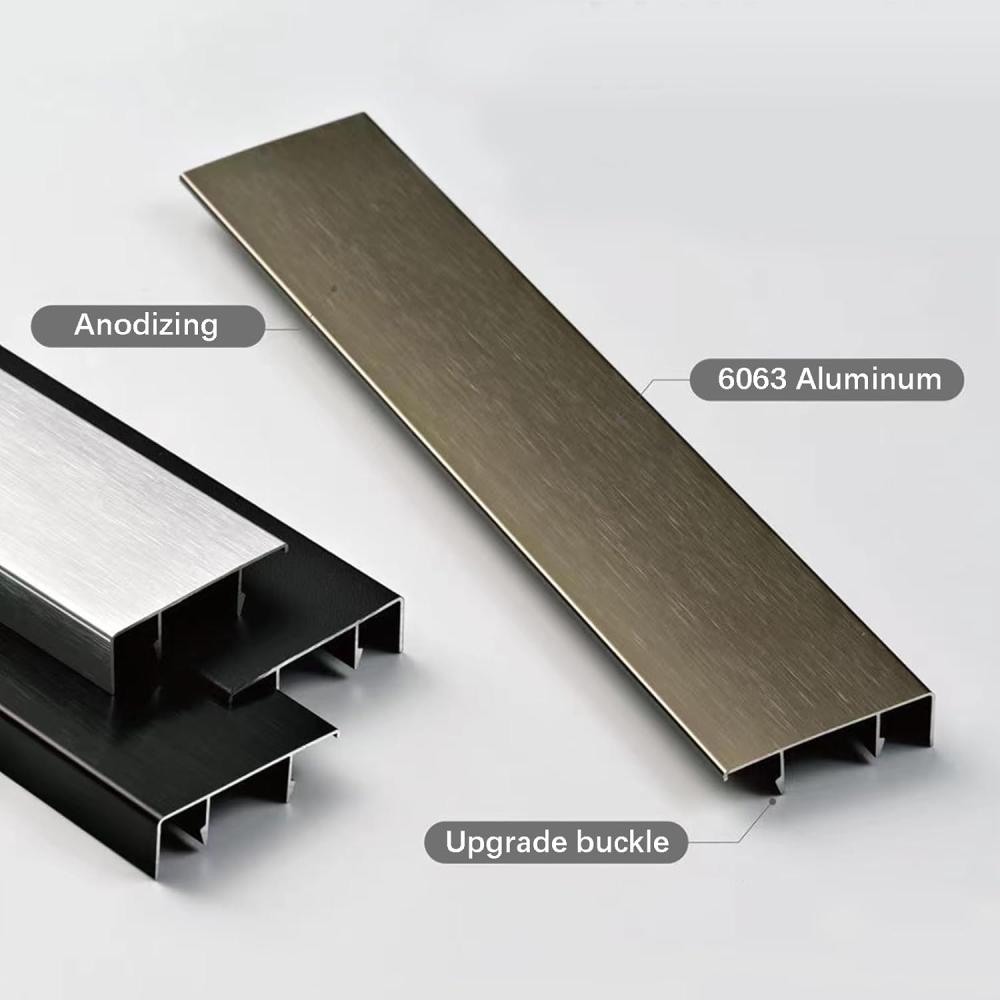

| Material | 6063 extruded aluminum, anodized |

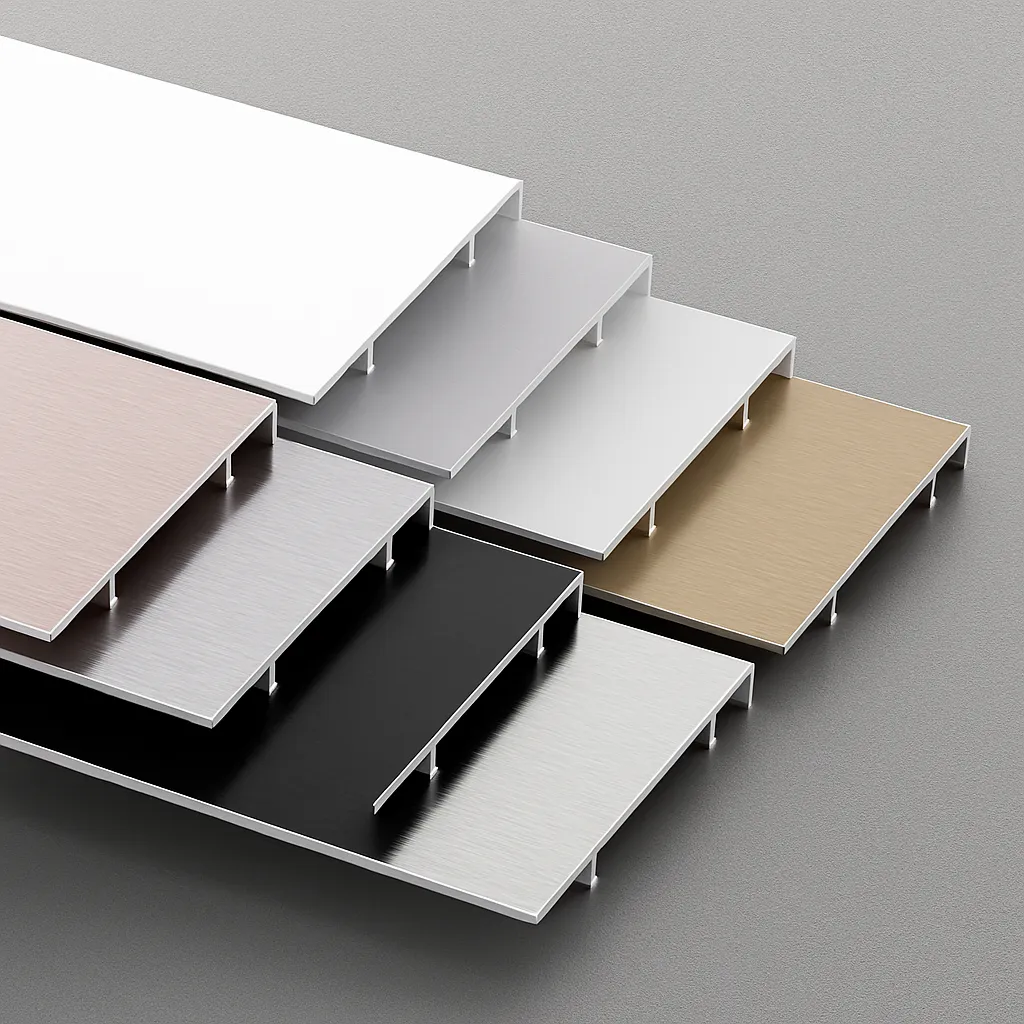

| Finish Colors | Silver, Champagne, Rose Gold, Matte Black, Brushed Aluminum, White, Gold |
| Mounting | Surface-mounted (adhesive + screws; no wall chasing required) |
| Heights |
1.9″ (50 mm), 2.3″ (60 mm), 3.1″ (80 mm) |
| Length Options | 1.6 ft (0.5 m), 3.3 ft (1 m), 6.6 ft (2 m) |
| Face Thickness | 1.2 mm aluminum panel |
| Projection | ≈10 mm from wall (low-profile) |
| LED Compatibility | Standard low-voltage LED tape or mini silicone neon ≤ 8 mm width |
| Power | 12 / 24 V DC (driver not included) |
| Diffuser | Integrated top lip for hidden, indirect glow (no visible dots with high-density tape) |
| Heat Management | Full-length aluminum heat sink for LED longevity |

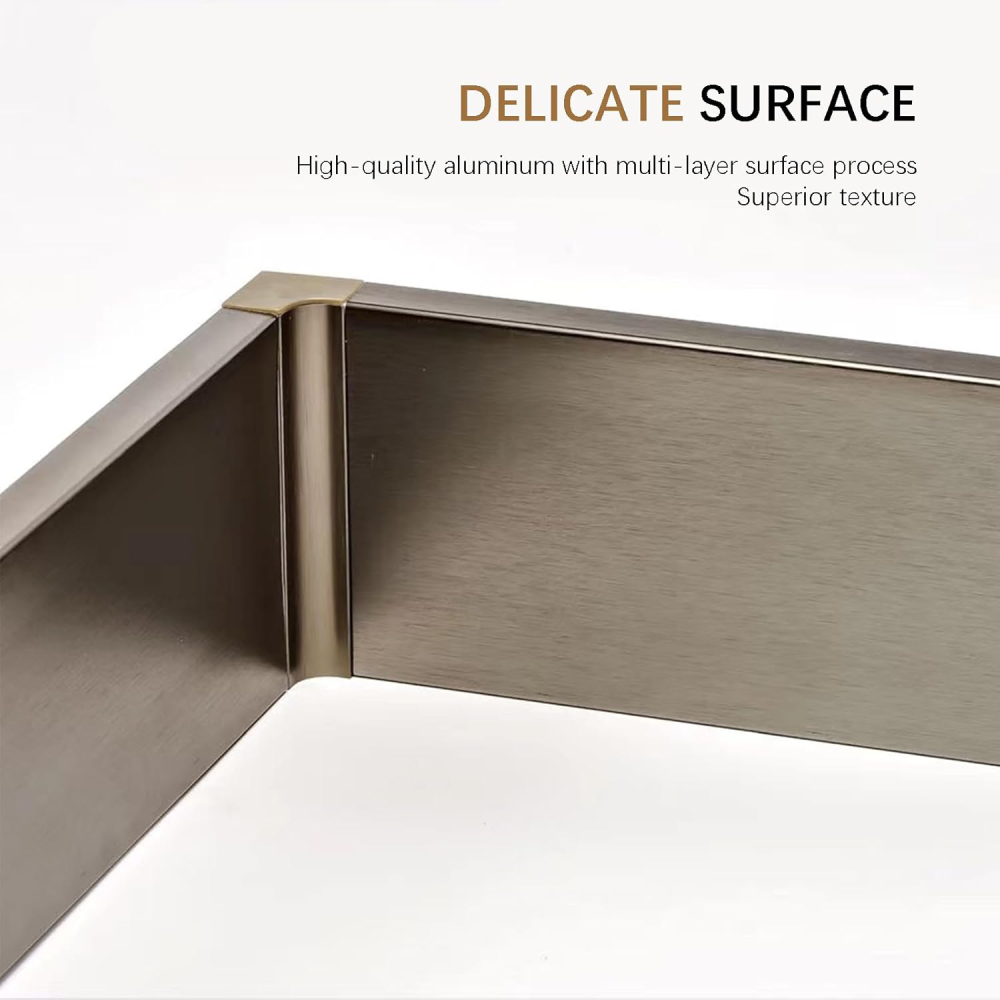

| Included Accessories | Straight connectors, inside corner connectors, outside corner connectors, and end caps |

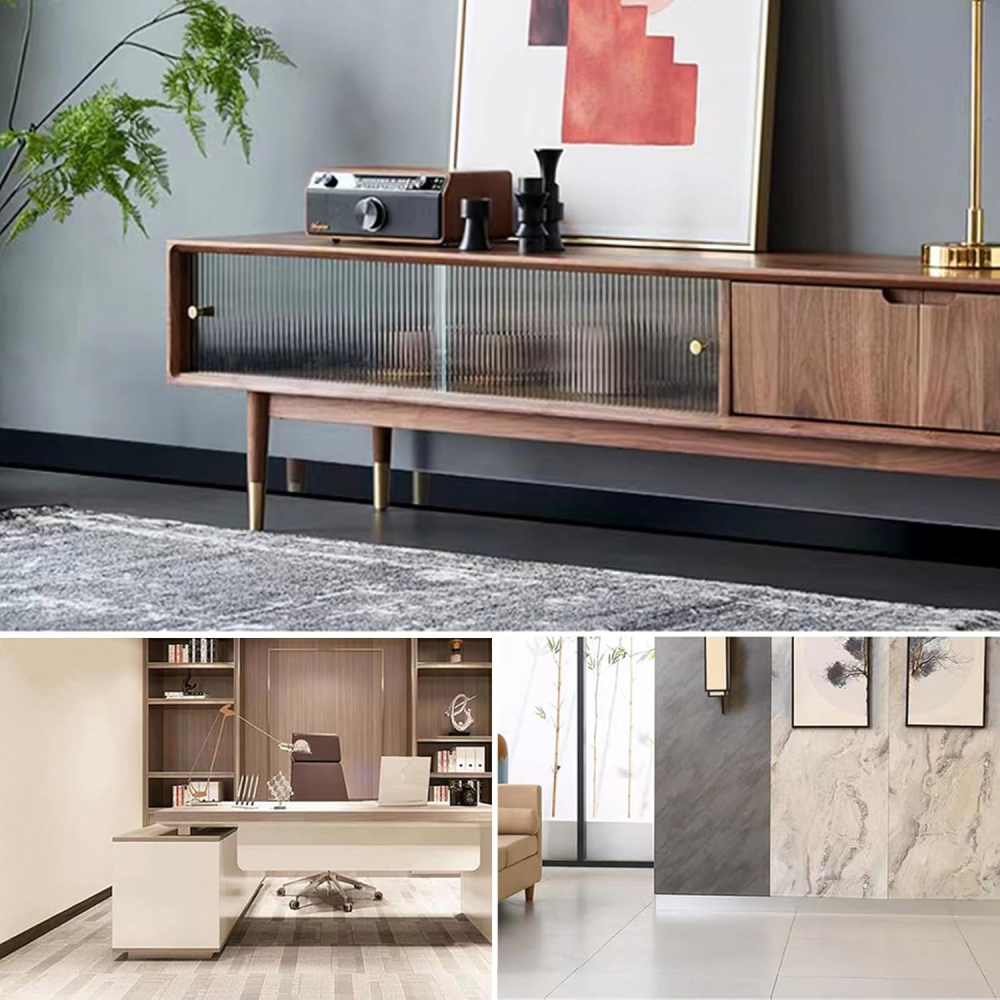

| Typical Applications | Hallways, living rooms, offices, reception areas, millwork plinths |
| What’s Not Included | LED strip, power supply/driver, dimmer, mounting hardware/adhesive |
Installation Guide:
Plan & Layout – Measure total run length and mark driver feed points; dry-fit corners/connectors.
Prepare Wall – Clean and level the surface; draw a horizontal reference line.
Fix Profile – Apply adhesive beads, then secure with countersunk screws every 12–16 in (300–400 mm).
Wire & Test – Run low-voltage leads, adhere LED tape (≤ 8 mm) in the slot, and power-test.

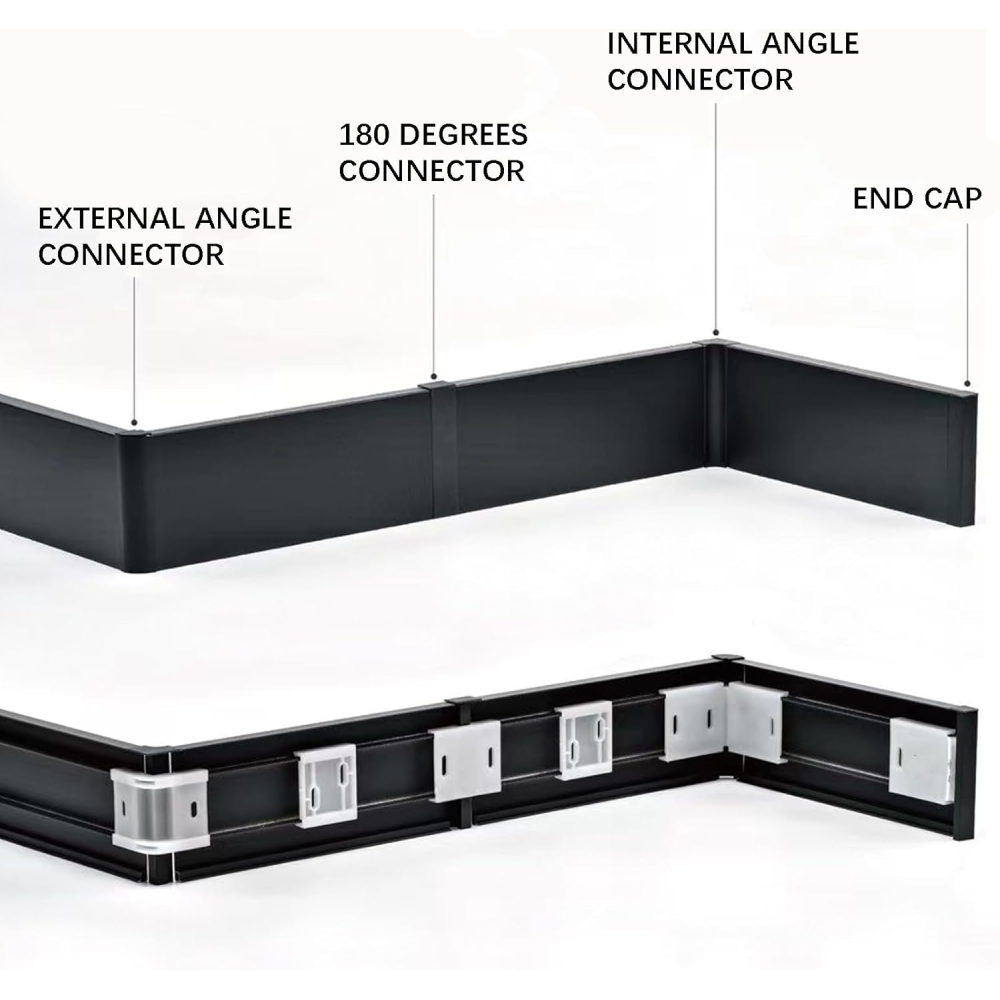

Join Sections – Use included straight or corner connectors for perfect alignment; attach end caps at terminations.
Finish & Power – Wipe surfaces clean, verify straightness, and connect to a 12/24 V DC driver or dimmer.
