Model number: ACL-035
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $39.00.$29.00Current price is: $29.00.
Original price was: $39.00.$19.00Current price is: $19.00.
Original price was: $24.99.$14.99Current price is: $14.99.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.

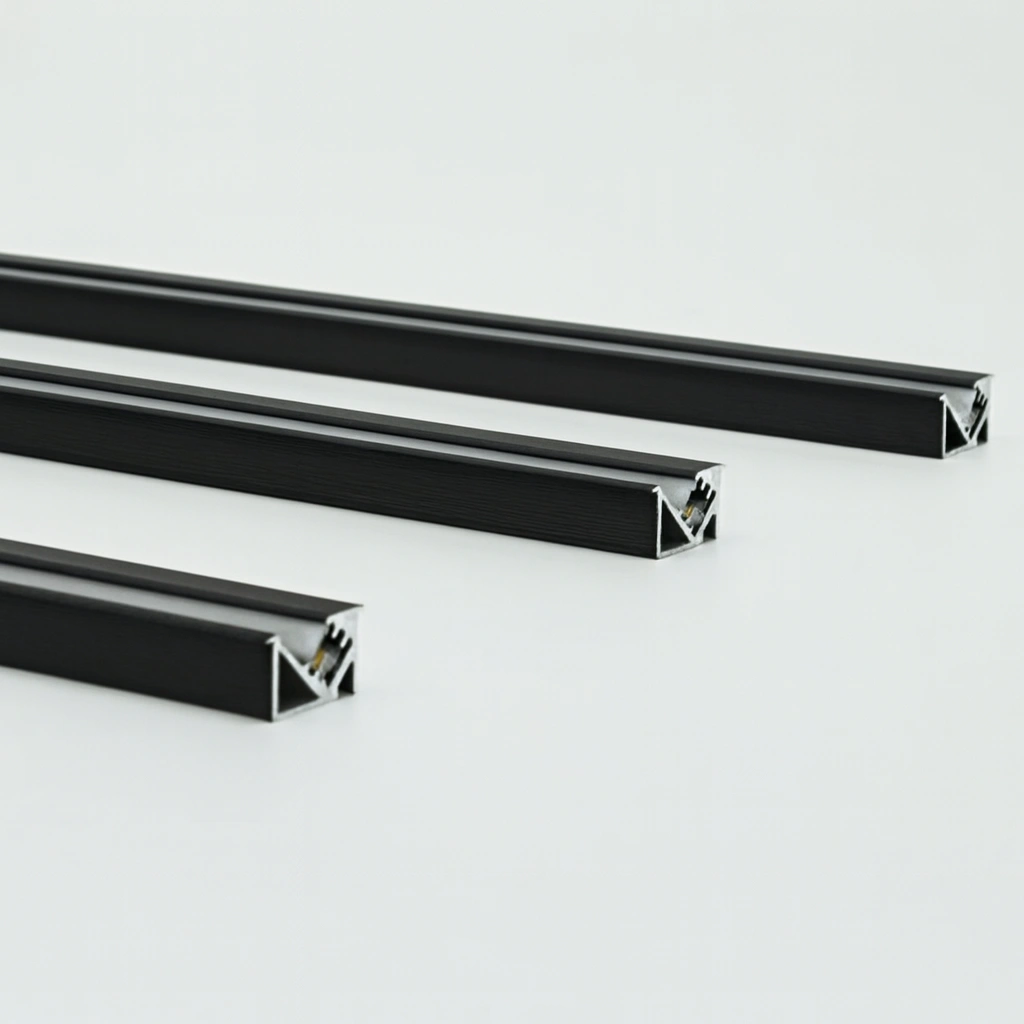

Designed for contractors, interior designers, and architects, this 45° Recessed LED Aluminum Profile offers a sleek and hidden lighting solution for cabinets, shelving, closets, and custom woodwork. The precision-engineered angle directs light at 45 degrees, delivering a clean and targeted glow while keeping the LED source completely out of sight.
Each aluminum bar includes cuttable sections and supports end-to-end connections, allowing you to customize and extend the installation across longer runs effortlessly. The aluminum housing provides exceptional heat dissipation and protects the LED strip for long-lasting performance.
Its milky PC diffuser softens and evenly distributes the light, enhancing the visual appeal of any modern interior. Available in three sleek profile widths: 13 mm (0.51″), 20 mm (0.79″), and 24 mm (0.94″), this Y-shaped recessed channel installs flush into surfaces for a high-end, built-in look. Compatible with LED strips up to 6 mm (0.24″) wide, this profile allows full lighting customization. LED strip not included.
Built to last — every under-cabinet lighting channel comes with our 5-Year Warranty, ensuring peace of mind and reliable performance for years to come
To get recommended LED Strip lighting, [CLICK HERE]
| Feature | Detail |
|---|---|
| Material | Anodized Aluminum + Milky PC Diffuser |
| Installation Type | Recessed / Embedded |

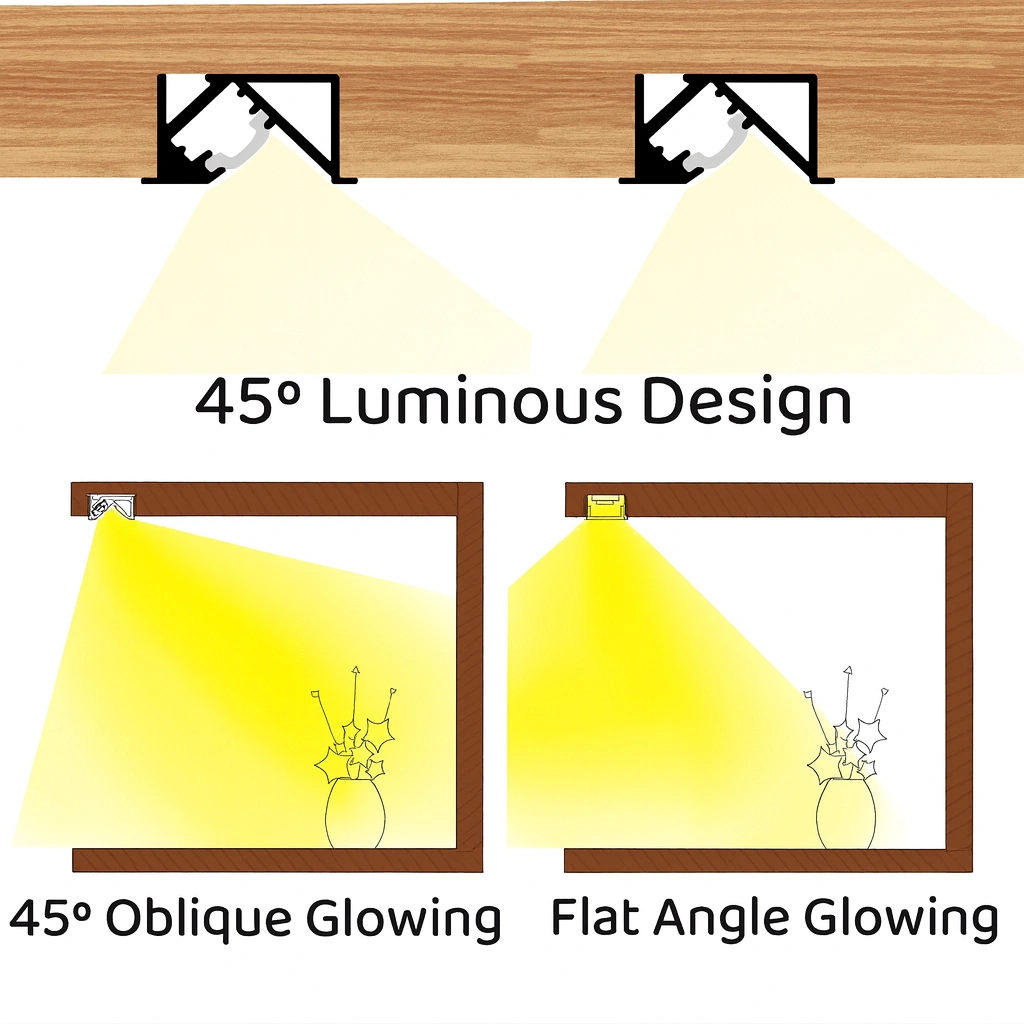

| Beam Angle | 45° Oblique Light Projection |
| LED Strip | Not included |

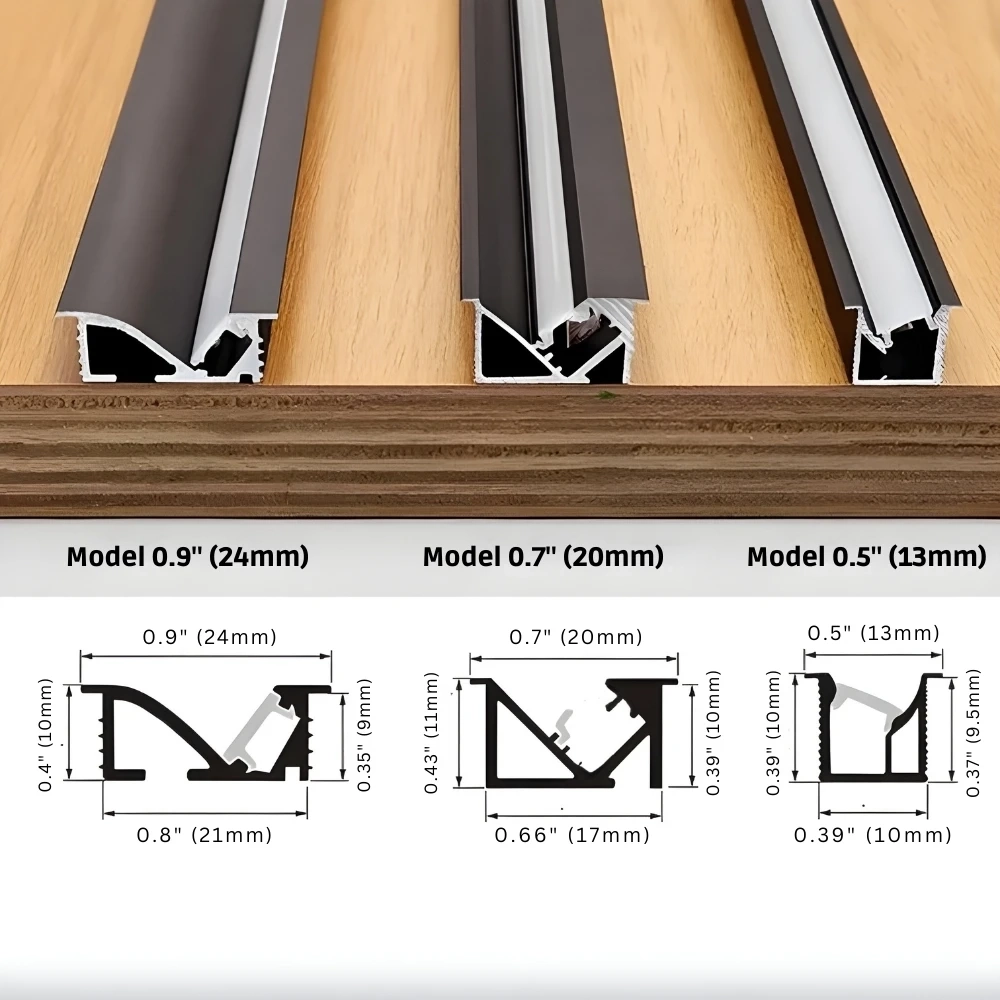

| Profile Width Options | 13 mm (0.51″), 20 mm (0.79″), 24 mm (0.94″) |
| Profile Depth | Up to 11 mm (0.43″) depending on model |

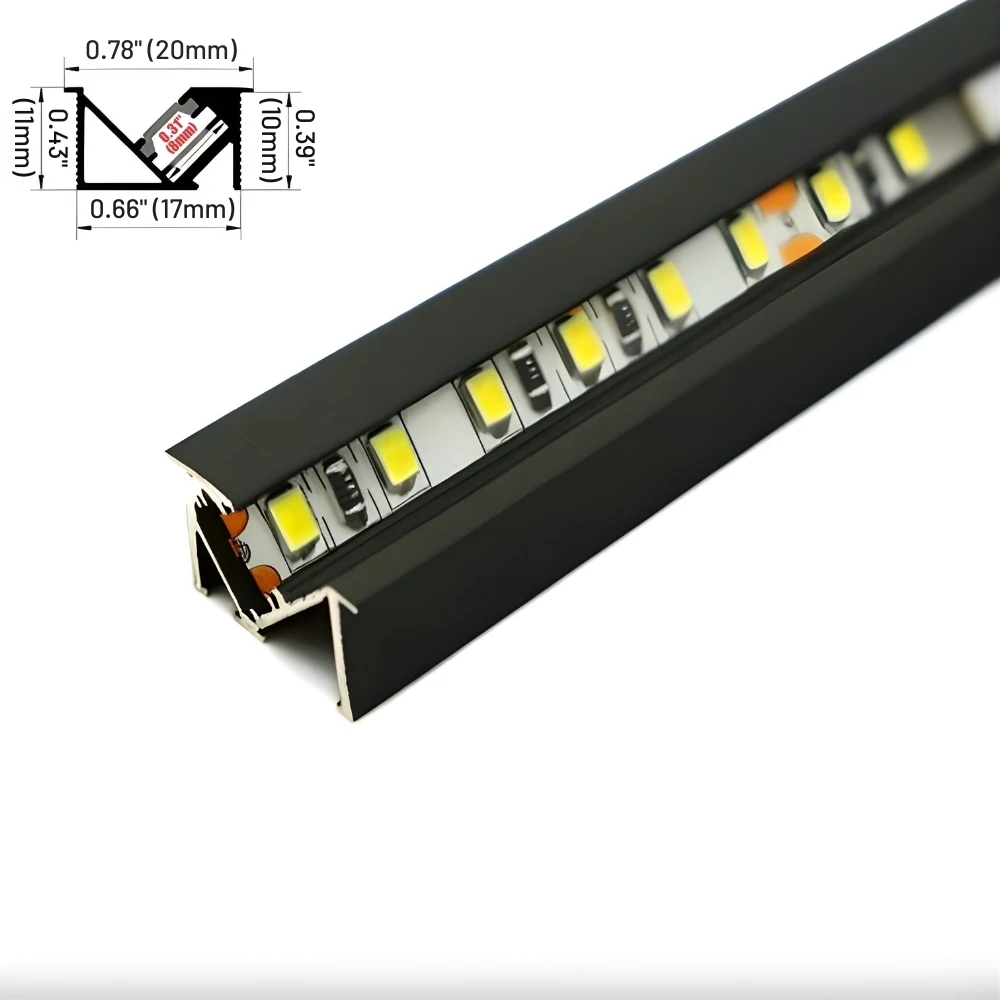

| Inner Slot Width | Fits LED strips up to 6 mm (0.24″) wide |
| Diffuser Cover | Milky White – Smooth and Soft Light Dispersion |

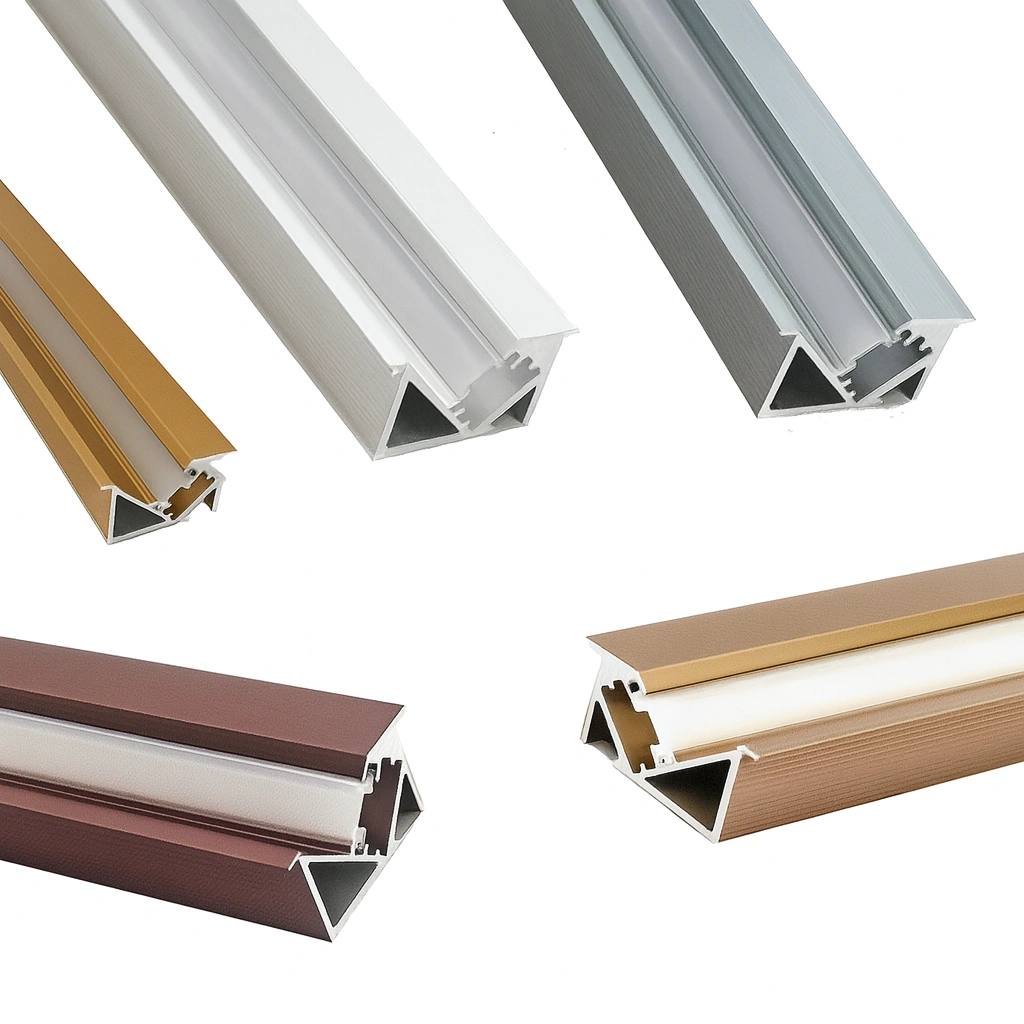

| Finish Colors | Black, Silver, Gray, Coffee, Bronze, Gold |

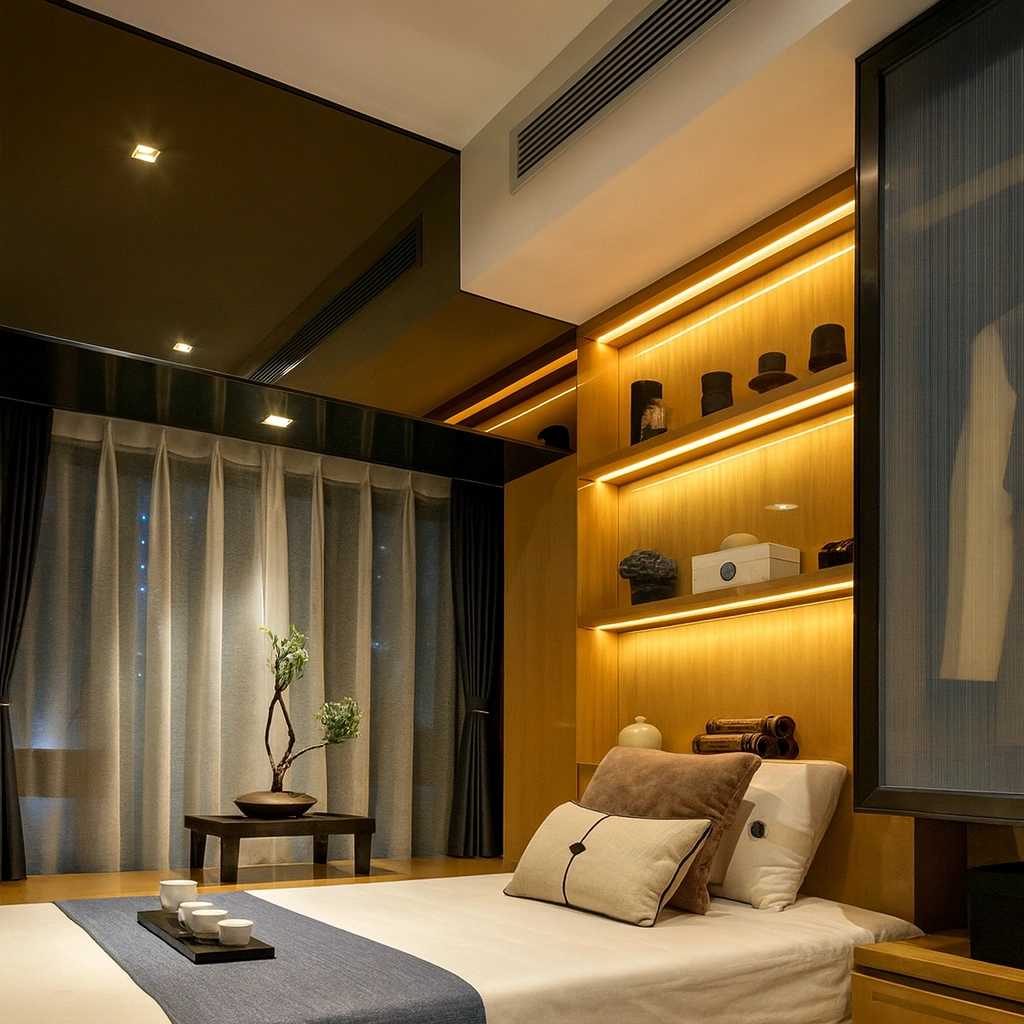

| Ideal Applications | Cabinets, Shelves, Closets, Display Niches, Accent Lighting Walls |

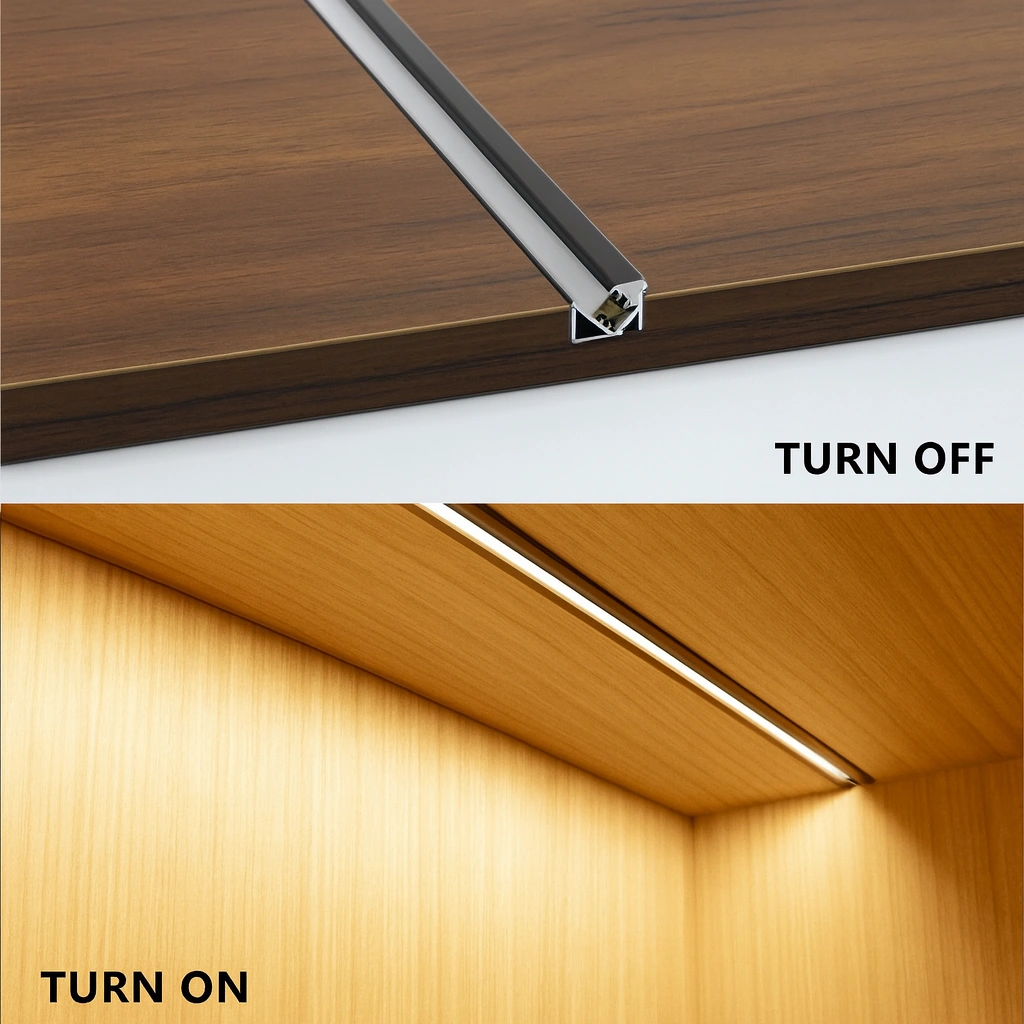

Route or groove the installation surface according to the selected profile size to ensure a flush fit.
Can be installed into wood, MDF, or drywall using adhesive or mounting clips (not included).
Cuttable aluminum channel—trim to custom lengths using a standard hacksaw or aluminum cutter.
Suitable for 5V, 12V, or 24V LED strip lights up to 6 mm (0.24″) in width.
Diffuser clicks securely into place after LED installation for a seamless, finished appearance.
