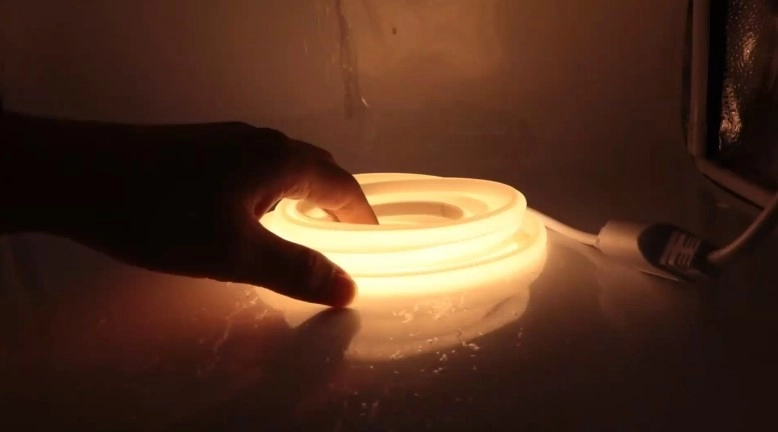

Transform ordinary LED tape into stunning continuous “neon” lines with this ultra-flexible silicone tube. Engineered for creative lighting designers, makers, and sign builders, each profile bends freely around tight radii without kinking, delivering a smooth, dot-free glow indoors or out (IP67). Choose from nine cross-sections—square, round, dome, side-emitting and more—to craft glowing text, furniture outlines, ceiling tracery, or architectural art. Just feed your 8–12 mm LED strip through the channel, glue the ends, and mount: no aluminum, no hotspots, pure neon-like elegance in any color. LED strip not included
Need pixel-free COB or RGB strip to pair? [CLICK HERE]
Specifications Table
| Feature | Detail |
|---|---|
| Material | Food-grade, UV-stable silicone |
| Protection | IP67 – dust-tight & water-jet resistant |
| Compatible Strip Width |
0.31″ – 0.47″ (8 – 12 mm) PCB |
| Profile Options |
0.39″ × 0.71″ (10 × 18 mm) • 0.51″ × 0.59″ (13 × 15 mm) • 0.47″ × 0.79″ (12 × 20 mm) • 0.63″ × 0.63″ (16 × 16 mm) • 0.79″ × 0.55″ (20 × 14 mm) • 0.39″ × 0.91″ (10 × 23 mm) • 0.79″ × 0.63″ (20 × 16 mm) • 0.47″ × 0.98″ (12 × 25 mm) • 0.79″ diameter ( 20 mm) |
| Lengths (cuttable) | 39.4″ | 78.7″ | 118.1″ | 157.5″ | 196.9″ |
| Beam | 120° soft, uniform neon effect |
| Min. Bend Radius | ≈ 40 mm (1.6″) depending on profile |
| Operating Temp. | -20 °C → +50 °C |

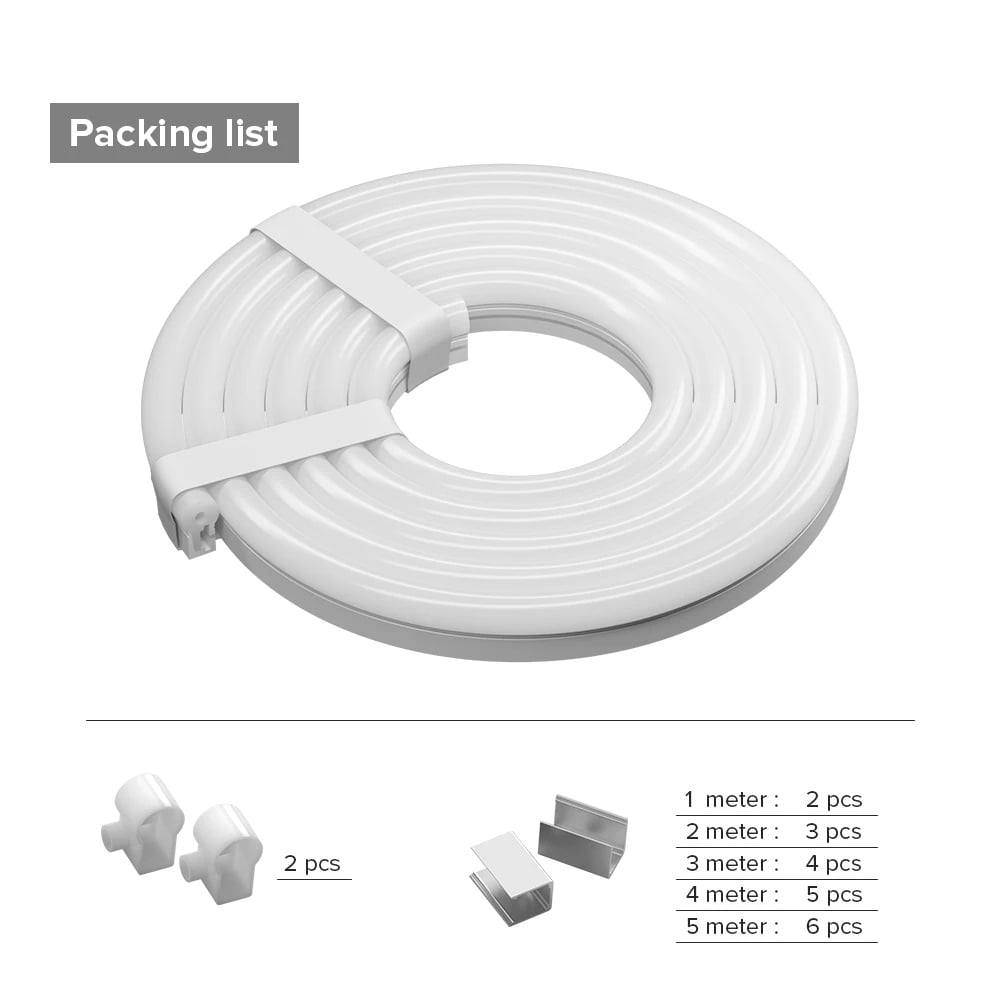

| Included | Tube roll, end-caps, mounting clips (qty varies with length) |

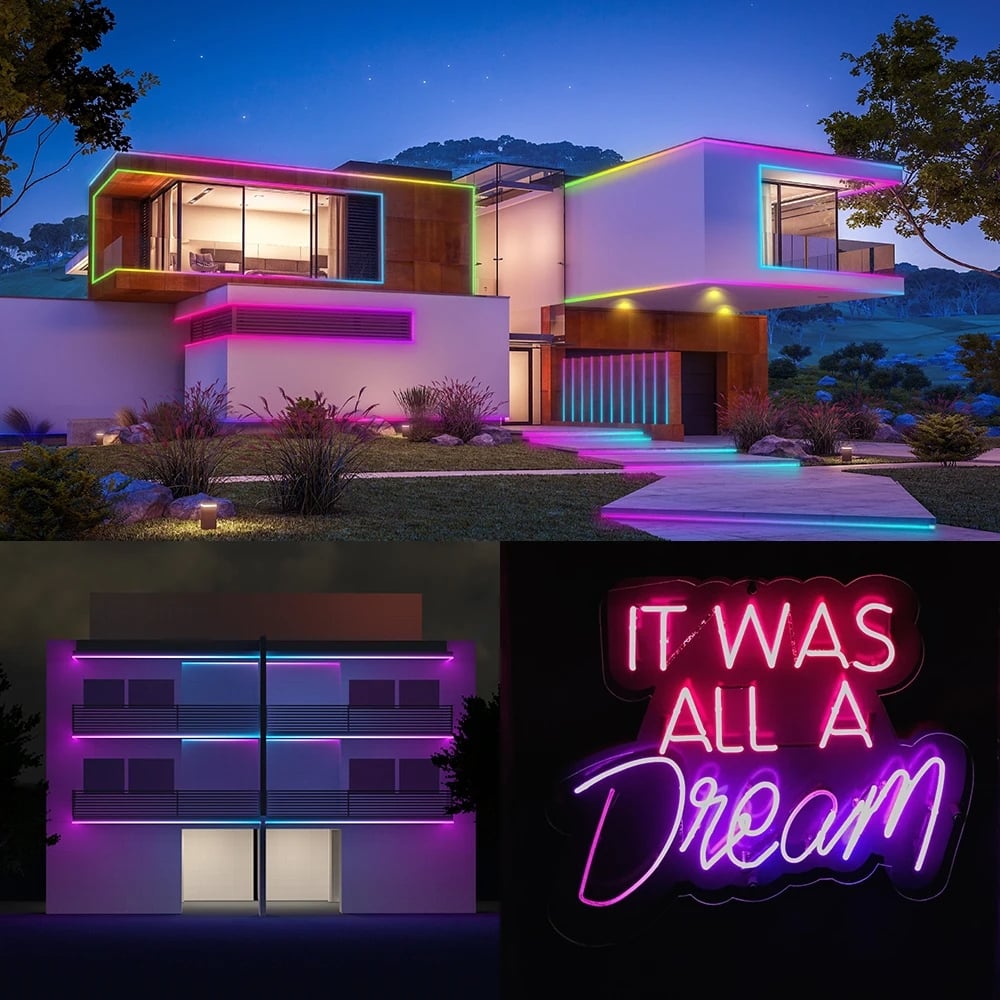

| Ideal Uses | Neon signs, logo outlines, gaming desks, bar shelving, event staging, building façades |

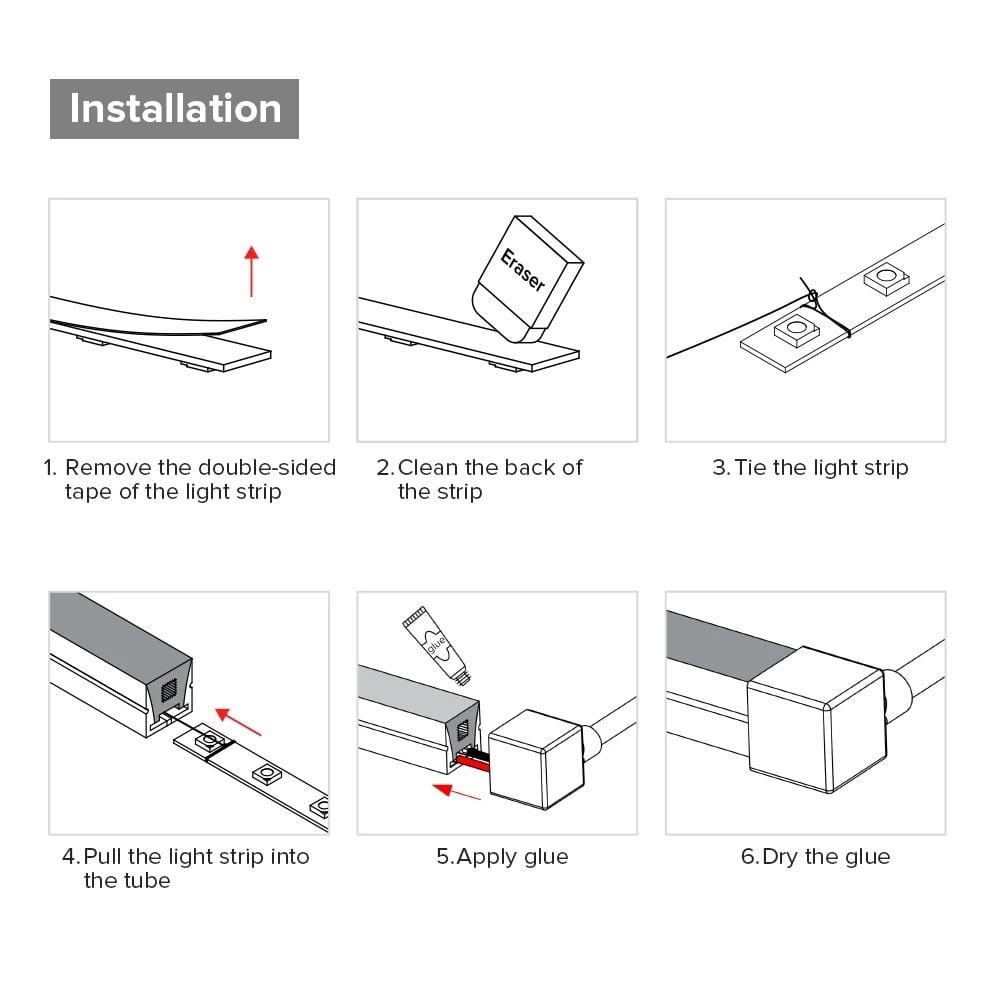

Installation Notes
Prep LED strip – remove backing tape (for low-friction feed) and clean with isopropyl alcohol.
Feed & position – push or gently pull the strip through the tube; use nylon string for long runs.
Seal ends – apply neutral-cure silicone to end-caps for full IP67 protection.
Power & mount – connect to 12 V/24 V driver; affix with supplied clips or clear construction adhesive.

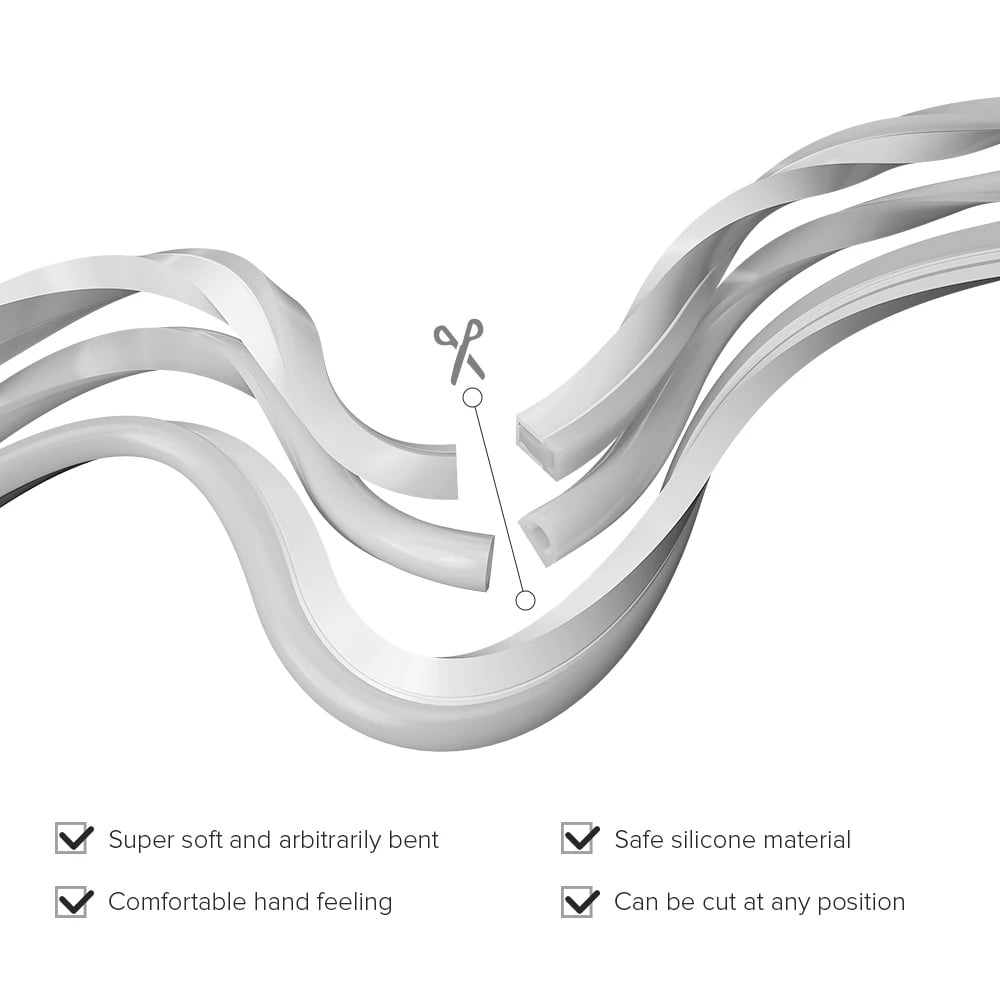

Shape your art – bend along curves or corners; cut only at LED cut-marks to maintain uniform brightness.
