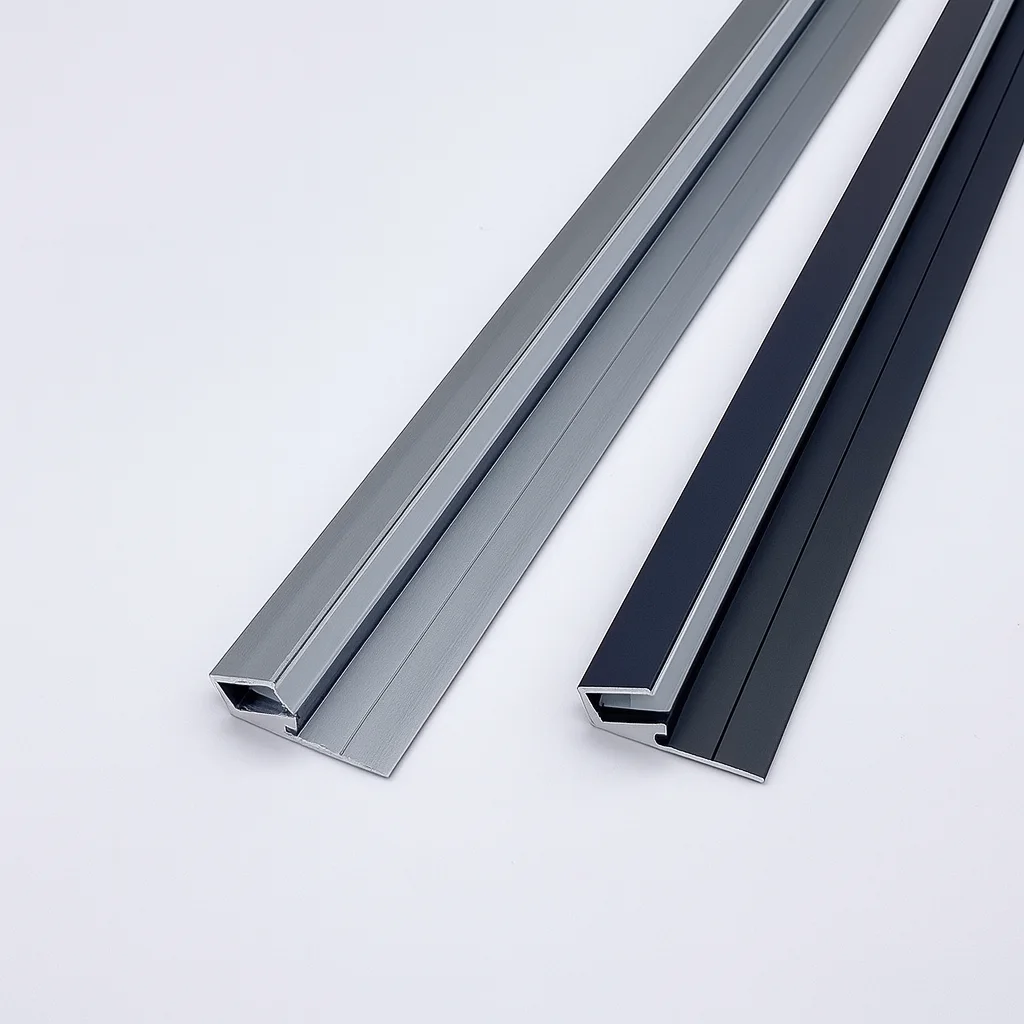

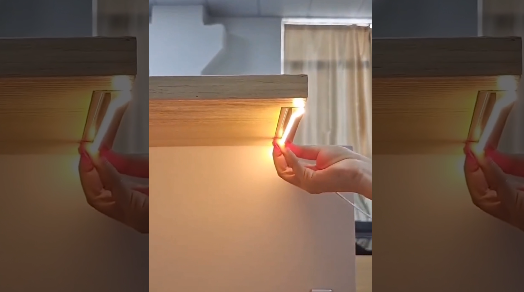

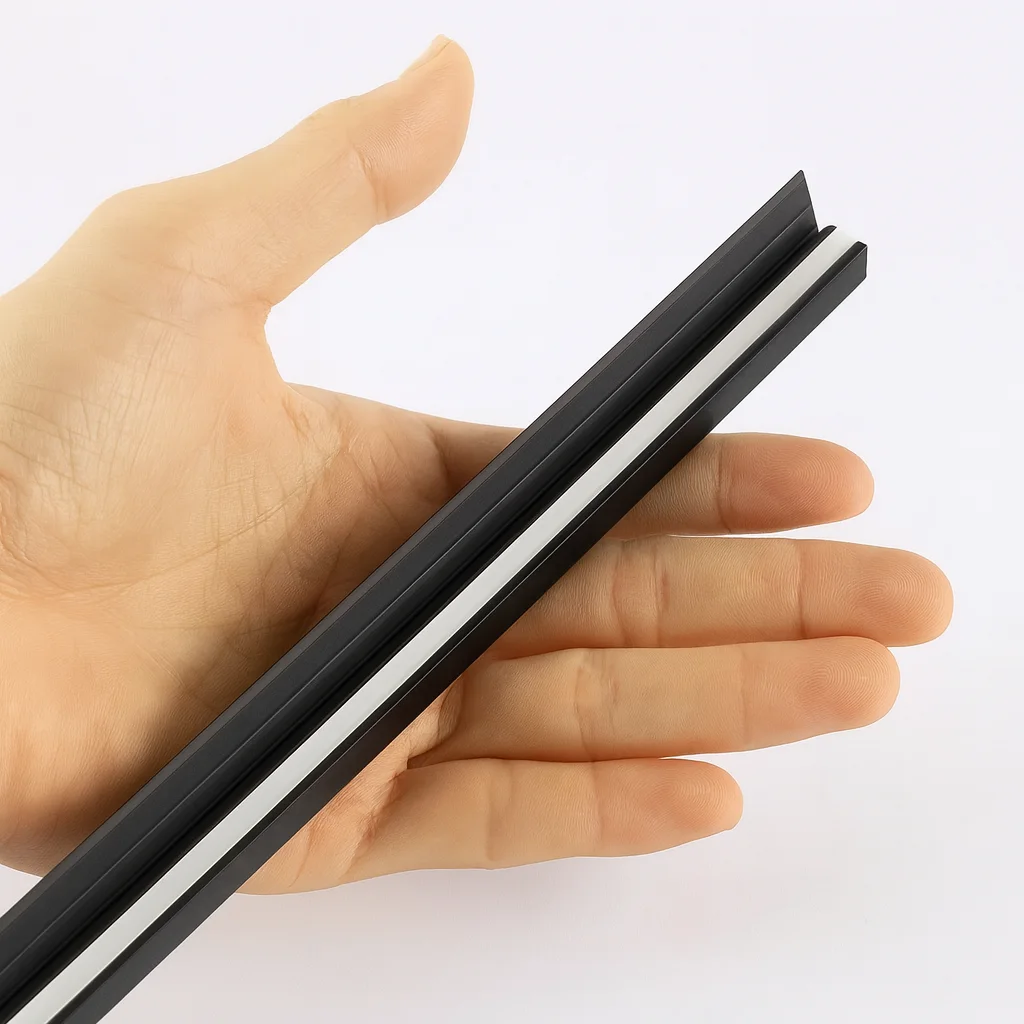

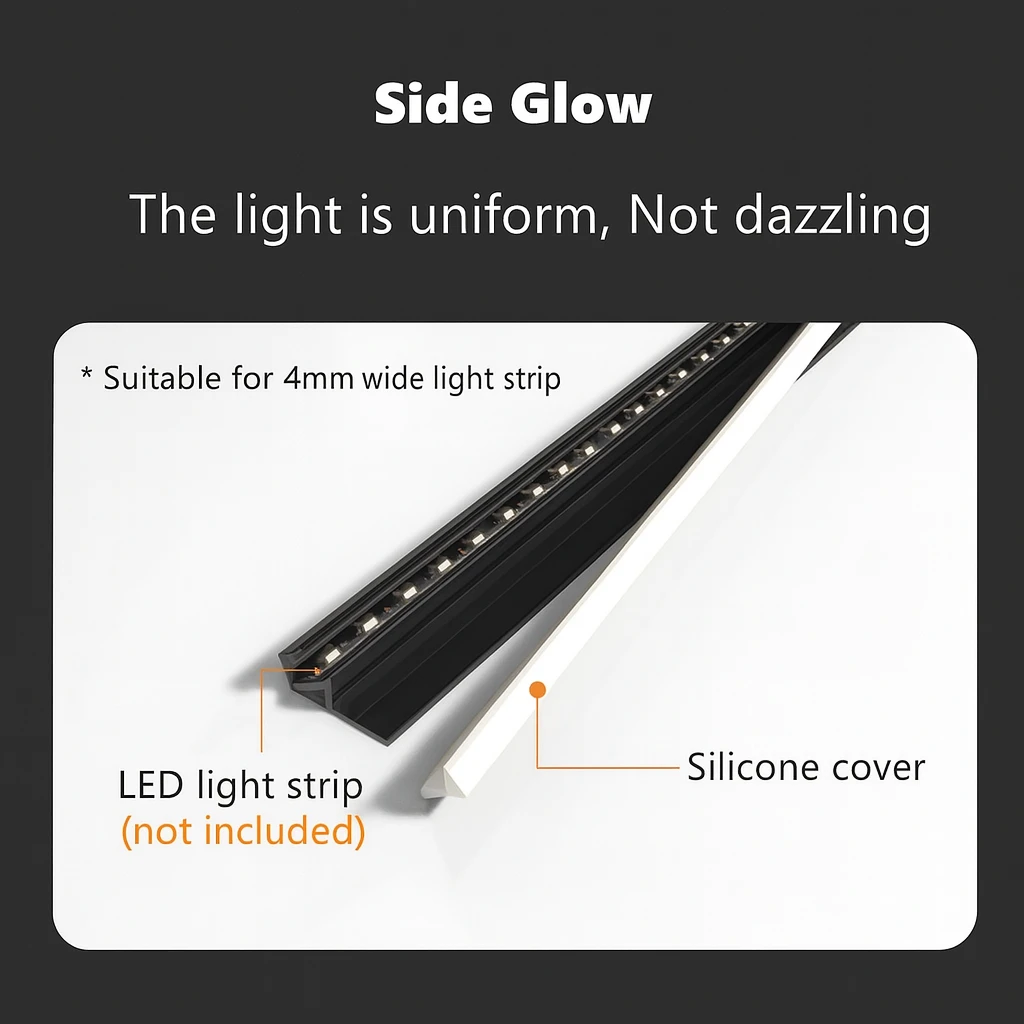

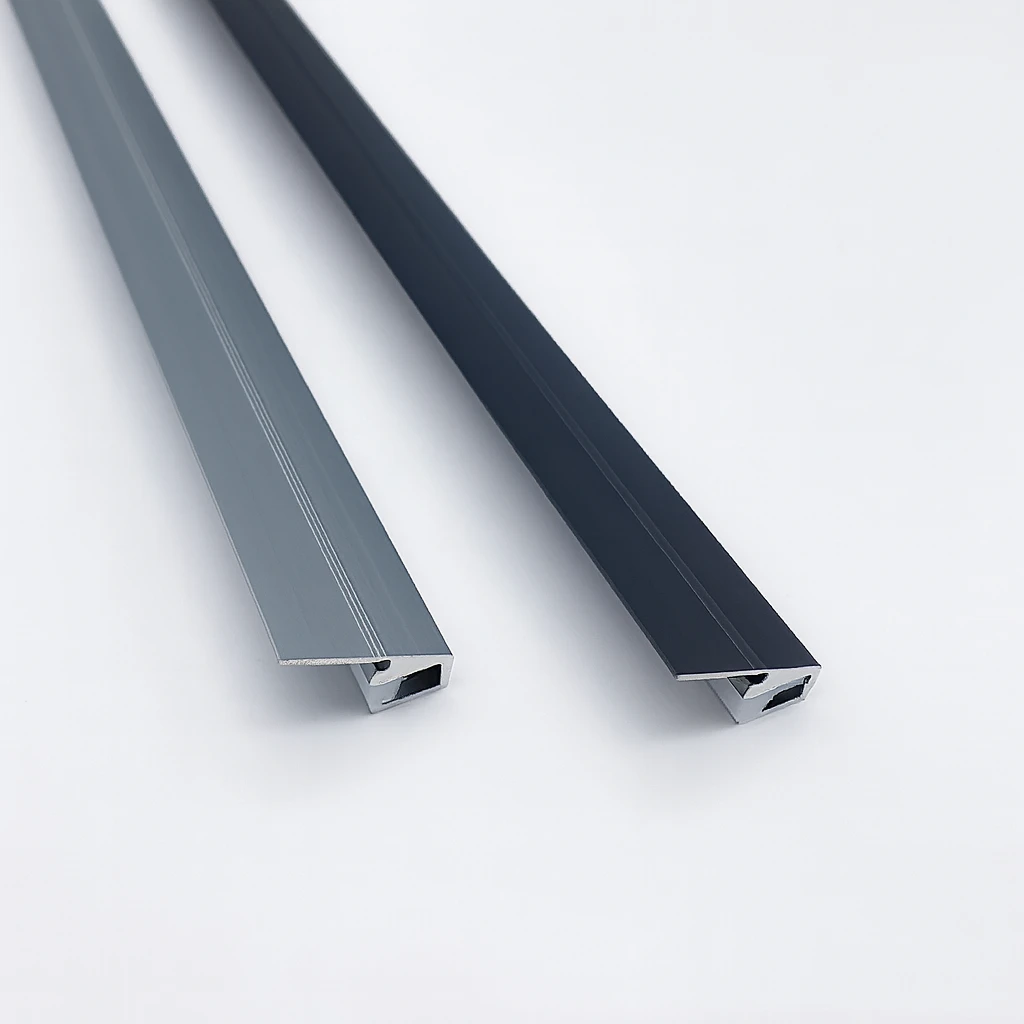

Upgrade your lighting with this ultra-thin 45-degree under-cabinet LED aluminum profile, designed for 4mm wide LED strips (not included). Its minimalist V-shape blends discreetly into any modern space, offering optimal angled illumination for kitchen cabinets, shelving, display areas, or workspaces. Made from durable 6063-T5 aluminum and finished with an anodized coating for corrosion resistance, this profile includes a high-quality silicone diffuser that ensures soft, uniform side glow without glare. The surface-mounted design supports both screw or 3M double-sided tape installation, making it fast and easy to apply in any environment. Available in Black and Gray finishes with multiple length options this corner LED channel is perfect for achieving clean, professional under-cabinet lighting. LED strip is not included.
To get recommended LED Strip lighting, [CLICK HERE]
Specifications Table:
| Feature | Detail |
|---|---|
| Material | 6063-T5 Aluminum + Silicone Cover |
| Finish | Anodized |
| Light Source Compatibility |
Fits 0.16″ wide LED strip (4 mm wide, LED not included) |
| Mount Type | Surface-Mounted (Screw or 3M Tape) |

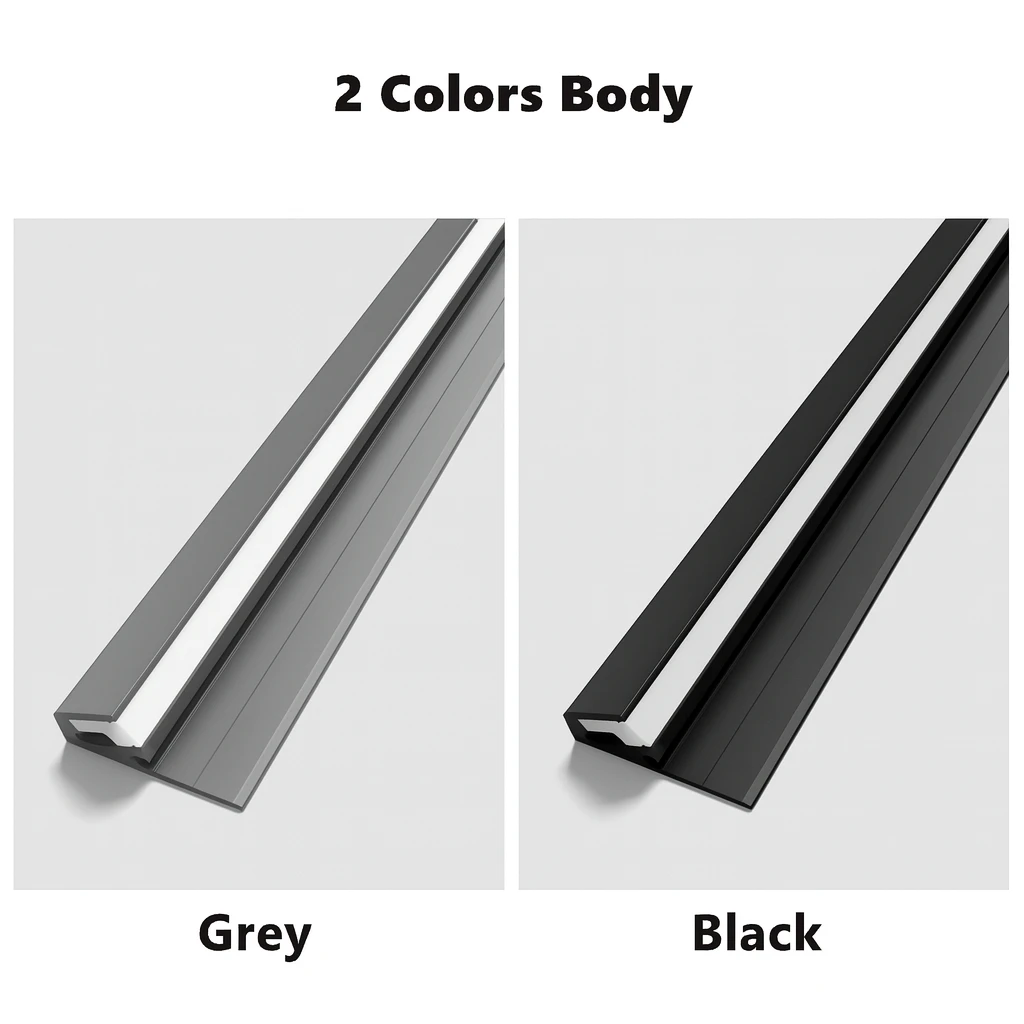

| Available Colors | Black, Gray |
| Length Options | 11.81″ (30cm) , 15.75″ (40cm) , 19.69″ (50cm) , 23.62″ (60cm) , 27.56″ (70cm) , 31.50″ (80cm) , 35.43″ (90cm) , 39.37″ (100cm) , 43.31″ (110cm) , 47.24″ (120cm) , 51.18″ (130cm) , 55.12″ (140cm) , 59.06″ (150cm) , 63″ (160cm) , 68″ (173cm) , 73″ (185cm) , 79″ (200cm) |
| Channel Size |
0.71″ × 0.35″ (18 mm × 9 mm) |
Installation Guide:
Choose Installation Method: Decide between screw fixing (for permanent mount) or 3M tape (for non-invasive mount).
Clean the Surface: Ensure the mounting surface is clean and dry.
Mount the Profile: Attach using screws or 3M double-sided adhesive tape.
Insert LED Strip: Peel backing off the LED strip and apply it into the channel.
Cover with Diffuser: Snap in the silicone diffuser for a clean, finished look.
