Model number: ACL-020
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $39.00.$29.00Current price is: $29.00.
$19.00
$9.00
Original price was: $39.00.$19.00Current price is: $19.00.
Original price was: $24.99.$14.99Current price is: $14.99.
Original price was: $19.00.$9.00Current price is: $9.00.

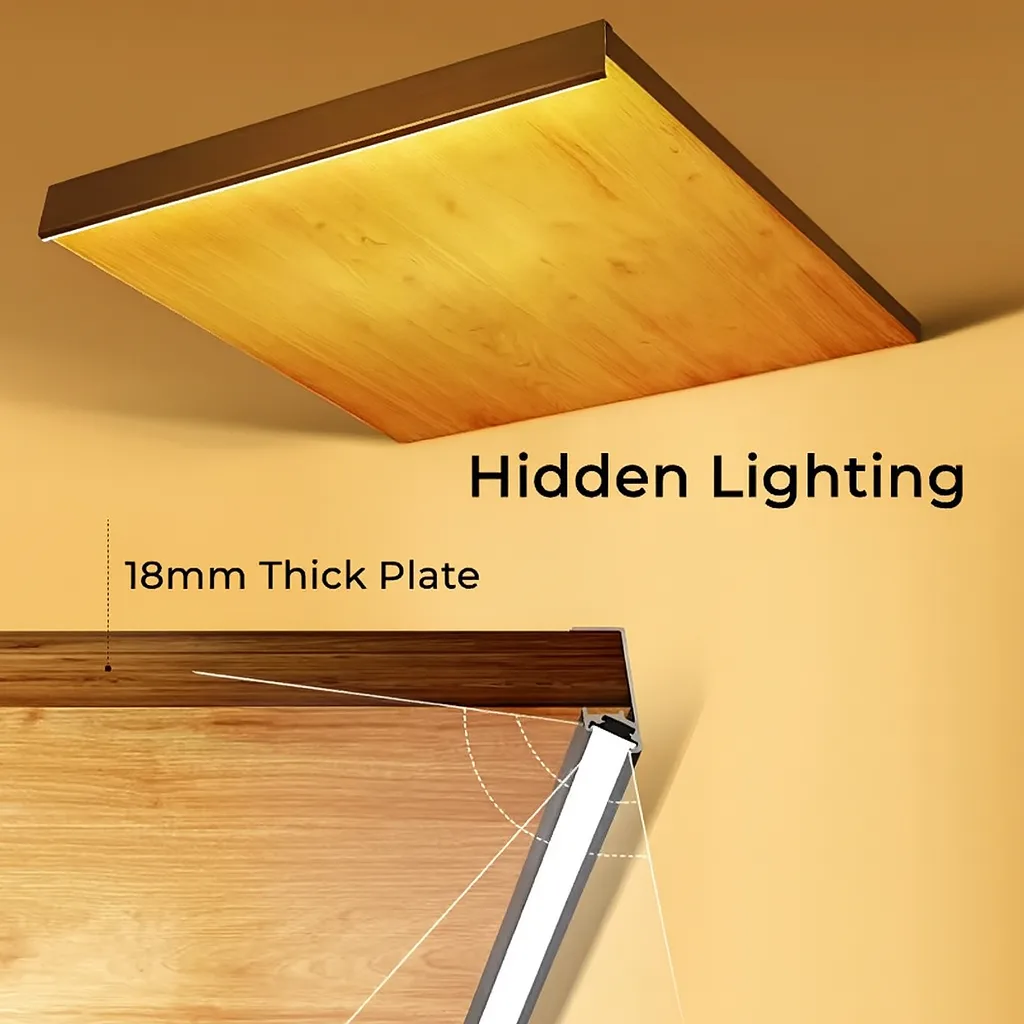

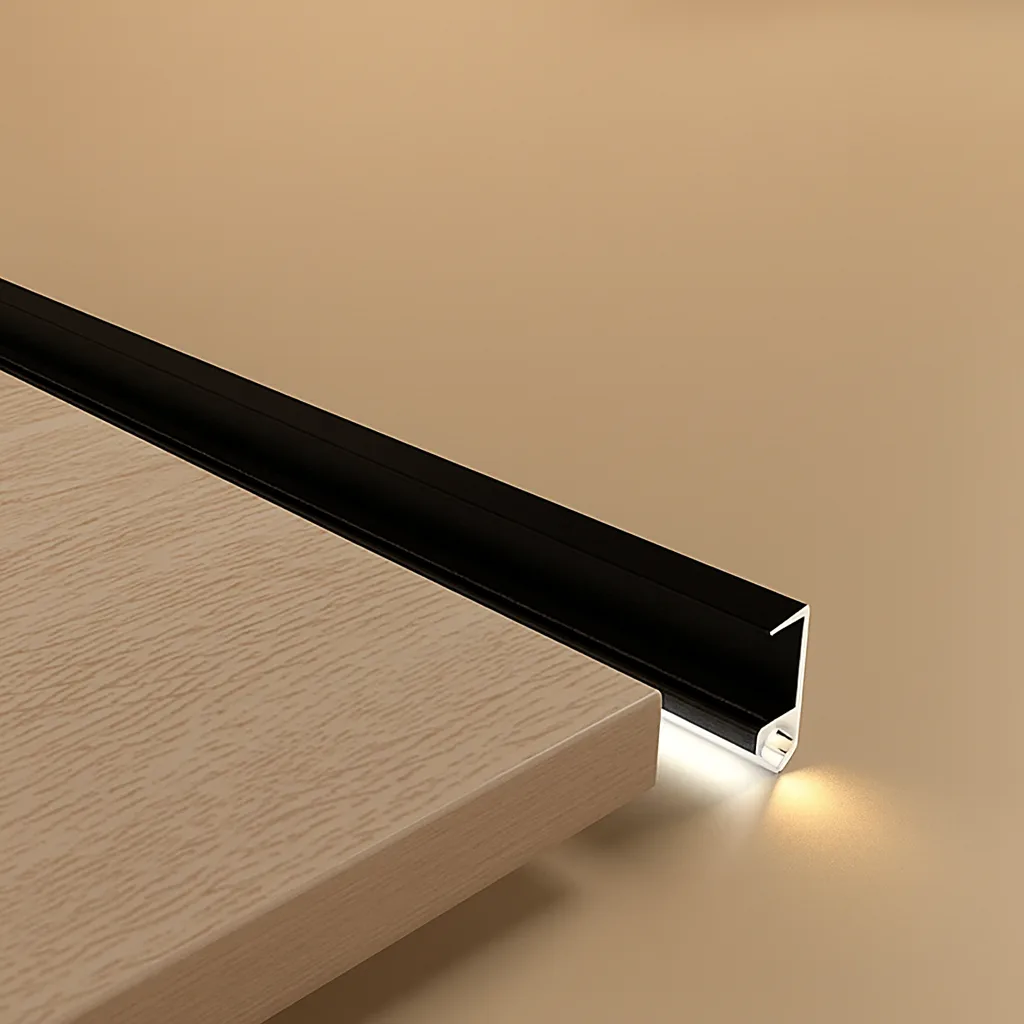

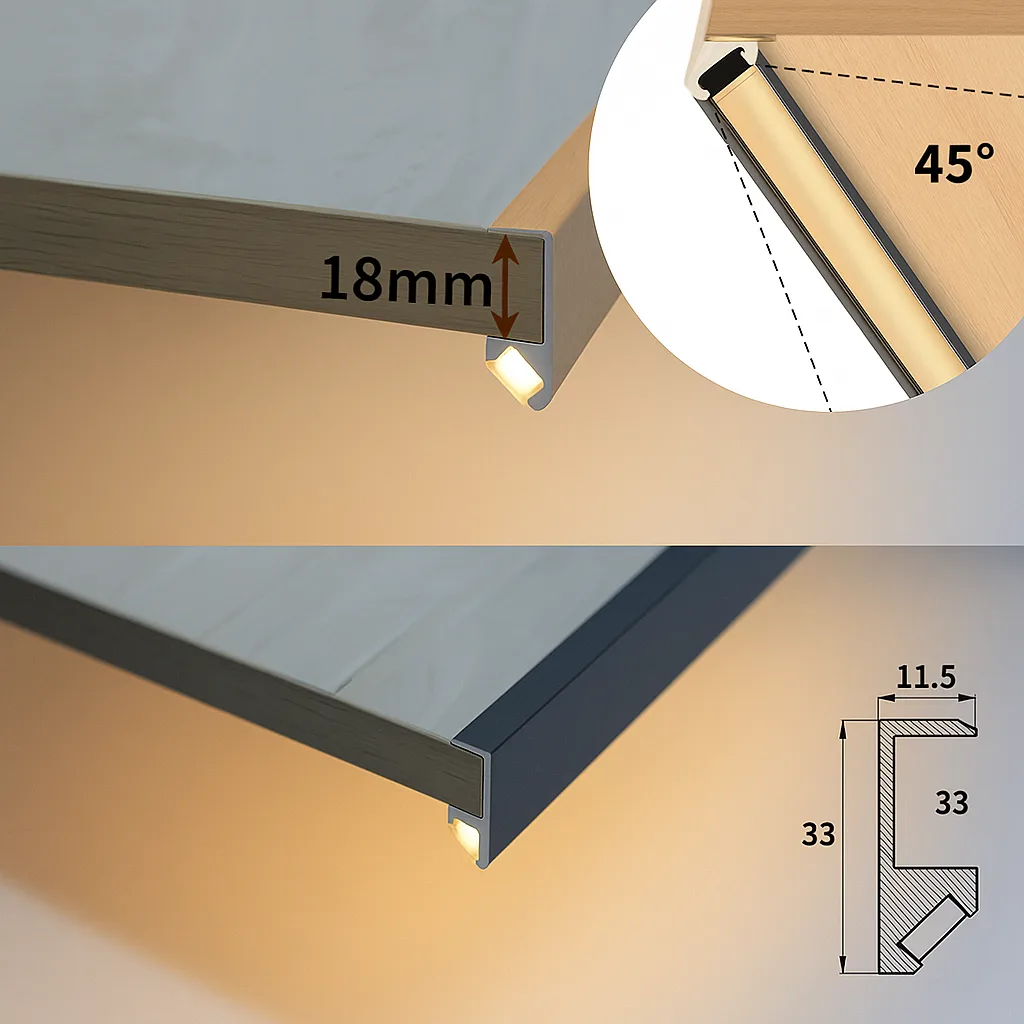

Deliver a clean, professional “floating shelf” glow with this architect-grade 45° angled LED aluminum channel. The L-profile slips over 18 mm (0.71 in) cabinet or shelf edges and aims light at a precise 45° to wash backsplashes, countertops, and wall junctions without glare. Rigid 6063 extruded aluminum doubles as a heat sink to extend LED life, while the snap-in milky diffuser softens output and protects the tape from dust and impact. Ideal for kitchens, wardrobes, display cases, reception desks, and retail millwork where you need a hidden, continuous line of light and a fast, surface-mount install. LED strip NOT included.
To get recommended LED Strip lighting, (CLICK HERE)
Specifications
| Feature | Detail |
|---|---|
| Material | 6063 extruded aluminum, anodized |
| Diffuser | Milky snap-in PC (polycarbonate), dot-softening |

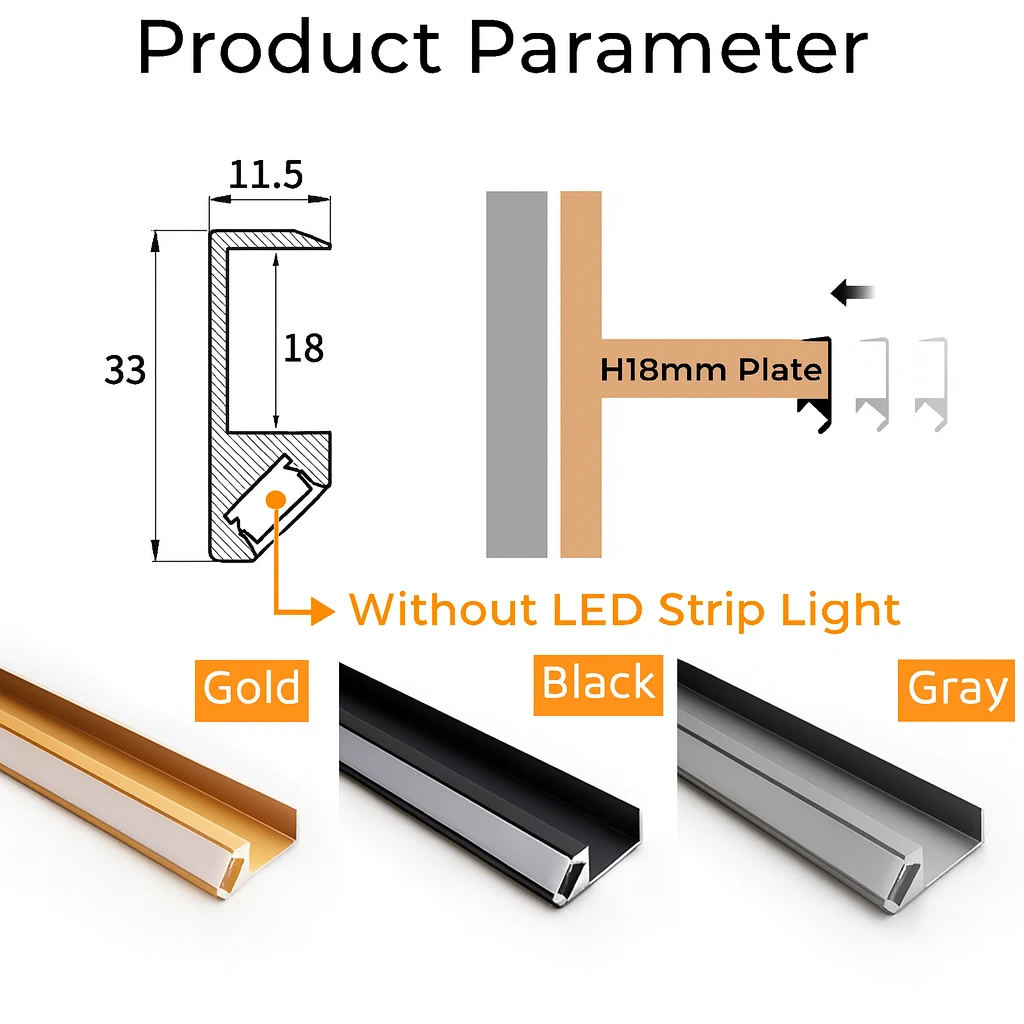

| Finish Colors | Black, Gray, Gold |
| Profile Type | 45° angled edge-mount (L-profile) |

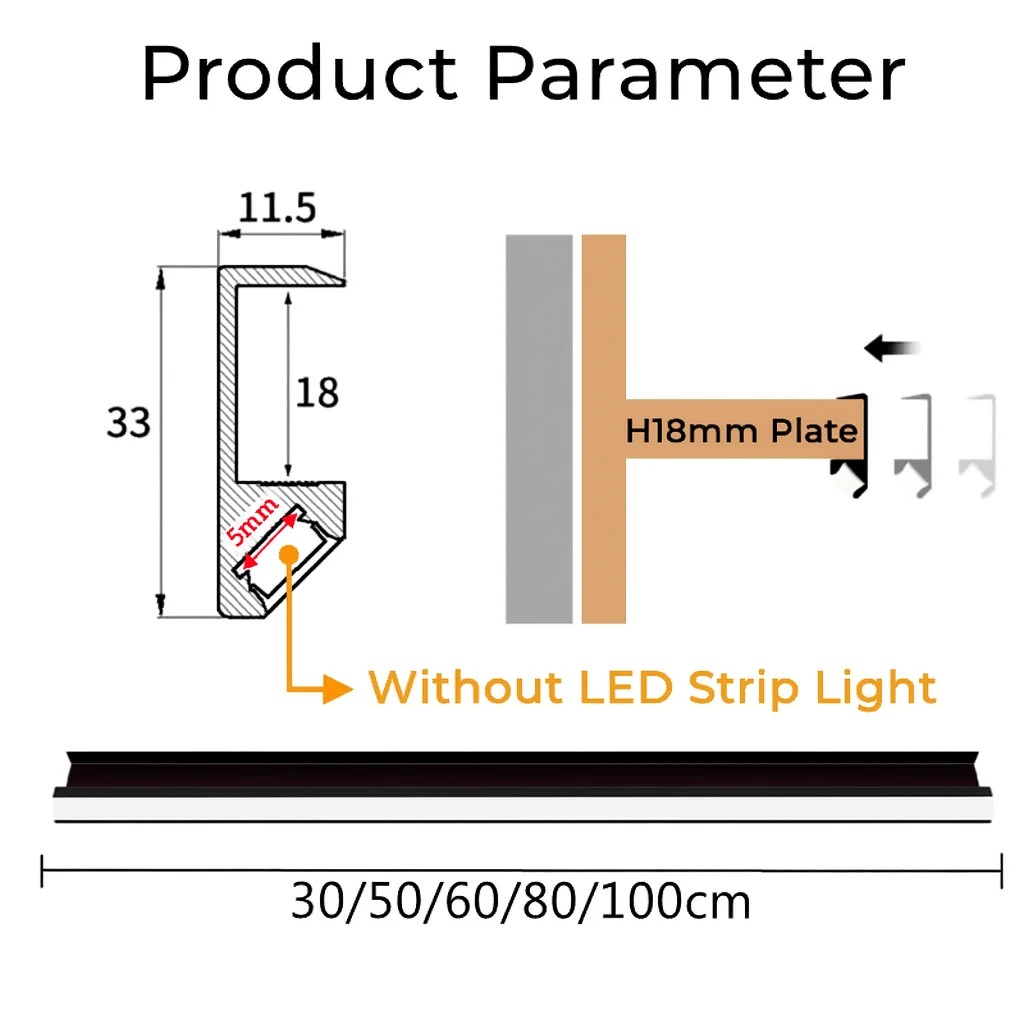

| Panel Compatibility | Designed for 18 mm boards (0.71 in) |

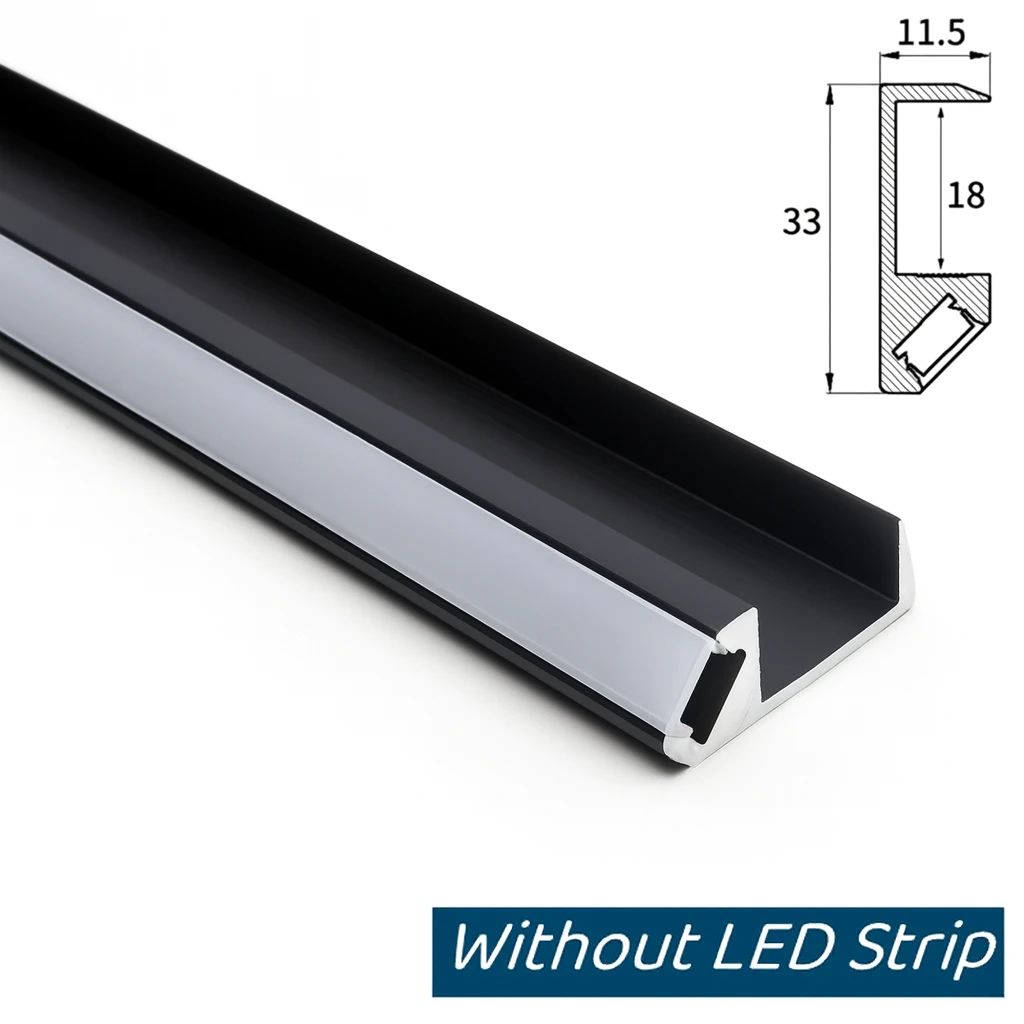

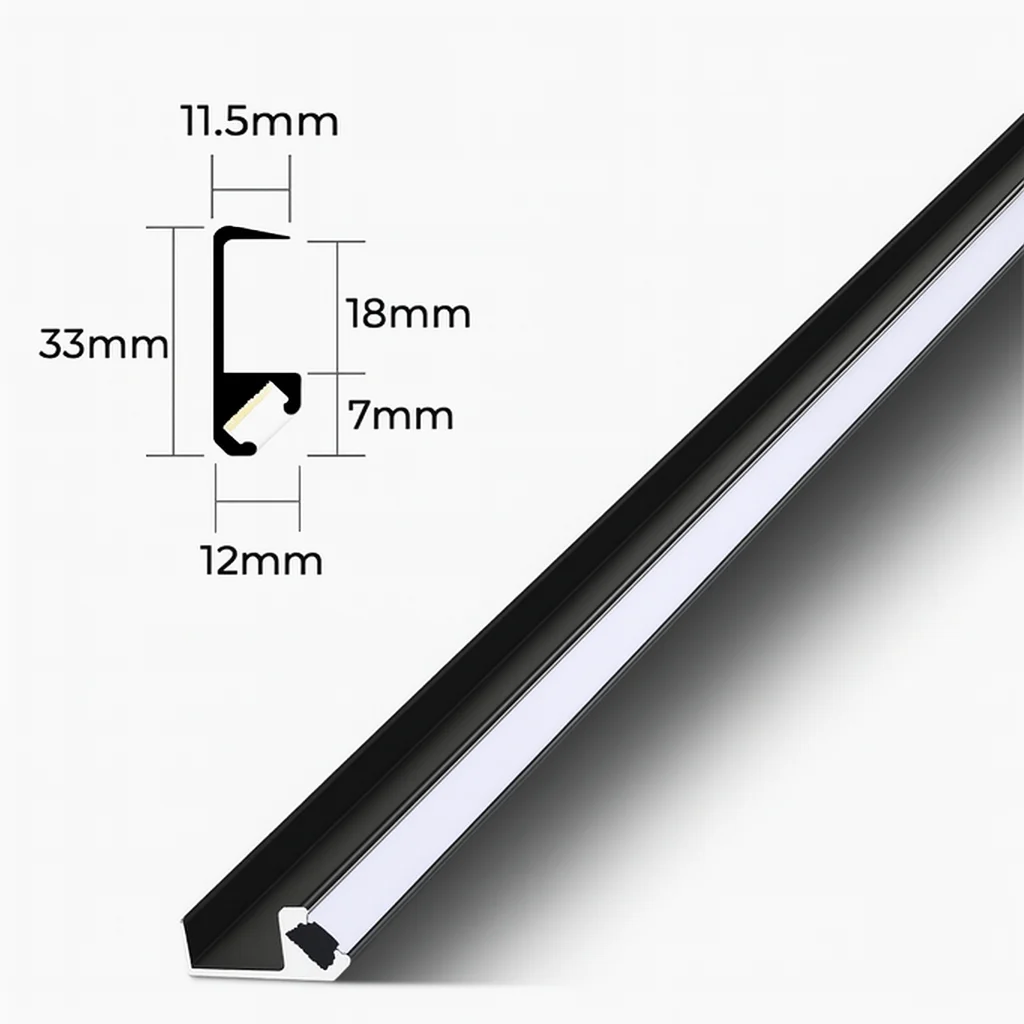

| Overall Height | 33 mm (1.30 in) |
| Front Lip | 11.5 mm (0.45 in) cover |
| Base Width | 12 mm (0.47 in) |
| LED Tray Depth | ~7 mm (0.28 in) |
| LED Compatibility | ≤5 mm PCB/tape (mini COB or 2835/3528 narrow) |
| Beam Angle | 45° forward wash |

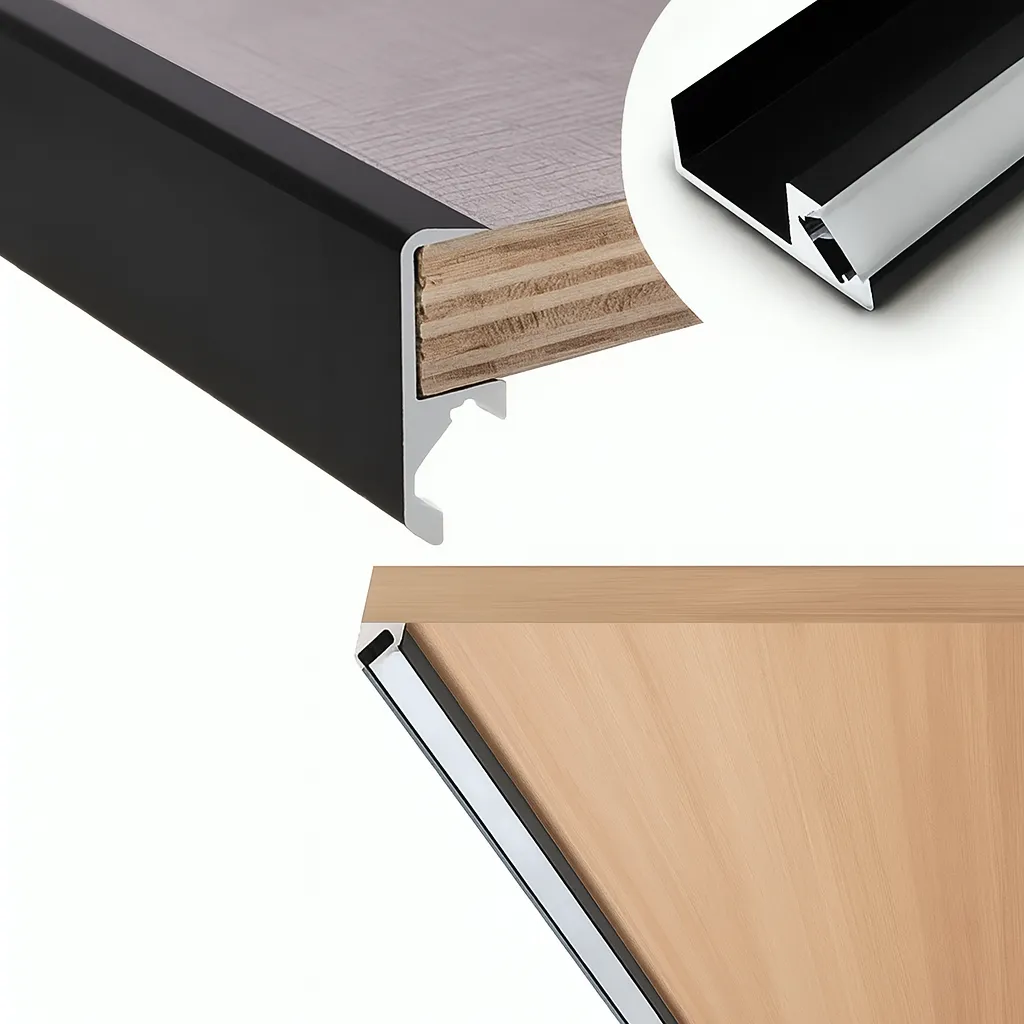

| Mounting | Edge/surface-mount on 18 mm panel; construction adhesive and/or micro screws |
| Length Options | 11.81″ (30cm) , 15.75″ (40cm) , 19.69″ (50cm) , 23.62″ (60cm) , 27.56″ (70cm) , 31.50″ (80cm) , 35.43″ (90cm) , 39.37″ (100cm) , 43.31″ (110cm) , 47.24″ (120cm) , 51.18″ (130cm) , 55.12″ (140cm) , 59.06″ (150cm) , 63″ (160cm) , 68″ (173cm) , 73″ (185cm) , 79″ (200cm) |
| Power | 12/24 V DC low-voltage system (driver not included) |
| Thermal Management | Full-length aluminum heat sink for LED longevity |
| Typical Applications | Under-shelf edge lighting, wardrobe rails, display cases, wall junction reveals, reception desks |
| What’s Not Included | LED strip, power supply/driver, dimmer, wiring, mounting adhesive/screws |
Installation Notes
Plan & Measure – Confirm 18 mm panel thickness and choose lengths; plan driver feed points.
Cut & Prep – Trim the profile to size; deburr ends. Clean the mounting edge of the panel.
Adhere LED Tape – Install ≤5 mm high-density tape into the angled tray; pull low-voltage leads.
Mount the Profile – Slide/seat the L-profile on the panel edge; fix with construction adhesive and, if desired, discreet micro screws (pre-drill).
Snap the Diffuser – Press the milky cover in evenly for a continuous, glare-free line.
Power & Test – Connect to a compatible 12/24 V DC driver/dimmer and test for uniformity.
