Model number: ACL-031

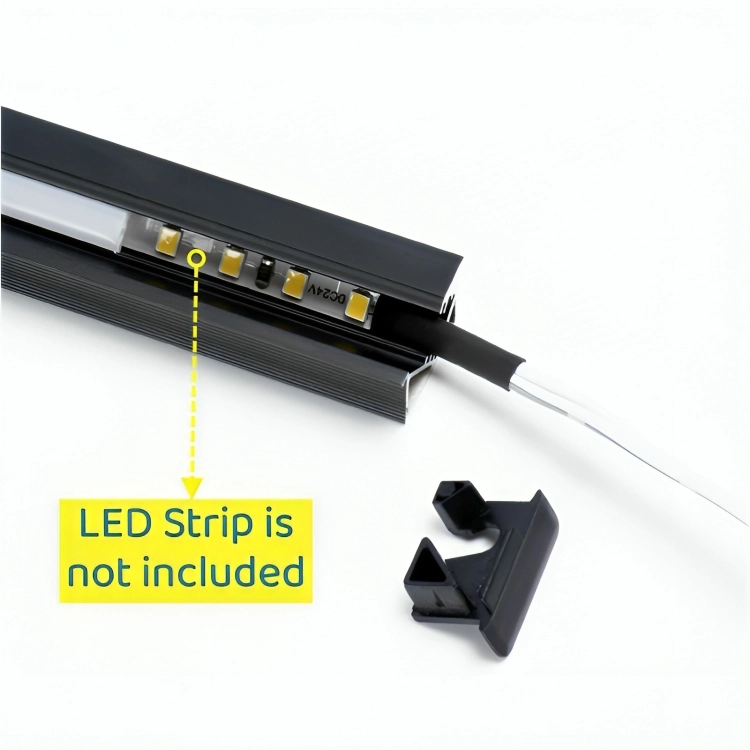

This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
$9.00
Original price was: $24.00.$14.00Current price is: $14.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.

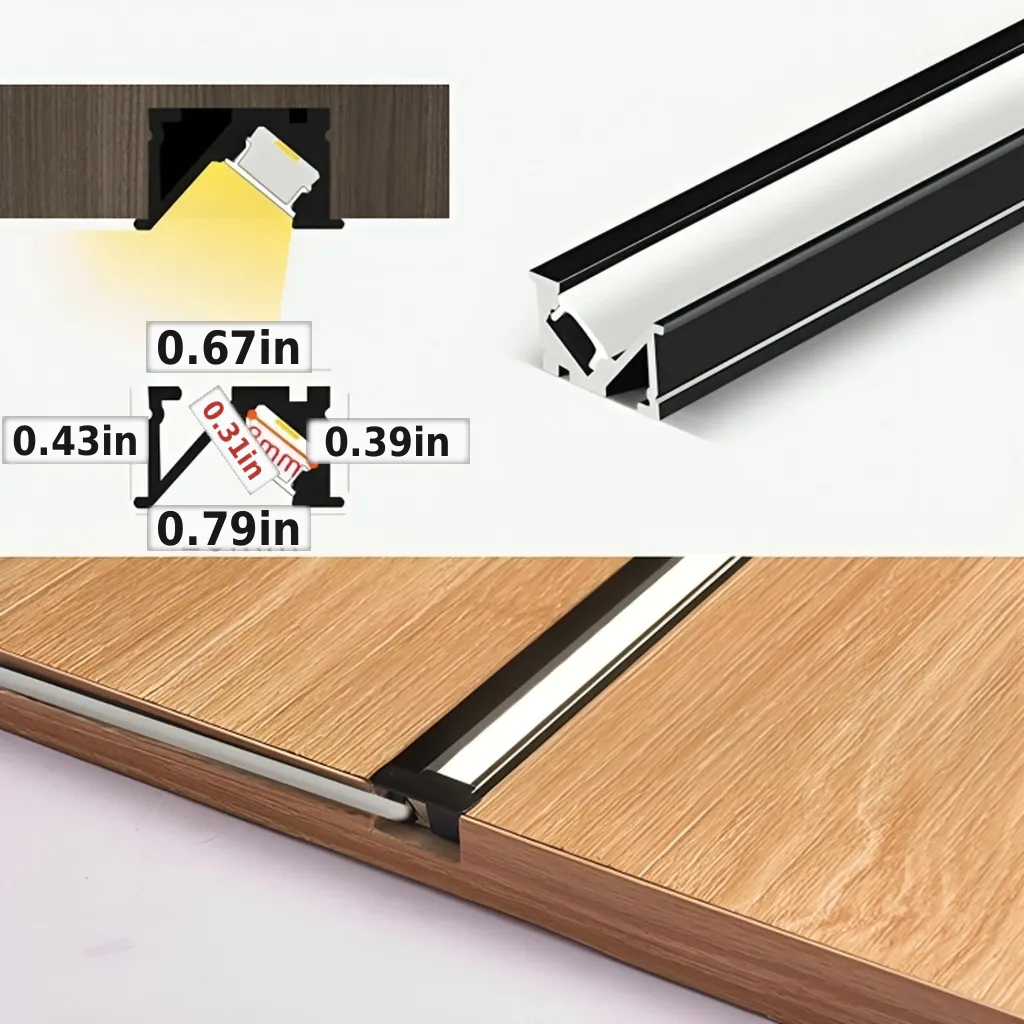

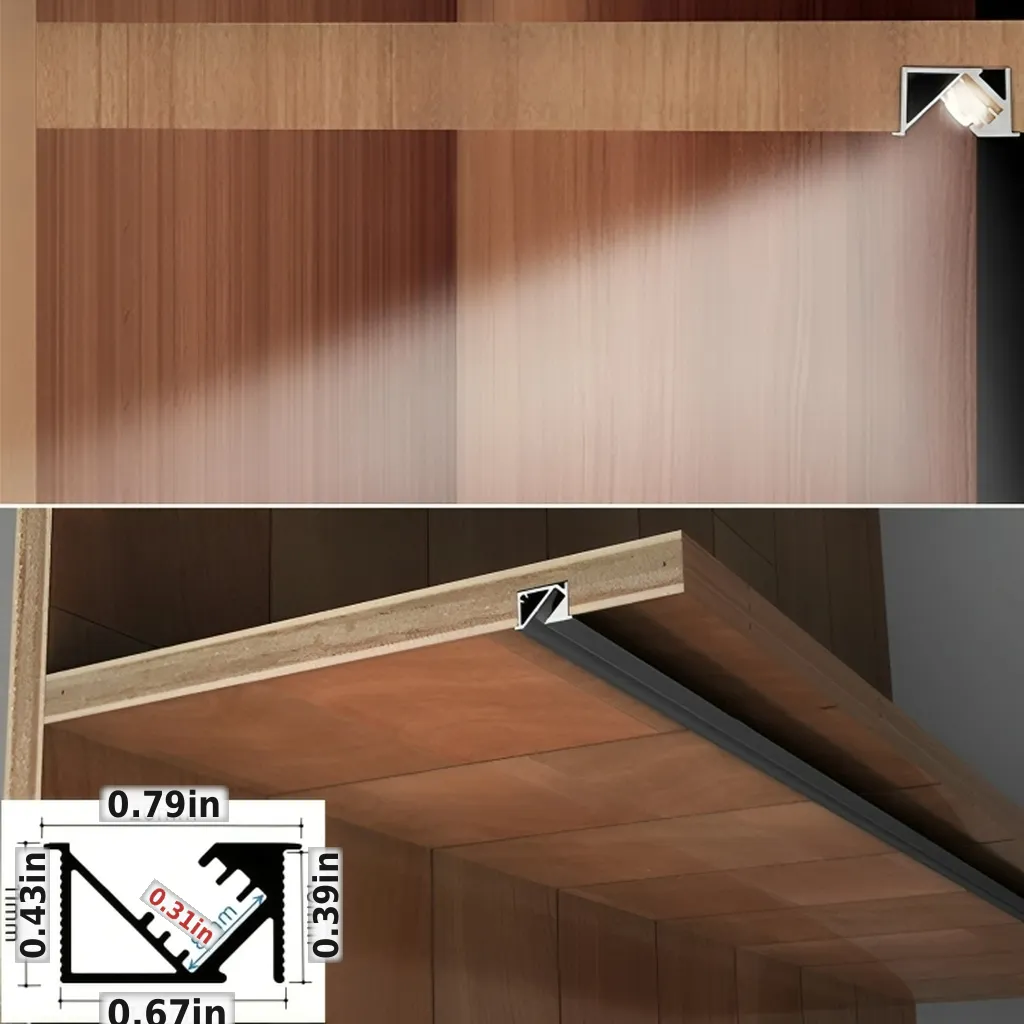

Add a razor-sharp “knife-edge” of light to shelves, baseboards or wardrobe facias—without bulky fixtures. This Y-profile aluminum trim embeds flush into wood, MDF or drywall, tilting the LED strip at 45 ° to wash doors, books or décor with a soft, shadow-free glow. A snap-in milky lens hides dots and protects the tape, while the anodized body wicks heat away for longer strip life. Choose black, silver, gold, gray, coffee or bronze to match hinges and pulls, then simply rout a 0.79″ (W) × 0.43″ groove, press in the trim and click on the diffuser. Architectural accent lighting, done. LED strip not included.
Need a LED strip for pixel-free output? [CLICK HERE]
Specifications Table
| Feature | Detail |
|---|---|
| Material | 6063-T5 anodized aluminum + milky PC lens |
| Body Finishes | Black • Silver • Gold • Gray • Coffee • Bronze |
| Profile Shape | Y-shape, 45 ° beam |
| Outer Size |
0.79″ (W) × 0.43″ (H) (20 mm × 11 mm) |
| LED Slot | Fits ≤ 6 mm PCB |
| Lengths | 11.81″ (30cm) , 15.75″ (40cm) , 19.69″ (50cm) , 23.62″ (60cm) , 27.56″ (70cm) , 31.50″ (80cm) , 35.43″ (90cm) , 39.37″ (100cm) , 43.31″ (110cm) , 47.24″ (120cm) , 51.18″ (130cm) , 55.12″ (140cm) , 59.06″ (150cm) , 63″ (160cm) , 68″ (173cm) , 73″ (185cm) , 79″ (200cm) |
| Beam Angle | Fixed 45 ° oblique wash |
| Operating Temp. | –20 °C → +45 °C |

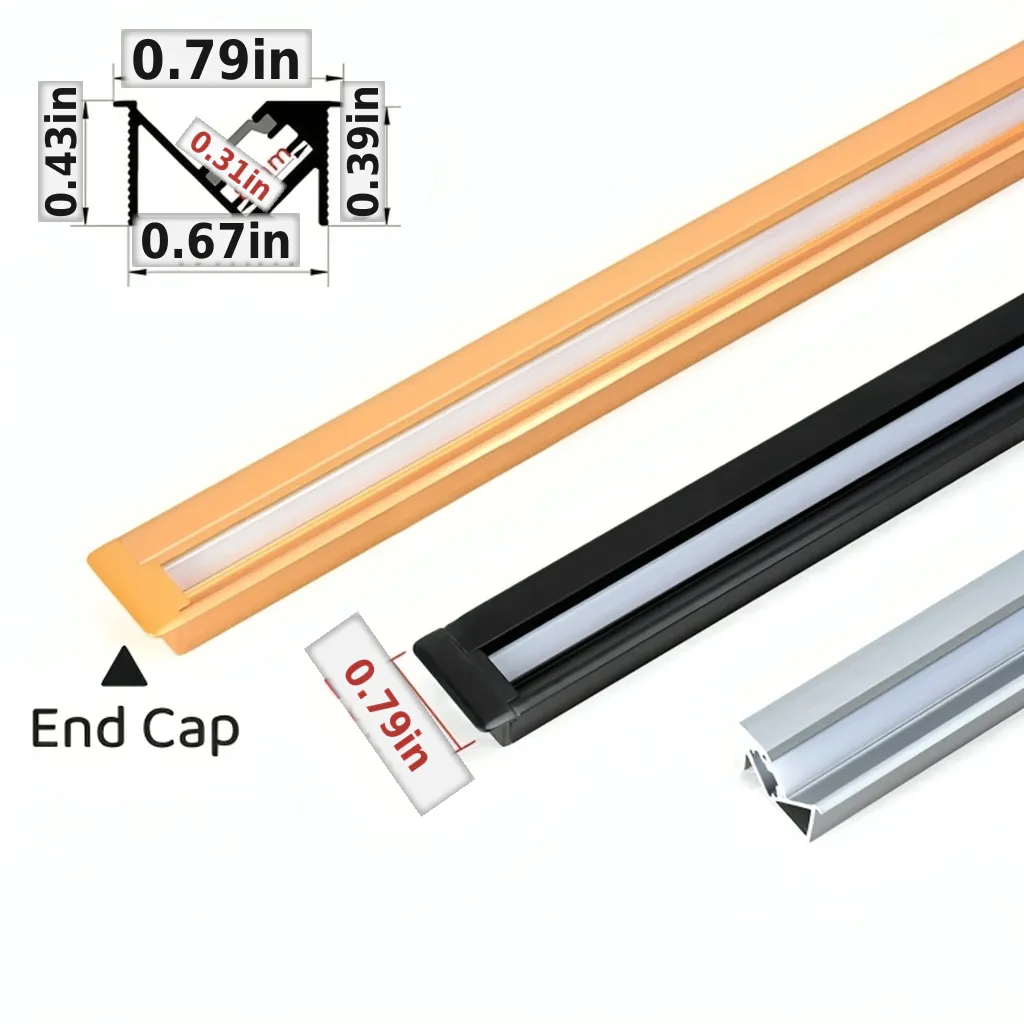

| Included | Trim channel, snap lens, 2 × end caps |
| Ideal Uses | Bookshelves, wardrobes, toe-kicks, stair treads, showcase edges |
Installation Notes
Cut the groove – route a 20 × 11 mm ( 0.79 x 0.43 inch )channel in wood or gypsum.
Dry-fit & wire – test LED tape, solder leads, clean slot with isopropyl.
Bond the trim – press channel into groove with construction adhesive or brads.
Apply LED tape – peel backing and adhere along the internal 45 ° pad.
Snap diffuser – start at one end and work along for a seamless finish.
Seal ends – push on end caps; silicone if in damp areas.
Power up – connect to 12 V/24 V driver; pair with door sensor for auto-on cupboards.
