Model number: ACL-025
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $24.00.$14.00Current price is: $14.00.
$9.00
Original price was: $24.99.$14.99Current price is: $14.99.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $22.99.$12.99Current price is: $12.99.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Create invisible, glare-free task lighting in cabinetry, shelving and retail displays with this slim 45-degree recessed aluminum channel. Once let into wood or drywall, the V-shaped profile sits flush and throws a clean, diagonal beam that highlights contents without revealing the LED tape. Anodized aluminum acts as a heatsink to maximise strip life, while the snap-in silicone diffuser turns pin-points into a soft, even wash. Available in matt black or architectural gray, the channel accepts any 5–6 mm wide LED strip—perfect for ultra-thin COB, dot-free tape. Pair it with a door-activated sensor or hand-wave switch for touch-free illumination every time you open a cabinet. LED strip not included.
Need compatible LED strips? [CLICK HERE]
Built to last — every under cabinet lighting channel comes with our 5-Year Warranty, ensuring peace of mind and reliable performance for years to come
Specifications Table
| Feature | Detail |
|---|---|

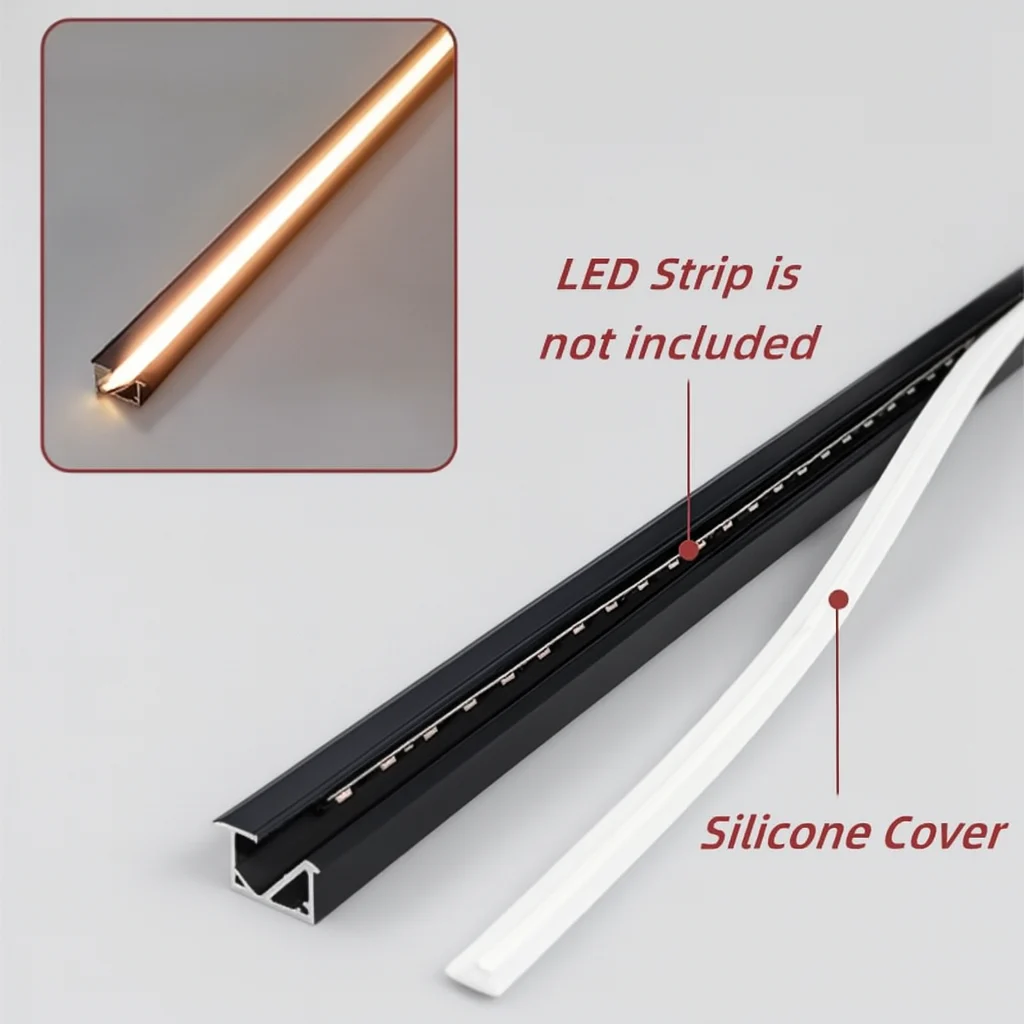

| Material | Anodized aluminum body + snap-in silicone diffuser |

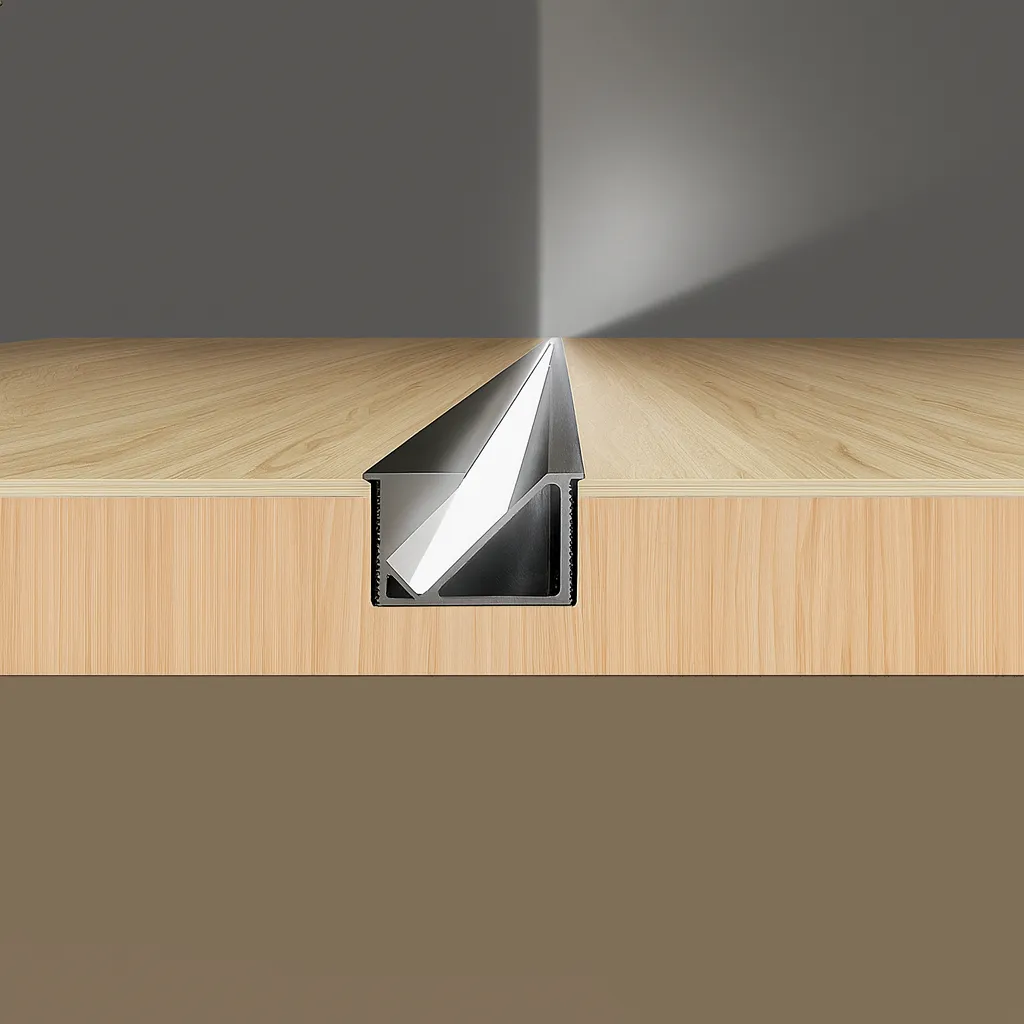

| Mounting | Recessed / built-in – 45° angled output |

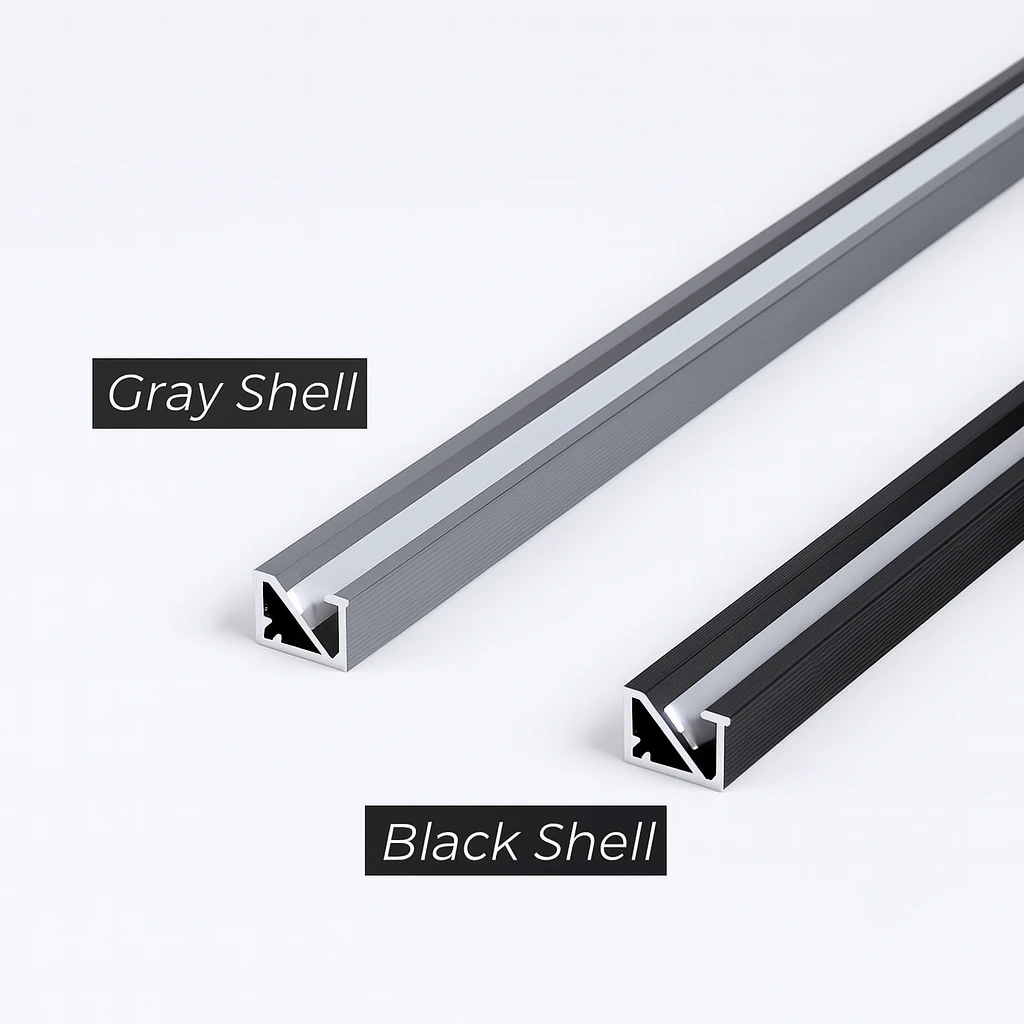

| Finish Colors | Black shell • Gray shell |
| Inner LED Slot |
0.23″ (5.9 mm, fits 5–6 mm PCB) |

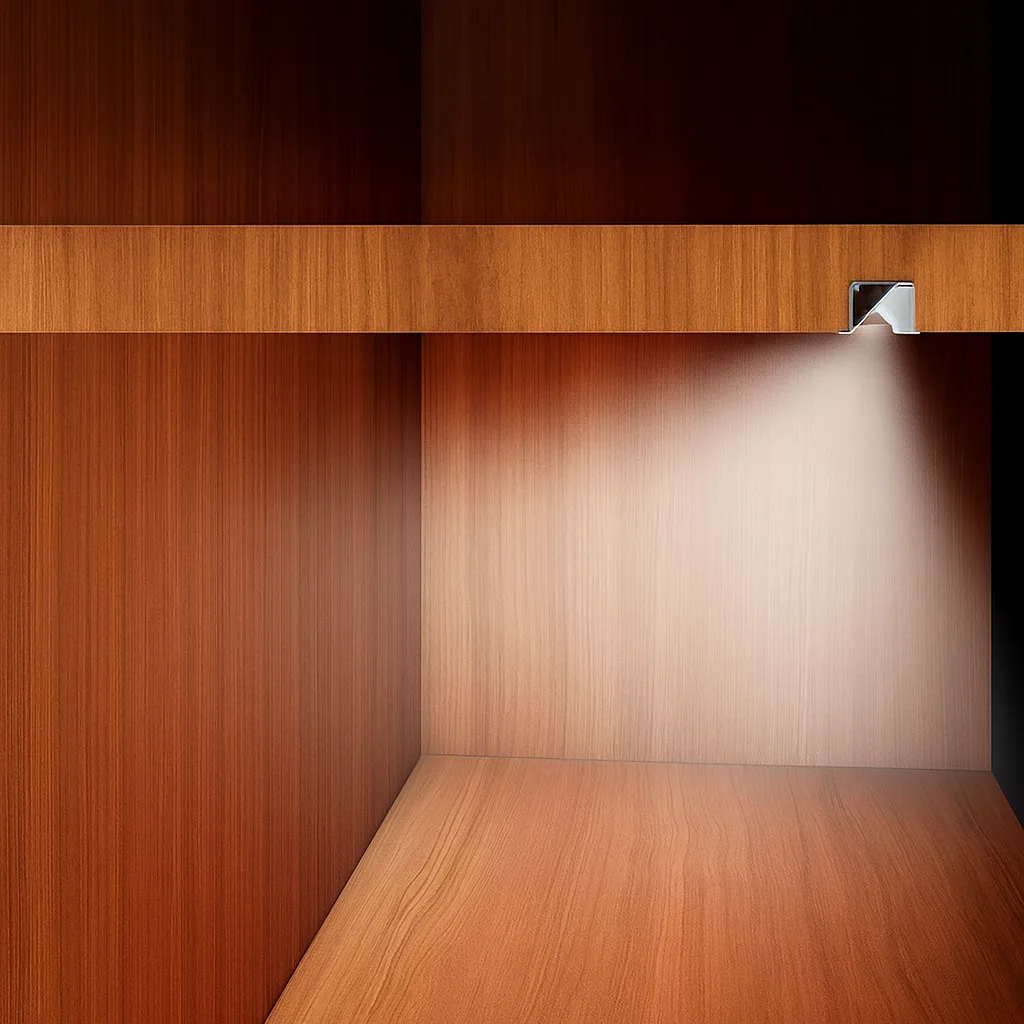

| Beam Angle | 45 ° diagonal glow |

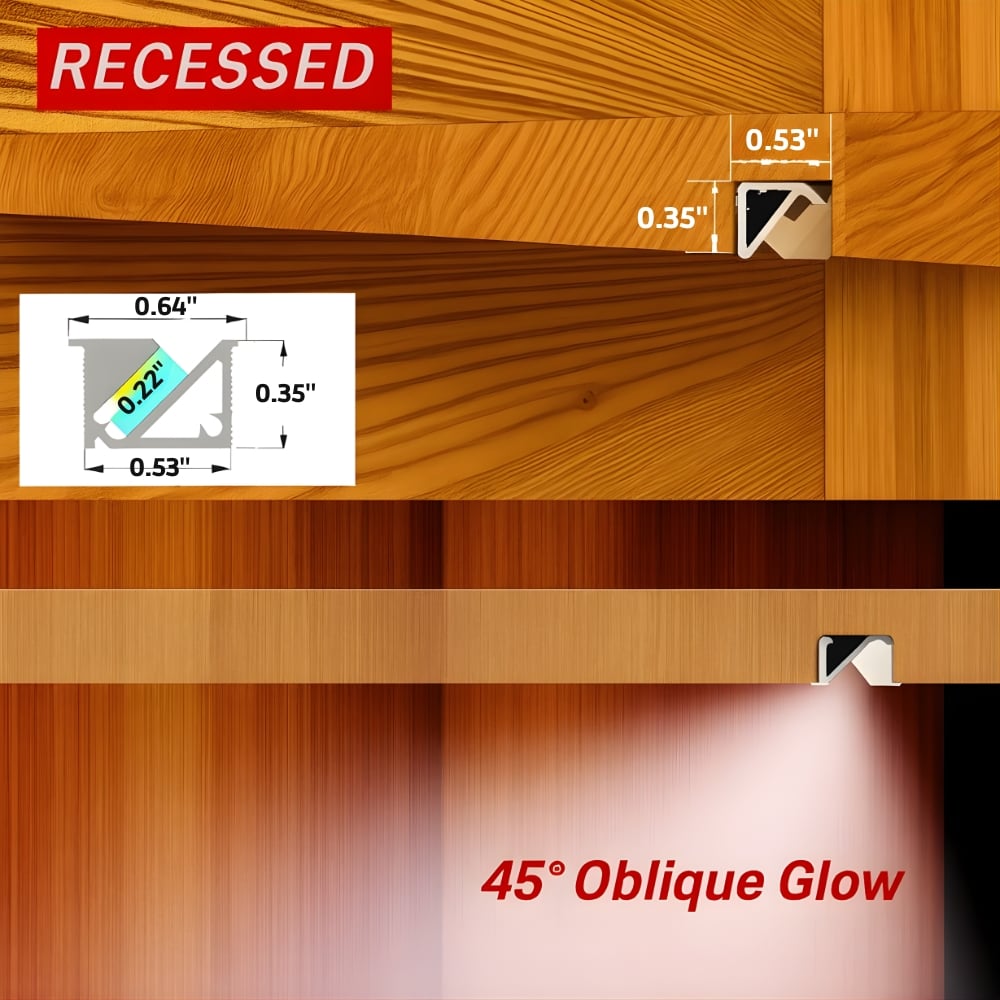

| Outer Size |
0.65″ W × 0.53″ H (16.5 mm W × 13.5 mm H) |
| Recommended Groove |
0.67″ W × 0.55″ D (17 mm W × 14 mm D) – (wood, MDF, drywall) |
| Lengths* | 11.81″ (30cm) , 15.75″ (40cm) , 19.69″ (50cm) , 23.62″ (60cm) , 27.56″ (70cm) , 31.50″ (80cm) , 35.43″ (90cm) , 39.37″ (100cm) , 43.31″ (110cm) , 47.24″ (120cm) , 51.18″ (130cm) , 55.12″ (140cm) , 59.06″ (150cm) , 63″ (160cm) , 68″ (173cm) , 73″ (185cm) , 79″ (200cm) |
| Sensor Option | Works with 12 V / 24 V IR, touch or door sensors |
| Ideal Uses | Wardrobes, kitchen shelves, display cases, staircase skirting, library niches |
Installation Notes
Route the channel slot – plunge-cut a 17 mm × 14 mm groove along the shelf or panel; keep edges square for a tight press-fit.
Pre-wire the LED strip – solder leads first; remove backing tape so it slides easily.
Feed & seat – thread strip into the aluminum, LED side facing diffuser; press firmly along the heatsink.
Insert profile – push the loaded channel into the groove; add a bead of construction adhesive or countersunk screws from the rear if needed.
Snap on diffuser – start at one end and run a thumb along the length until fully seated.

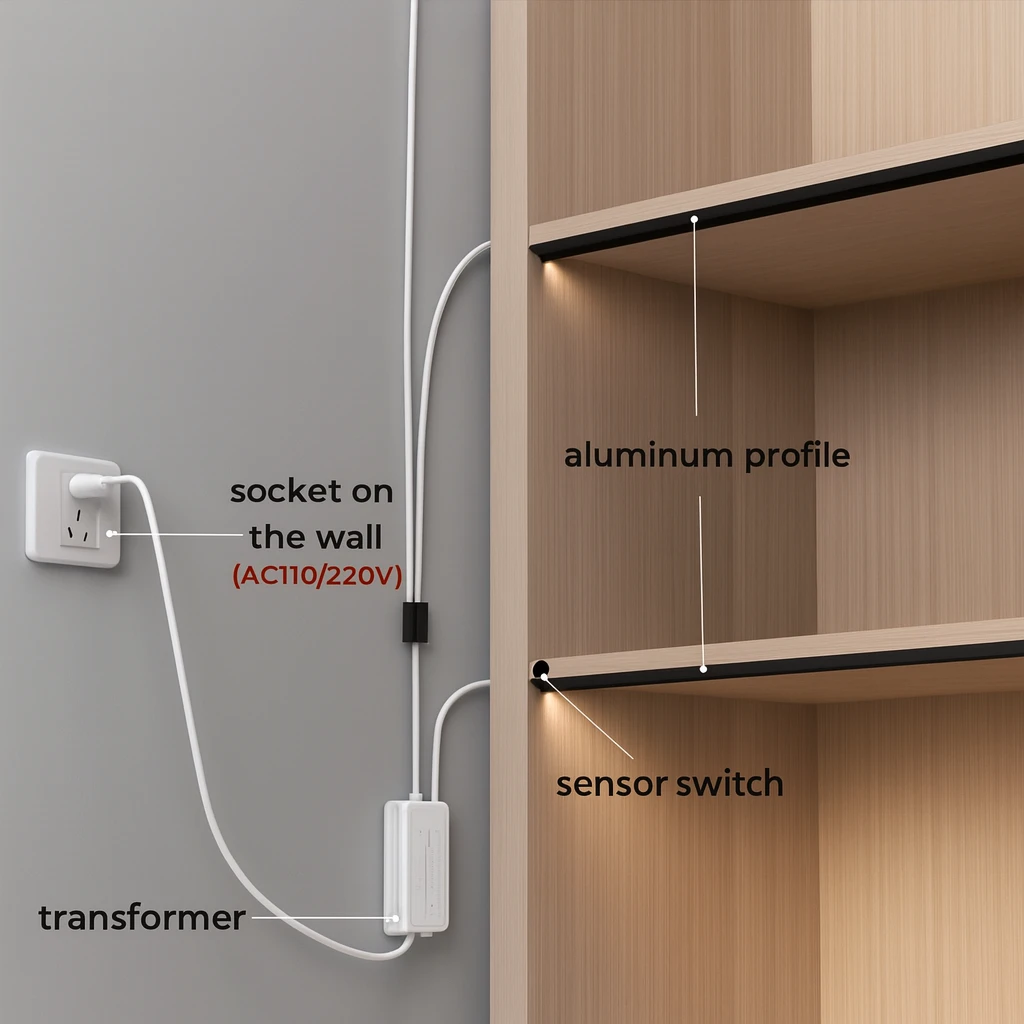

Connect & test – power the strip with a 12 V/24 V driver; integrate an IR door sensor or wave switch for automatic on/off.
Finish trim – caulk or veneer edge if a zero-gap look is required.
