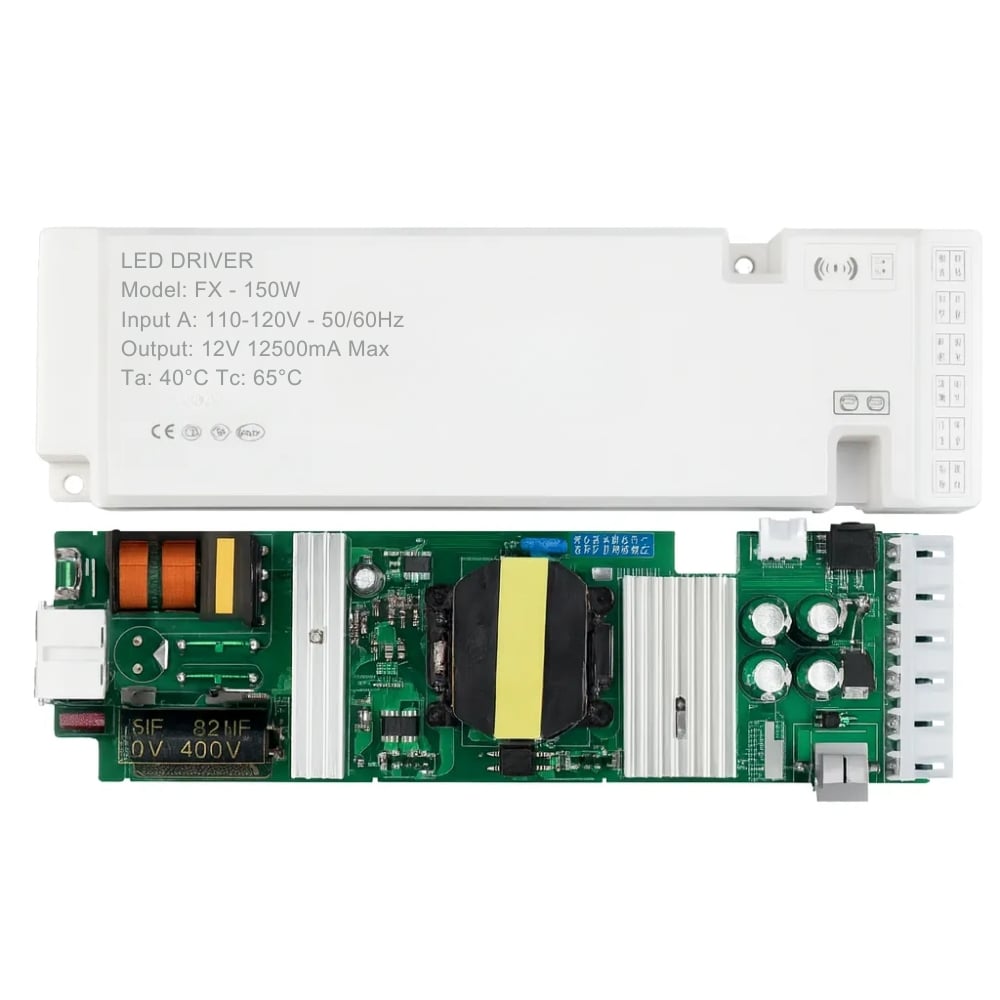

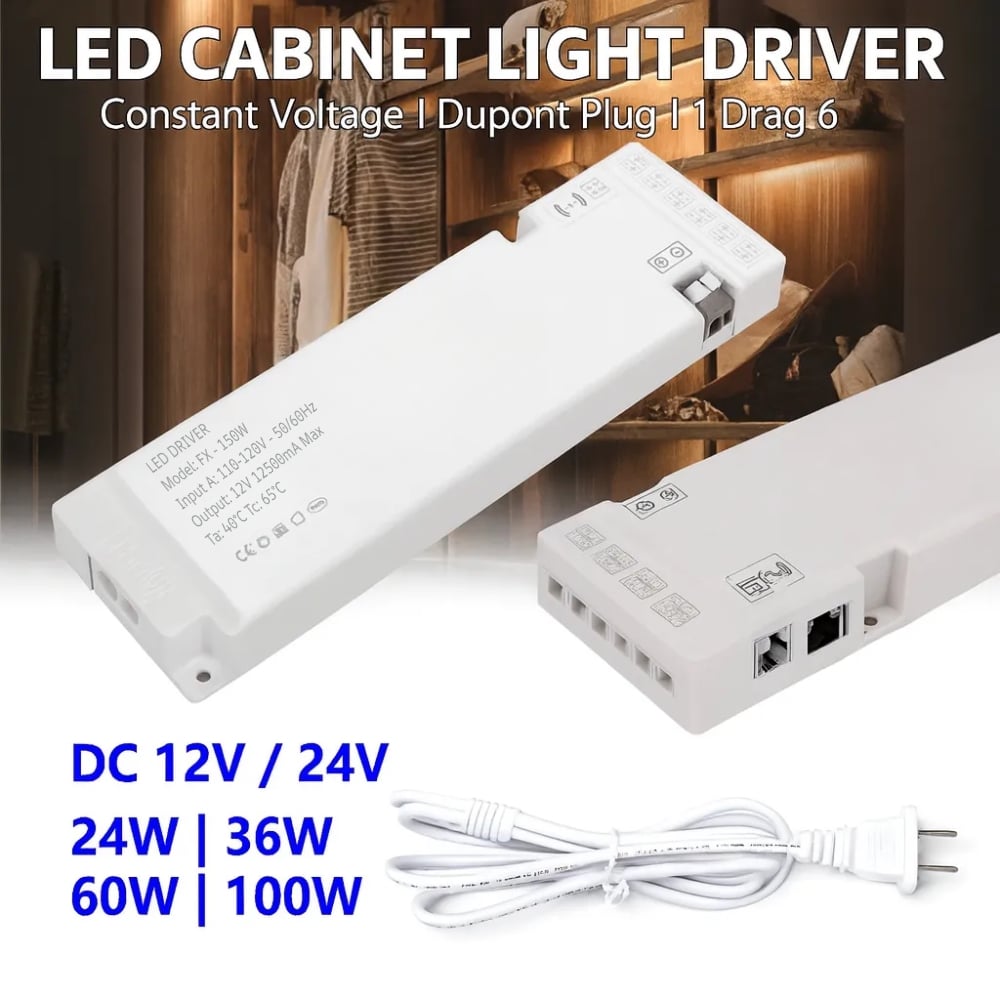

Feed every shelf, cove, or wardrobe run from one ultra-thin brick. This 100 W constant-voltage LED driver tucks behind toe-kicks or inside wall units yet powers up to 8.3 A of 12 V tape (or 4.2 A of 24 V) with rock-steady regulation. Tool-free DuPont terminals speed up cabinet builds—no fiddly barrel plugs—while the universal 110-264 V input tackles global mains. Short-circuit, over-current, and over-temperature protection safeguard your investment, making it a rock-solid choice for kitchens, display shelves, vanity mirrors, wine cellars, and boutique showcases.
Specifications Table
| Feature | Detail |
|---|---|
| Power Capacity | 100 W max |
| Input Voltage | 110 – 264 V AC, 50/60 Hz |
| Output Voltages | 12 V DC (≤ 8.3 A) • 24 V DC (≤ 4.2 A) |
| Regulation | ±2 % ripple & noise |

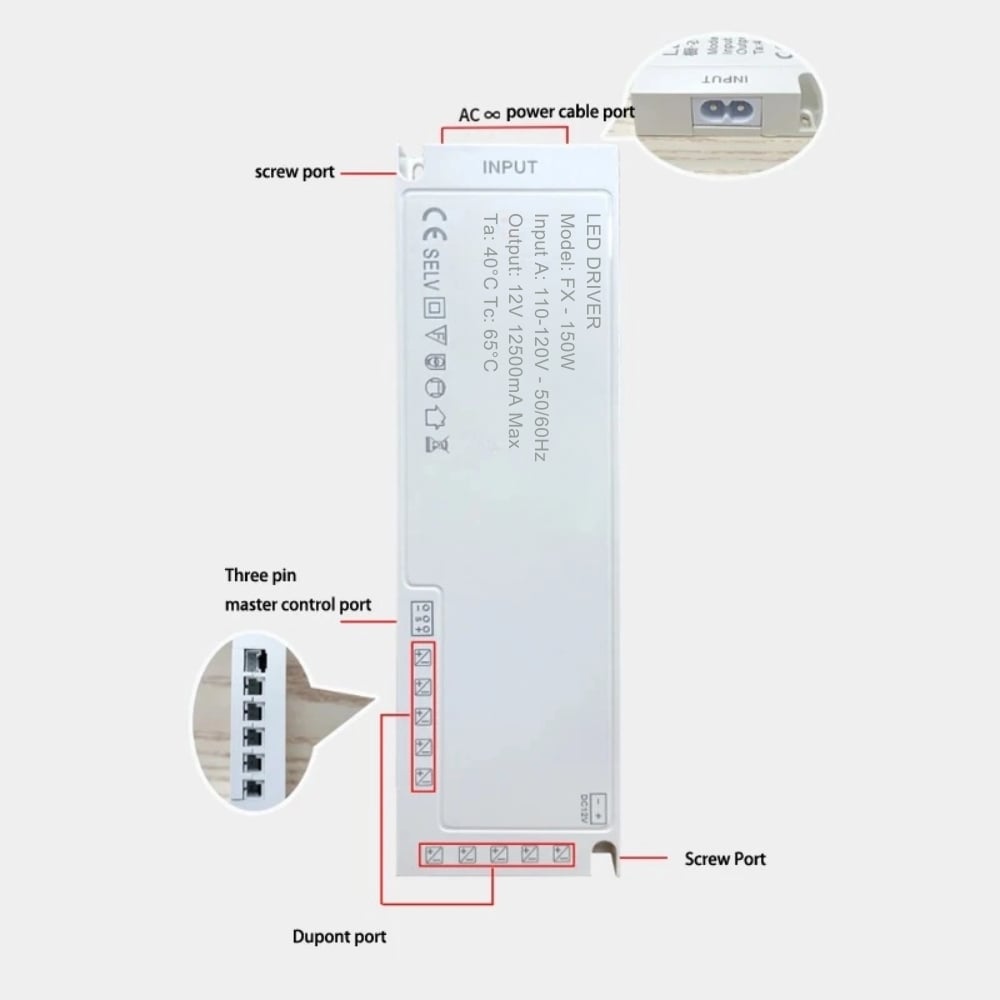

| Ports | 6× DuPont screw-free outputs + 1× three-pin master control |
| Protections | OVP, OCP, SCP, OTP (auto-reset) |
| Efficiency | ≥ 90 % @ full load |
| Ambient Range | −10 °C → +45 °C |
| Housing | Flame-retardant ABS, matte-white |
| Dimensions | 200 × 65 × 18 mm (slimline) |
| Certifications | CE, RoHS, SELV-isolated |
| Ideal Uses | Under-cabinet bars, wardrobe rails, mirror lights, retail shelving |
Wiring & Mounting Tips
Cut mains – isolate the circuit before work.
AC in – connect live/neutral to the screw clamp labelled INPUT (no earth needed, class II double-insulated).
DC out – push LED strip leads into any DuPont port, observing + / − polarity. Use separate ports for parallel runs—no Y-splicing required.
Voltage selector – choose 12 V or 24 V strips (driver auto-senses load). Do not mix voltages on the same driver.
Ventilation – leave 10 mm air gap on both sides; mount with two screws through integrated tabs.
Power up – verify output with multimeter, then enjoy flicker-free, silent lighting.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $24.99.$19.00Current price is: $19.00.
Original price was: $44.99.$19.00Current price is: $19.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $39.99.$19.00Current price is: $19.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $39.99.$29.99Current price is: $29.99.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $39.99.$29.99Current price is: $29.99.
Original price was: $49.99.$39.99Current price is: $39.99.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $29.00.$19.00Current price is: $19.00.
Terry Jones –
I like that it offers both 12V and 24V outputs, so I can easily switch depending on my lighting needs.
Joseph Liu –
This transformer has been a fantastic addition to my lighting setup.
Edwin Embry –
Works perfectly with my cabinet lights! The transformer is robust and well-built.
Daniel Williams –
I’m really impressed with the quality and efficiency of this LED transformer.
Christo Coushe –
Easy to install. Provides ample light. Really appreciate the low profile. You can attach dimmer, sensor, led’s to it no problem at all, it provides enough ports for everything
Matt Pilcox –
This works as expected. One thing to note though is that if you are using the wireless switch, you have to pair it up again if you lose power. It’s not difficult to do, but it stumped me for a bit.
Anthony Lionel –
Excellent product for under cabinet lighting. It’s easy to install. I especially like the fact that you can connect a lot of lights together on cabinets on either side of the sink etc.. I used a second set with dimmer to illuminate inside of our cabinets with glass doors making it a very nice display case for the wife’s collection of special dishes
Todd Powell –
I used this power supply to drive some LED lights from a dimmable light switch already installed in my wall. I simply removed the power cord per the instructions and wired the wall power 120V directly to the power supply and connected the LED light strip to the other side (12 V).
David.K –
I had a dimmer switch in the wall and needed this device in order to adjust the brightness on the orbisify LED strip lights. It was very easy to install the electrical wire from the wall dimmer switch to this as it didn’t even need a ground connection. The other end hooked up easily to the LED strip. I love the brightness range I get using this and the dimmer. I also liked the 6 slots that allow you to connect multiple lights, very useful!
Fredrich Ochen –
A very slim unit to easily hide under or inside a cabinet. This product does come with 6 ports. If you cannot use screws to install , double sided stick tape will work for it is very light in weight.
