Use BRIGHT11 code for extra 11% off
Original price was: $19.00.$9.00Current price is: $9.00.
Model number: ACL-010
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $39.00.$29.00Current price is: $29.00.
Original price was: $19.00.$9.00Current price is: $9.00.
$19.00
Original price was: $39.00.$19.00Current price is: $19.00.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.

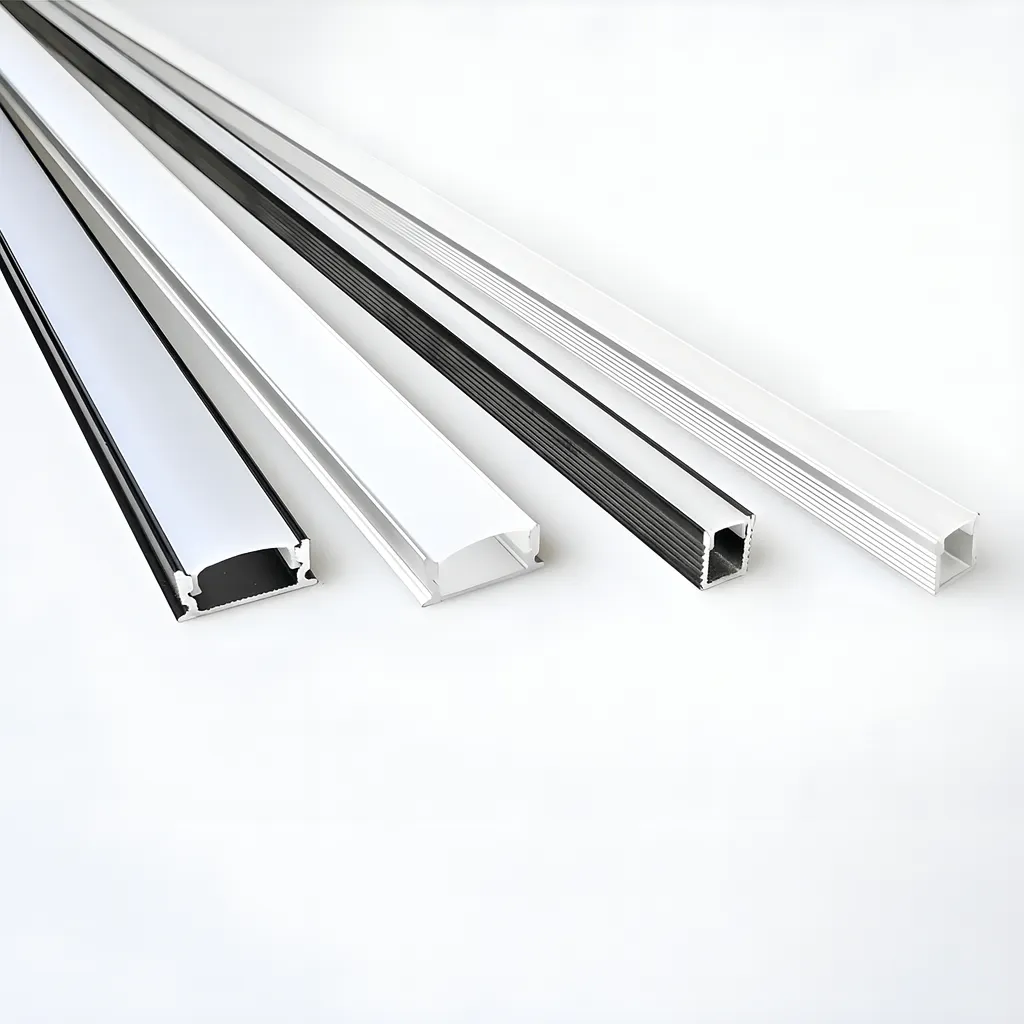

Build clean, continuous lines of architectural light with this contractor-grade aluminum channel set combining standard U and mini U profiles for both surface-mount and recessed installs. Rigid anodized 6063 aluminum provides excellent heat dissipation and edge protection, while the snap-in milky PC covers soften hotspots for a uniform glow on shelves, cabinets, toe-kicks, and display cases. The standard U accepts up to 0.47in tape for high-output runs; the mini U is a slim option for 0.20in micro/COB strips and tight reveals. Use adhesive or clips for fast, professional installation in residential and commercial millwork. LED strip NOT included.
To get recommended LED Strip lighting, (CLICK HERE)
Specifications
| Feature | Detail |
|---|---|
| Material | 6063 extruded aluminum, anodized |
| Finish Colors | Silver or Black (milky white PC diffuser) |
| Profile Shapes | Standard U and Mini U (micro) |
| Mounting | Surface-mount or recessed (shallow rout) with adhesive and/or mounting clips |
| Diffuser | Milky snap-in PC cover; dot-softening with high-density tape |
| LED Compatibility | Standard U: ≤12 mm (0.47 in) tape; Mini U: ≤5 mm (0.20 in) tape |
| Reference Dimensions | Mini U outer: ~9 × 7.6 mm (0.35 × 0.30 in); inner channel ~5.6 mm (0.22 in) |
| Length | 11.81″ (30cm) , 15.75″ (40cm) , 19.69″ (50cm) , 23.62″ (60cm) , 27.56″ (70cm) , 31.50″ (80cm) , 35.43″ (90cm) , 39.37″ (100cm) , 43.31″ (110cm) , 47.24″ (120cm) , 51.18″ (130cm) , 55.12″ (140cm) , 59.06″ (150cm) , 63″ (160cm) , 68″ (173cm) , 73″ (185cm) , 79″ (200cm) |
| Cuttable | Yes — cut to length with a fine-tooth saw; deburr before assembly |
| Thermal Management | Full-length aluminum heat sink improves LED lifespan |

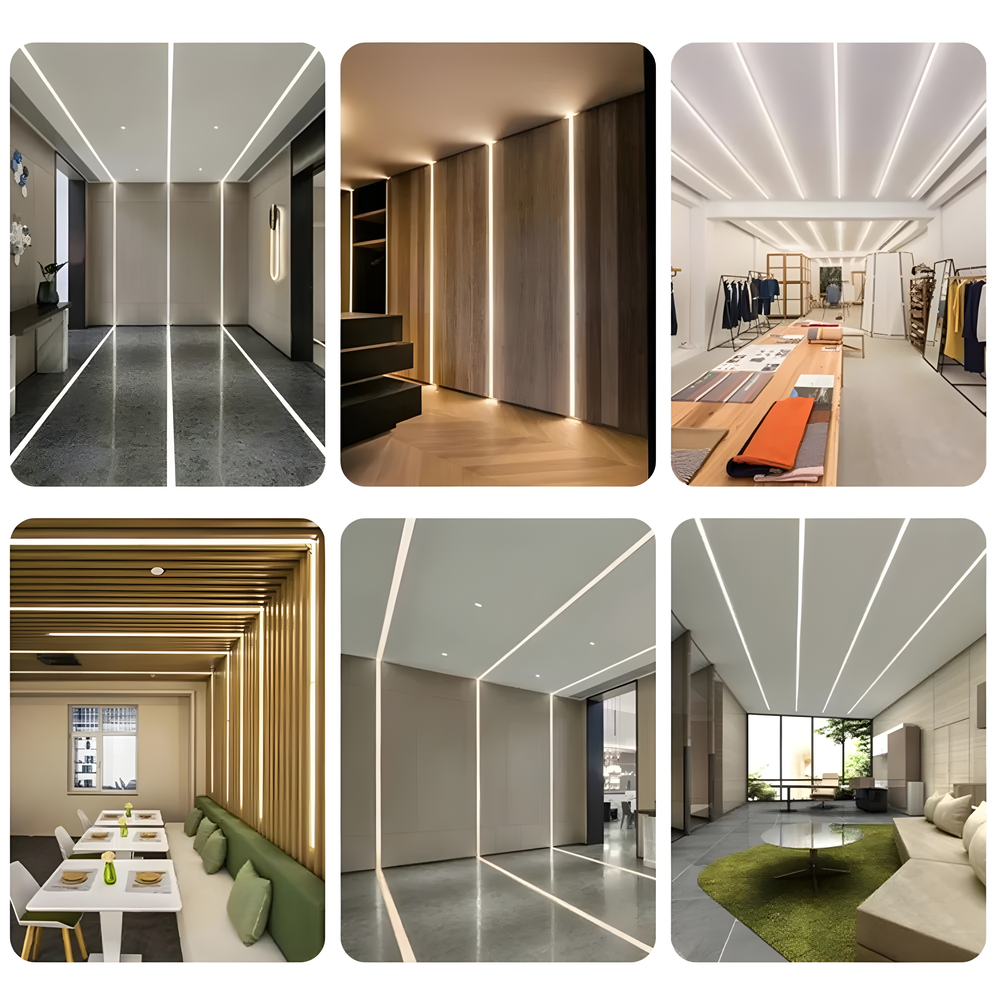

| Typical Applications | Under-cabinet and shelf lighting, display cases, toe kicks, wardrobes, recessed reveals, retail fixtures |
| Power | 12/24 V DC low-voltage system (driver not included) |
| What’s Not Included | LED strip, power supply/driver, dimmer, wiring, adhesive/screws, corner/straight connectors, end caps (optional accessories) |

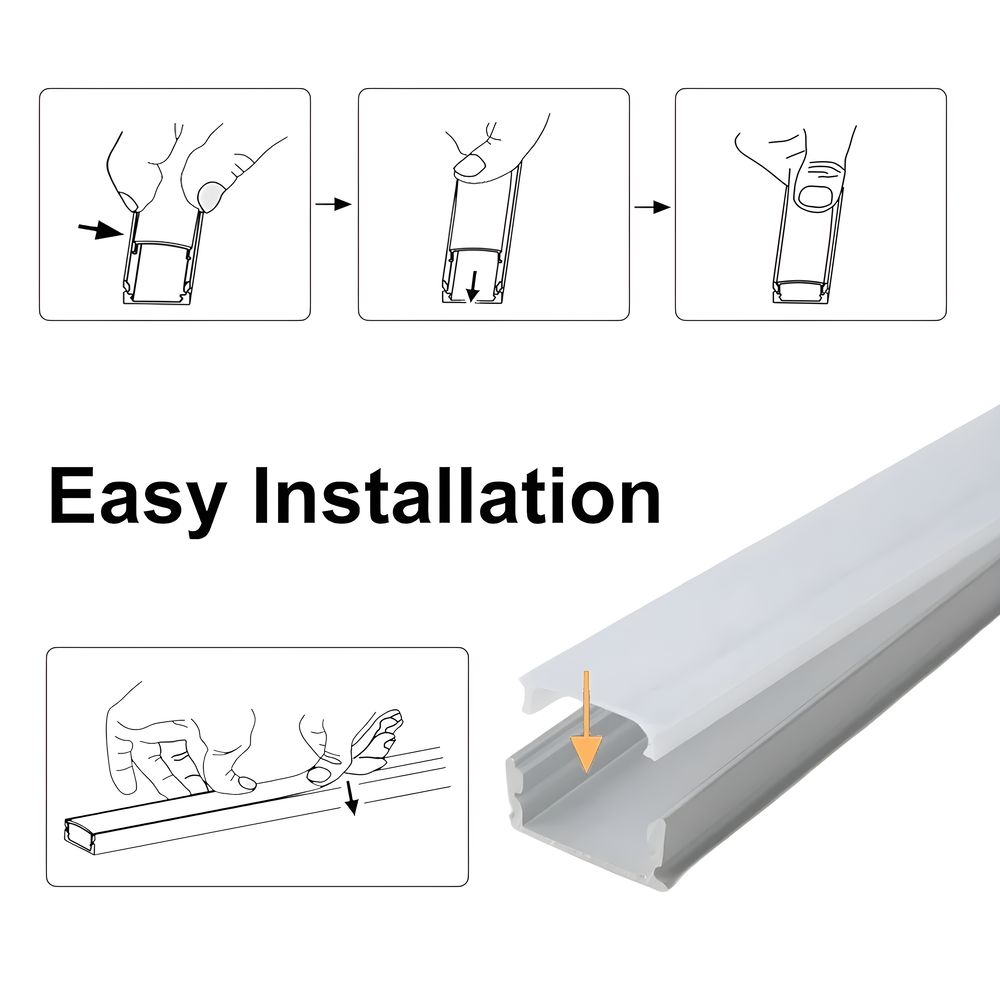

Installation Notes
Plan & layout: choose Standard U or Mini U by strip width and light level; mark feed points and lengths.
Prepare substrate: for recessed installs, rout a shallow channel; for surface installs, clean and degrease the mounting area.
Cut & dry-fit: trim profiles to size; deburr ends; test fit and mark clip locations if using clips.
Apply tape: adhere the LED strip inside the channel; route low-voltage leads to driver.
Mount: fix the profile with construction adhesive and/or mounting clips/screws; keep runs straight.
Snap diffuser & test: press the milky cover evenly, connect to a compatible 12/24 V DC driver/dimmer, and verify uniform output.
