Special Offer: Use code FALL10 in cart
Original price was: $39.00.$19.00Current price is: $19.00.
Model number: CDP-024
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
$9.00
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $39.00.$19.00Current price is: $19.00.
Original price was: $19.00.$9.00Current price is: $9.00.

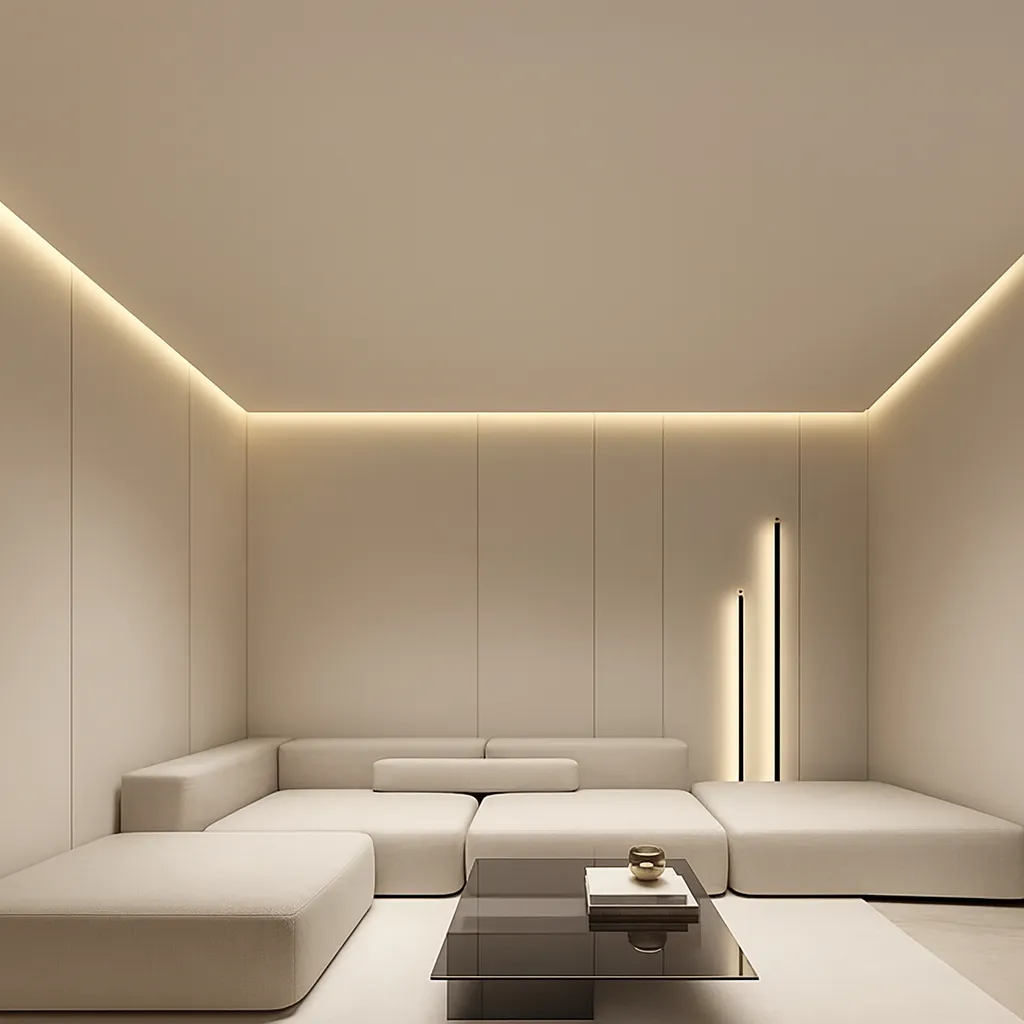

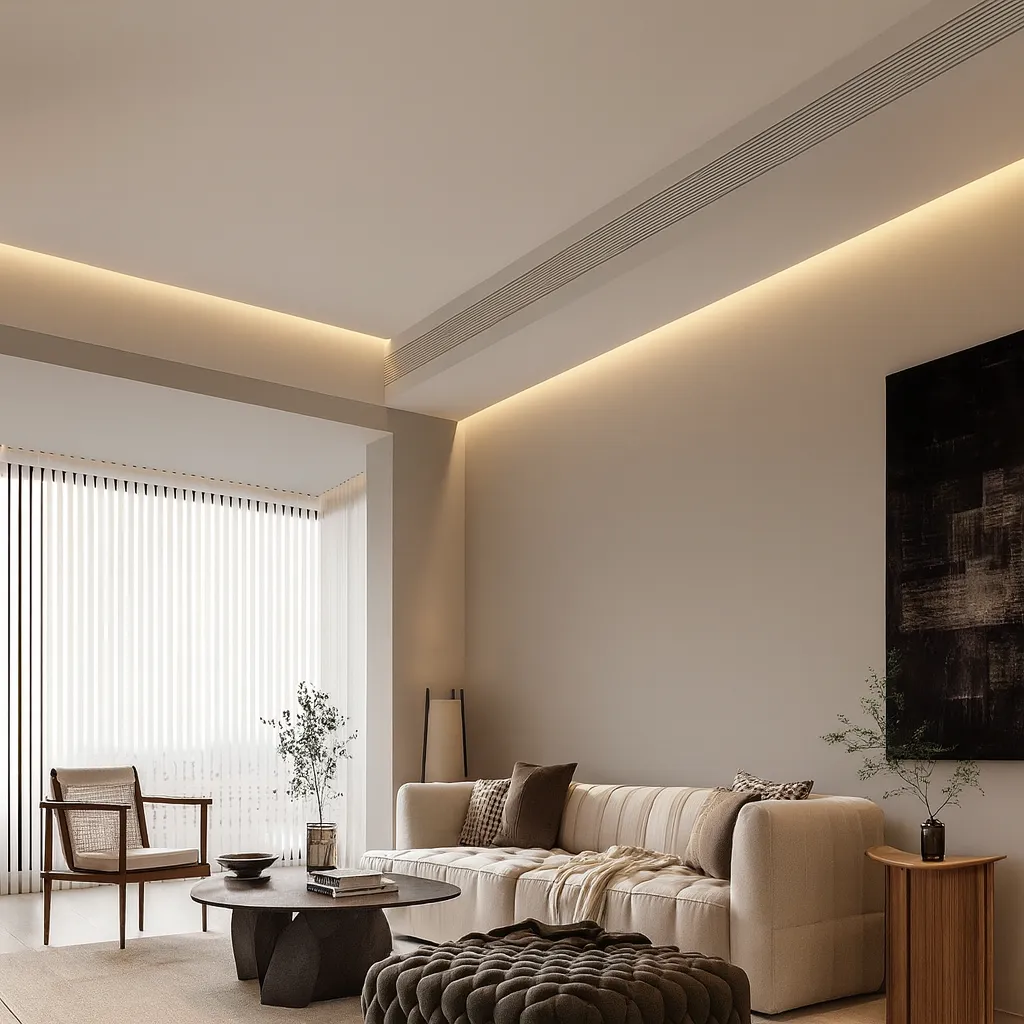

Achieve a sleek, architectural “light line” with this recessed ceiling LED aluminum channel, designed for trimless drywall integration. The narrow linear profile installs flush into ceilings or walls, creating a seamless and modern indirect lighting effect — perfect for hidden backlighting, wall washing, or minimalist ceiling features.
Constructed from high-grade aluminum with a milky PC diffuser, it provides smooth, dot-free illumination while effectively dissipating heat from LED strips. Available in multiple depths and widths, this channel adapts to diverse ceiling designs and interior lighting needs.
Trimless & Seamless Design: Mud-in flanges allow perfect ceiling or wall integration with no visible frame.
Uniform Glow: Milky diffuser softens LED output for smooth, glare-free lighting.
Architectural Finish: Ideal for hidden perimeter light, wall wash, and ceiling backlight designs.

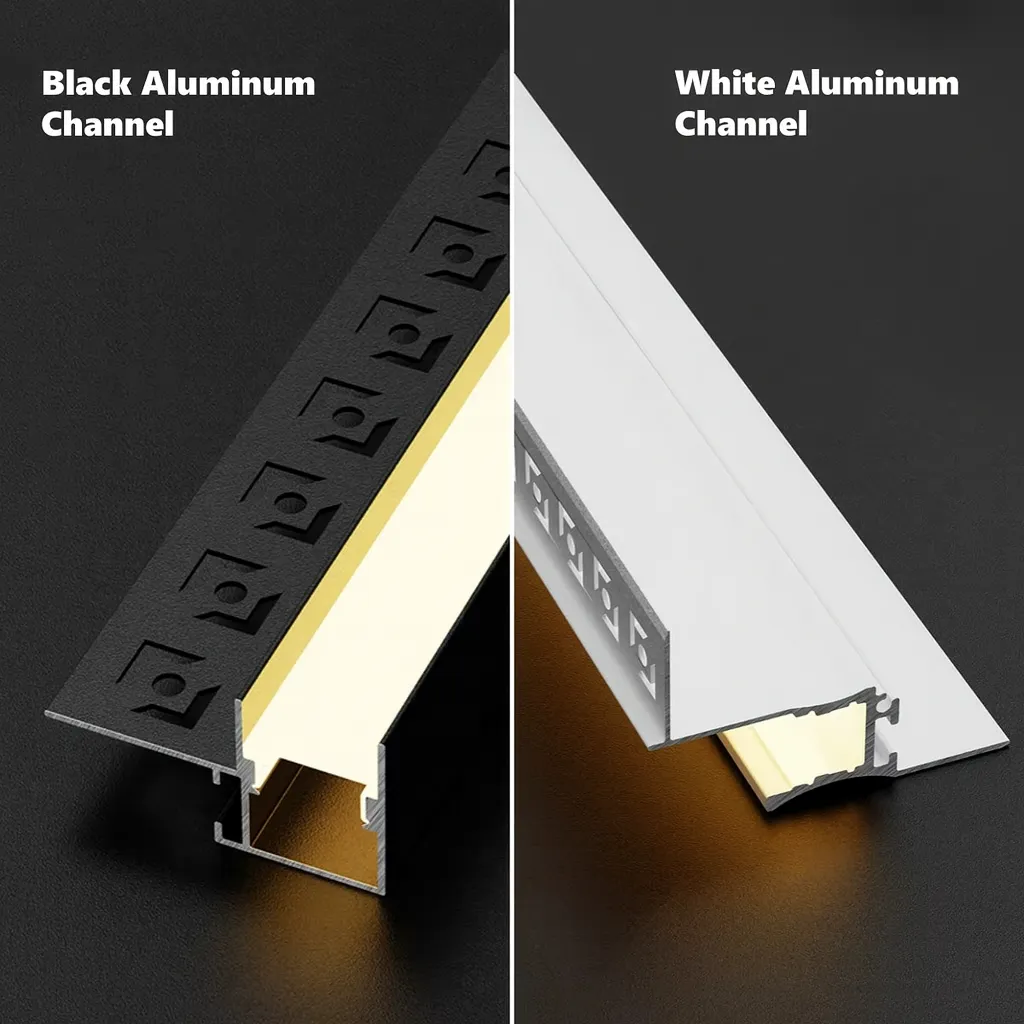

Color Options: Choose from white or black anodized finishes for a professional aesthetic.
Durable Construction: Made of premium aluminum for superior heat dissipation and long service life.
Multiple Size Options: Available in various dimensions to suit different lighting layouts and project needs.
| Feature | Detail |
|---|---|
| Material | Aluminum Channel + PC Diffuser |
| Finish Colors | White / Black |
| Cover Color | Milky |
| Installation | Embedded (plaster-mount) |
| Mounting Type | Recessed / Trimless |
| Length | 1.6ft (0.5m) | 3.3ft (1m) | 6.6ft (2m) |

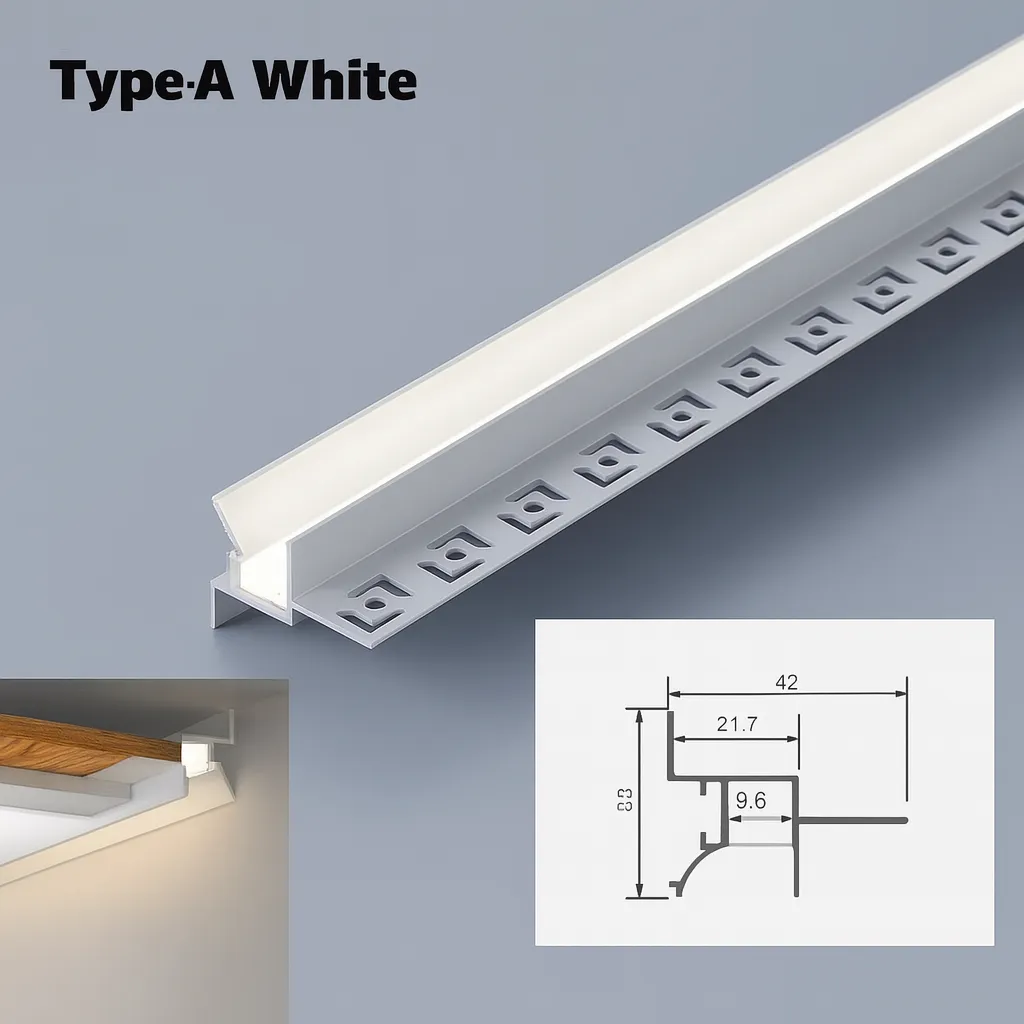

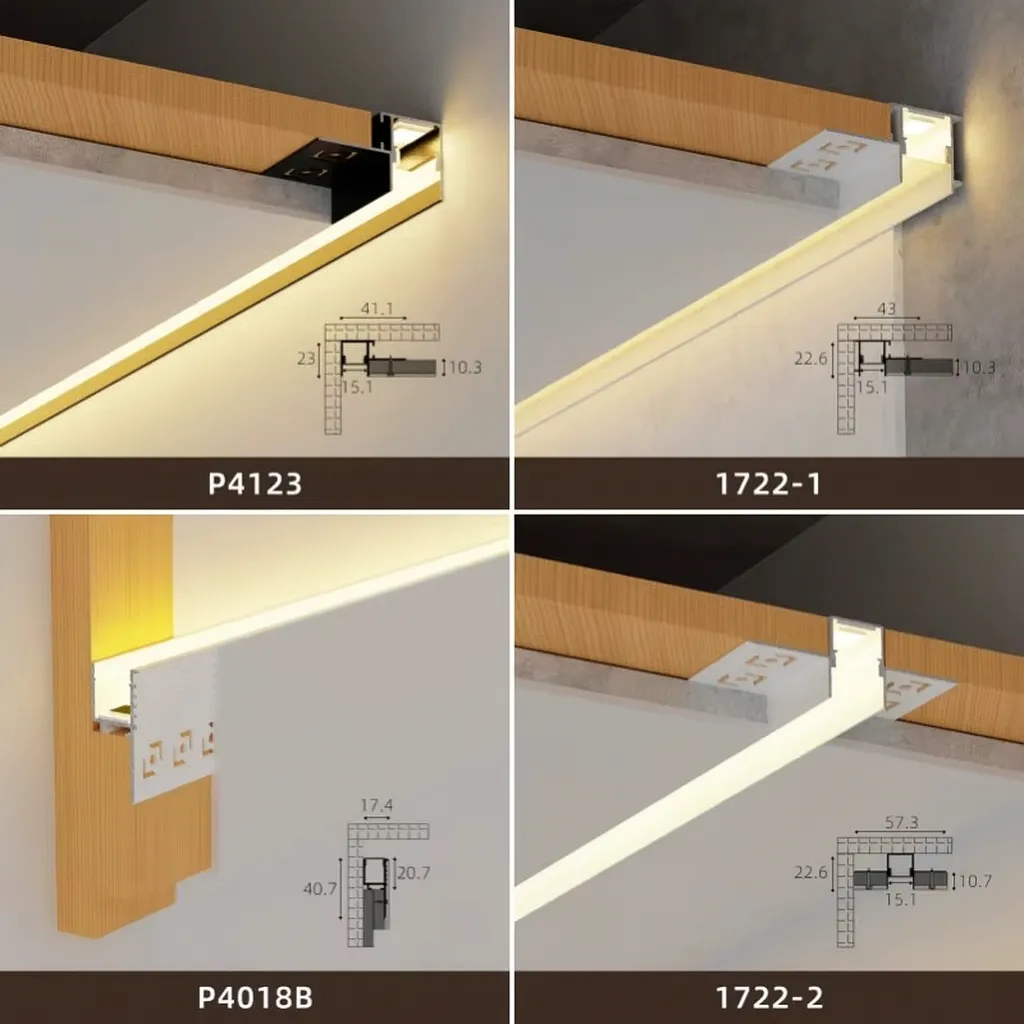

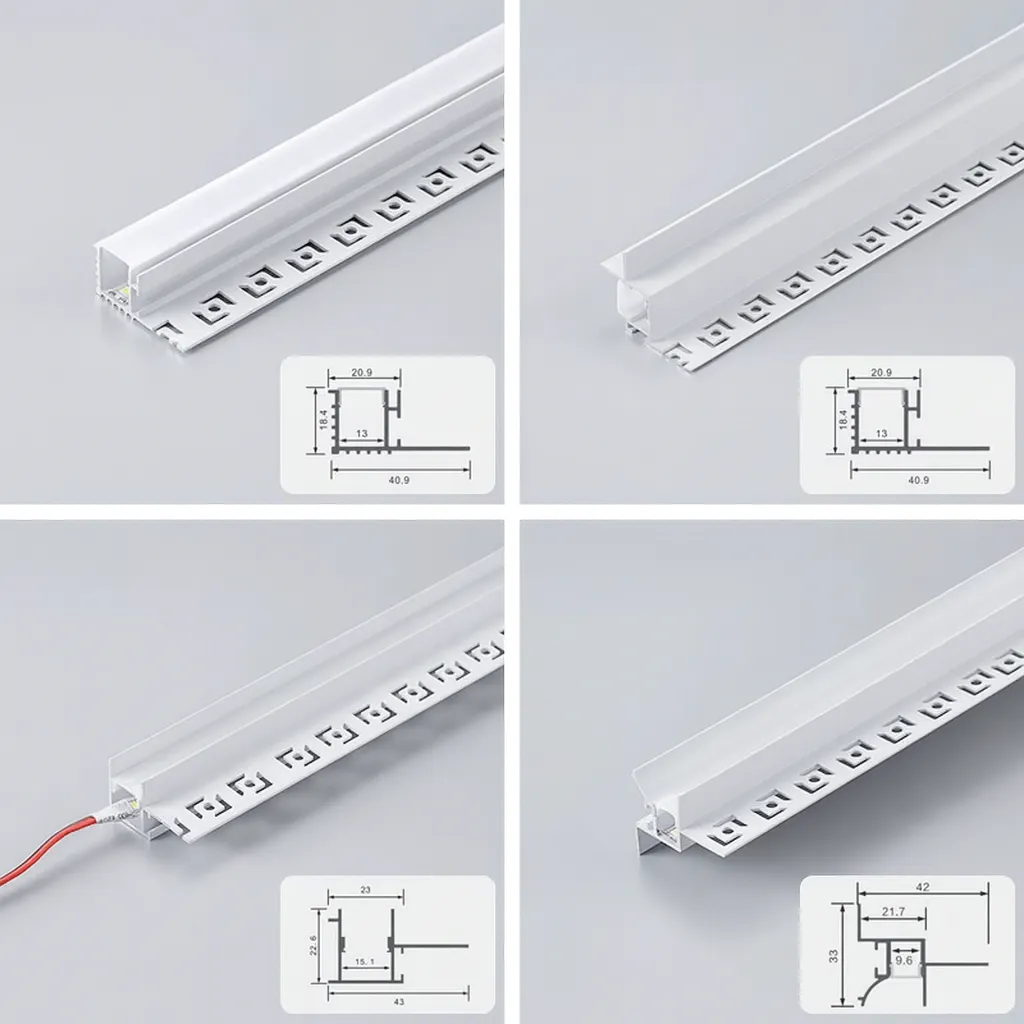

| Model Options | Type A: 1.65″×1.30″ (42×33mm) Black ,Type A: 1.65″×1.30″ (42×33mm) White, Type B:1.30″×1.77″ (33×45mm) Black, Type B: 1.30″×1.77″ (33×45mm) White, Type C: 1.61″×0.91″ (41×23mm) Black, Type C: 1.61″×0.91″ (41×23mm) White, Type D:1.65″×0.75″ (42×19mm) White, Type E: 1.69″×0.79″ (43×20mm) White, Type H1: 1.61″×2.44″ (41×62mm) White, Type H2: 1.61″×2.44″×0.47″ (41×62×12mm) White, Type F: 1.69″×0.87″ (43×22mm) White, Type G: 2.24″×0.87″ (57×22mm) White |
| Diffuser Type | Milky PC cover – soft, uniform illumination |
| LED Compatibility | Fits standard 8–12mm LED strips (SMD or COB) |
| Application | Recessed ceiling light lines, hidden wall wash, perimeter lighting, backlight features |
1 × Aluminum Profile (selected model)
1 × Milky PC Diffuser Cover
LED strip and transformer not included.
Minor differences in the shape of side mounting holes may occur between batches — dimensions remain consistent and unaffected during installation.
For best performance, pair with high-density COB LED strips for a dot-free lighting effect.
