Model number: ACL-019
This surface-mount corner LED aluminum channel with a curved diffuser is designed to create clean, modern lighting lines in architectural and interior installations. Constructed from durable anodized aluminum, it provides excellent heat dissipation to improve LED strip performance and longevity. The 45° corner design directs light precisely across walls, ceilings, cabinets, and edges, while the curved diffuser softens the output to produce smooth, uniform illumination without visible LED dots. Ideal for accent lighting, cabinet lighting, shelving, and architectural highlights, this profile delivers a refined and professional lighting finish for residential, commercial, and hospitality spaces.
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $24.00.$14.00Current price is: $14.00.
Original price was: $39.00.$29.00Current price is: $29.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $19.00.$9.00Current price is: $9.00.
$19.00
$9.00
Original price was: $39.00.$19.00Current price is: $19.00.
Original price was: $29.99.$19.99Current price is: $19.99.
The Surface Mount LED Aluminum Channel with Diffuser Cover (U-Shape & V-Shape) is a professional lighting profile designed to house LED strip lights and create clean, modern architectural lighting lines. Made from durable aluminum alloy, the channel improves heat dissipation and protects LED strips from dust, impact, and environmental damage, ensuring longer lifespan and consistent lighting performance.

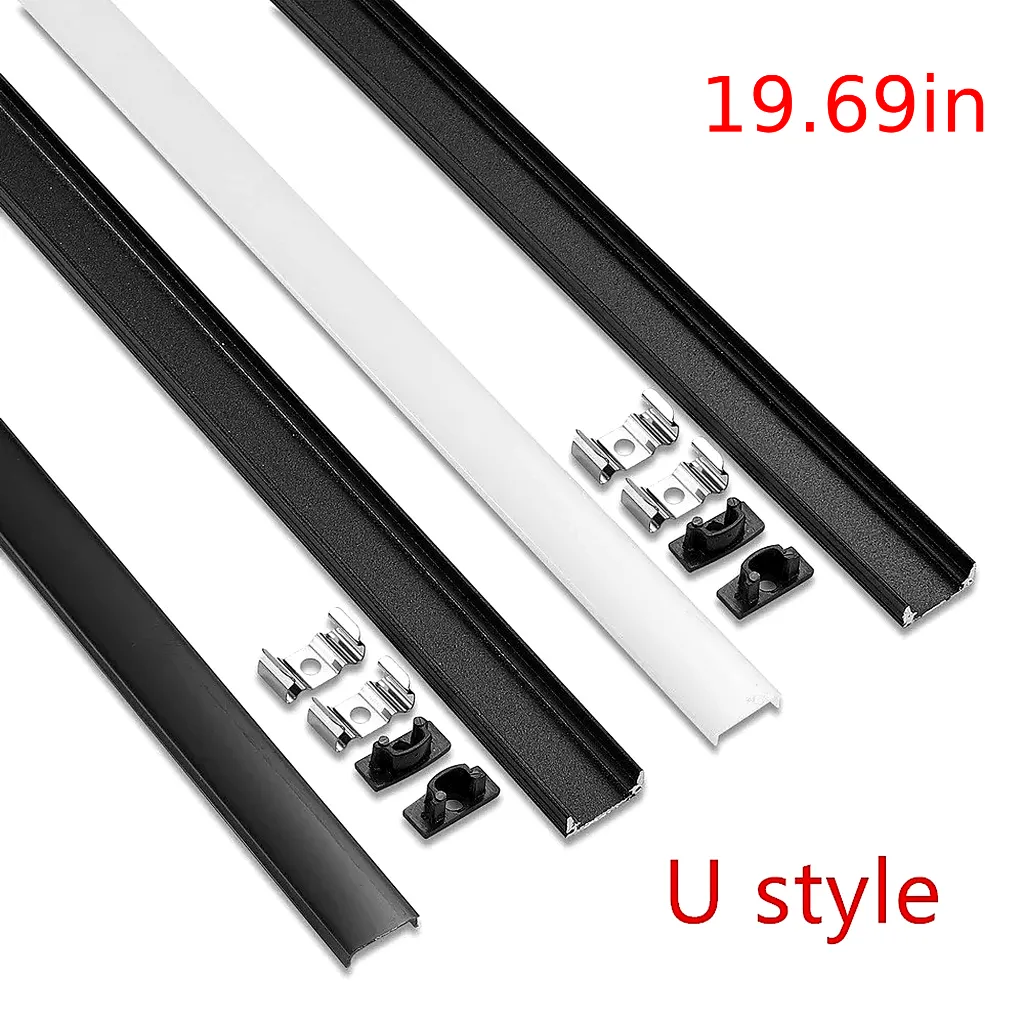

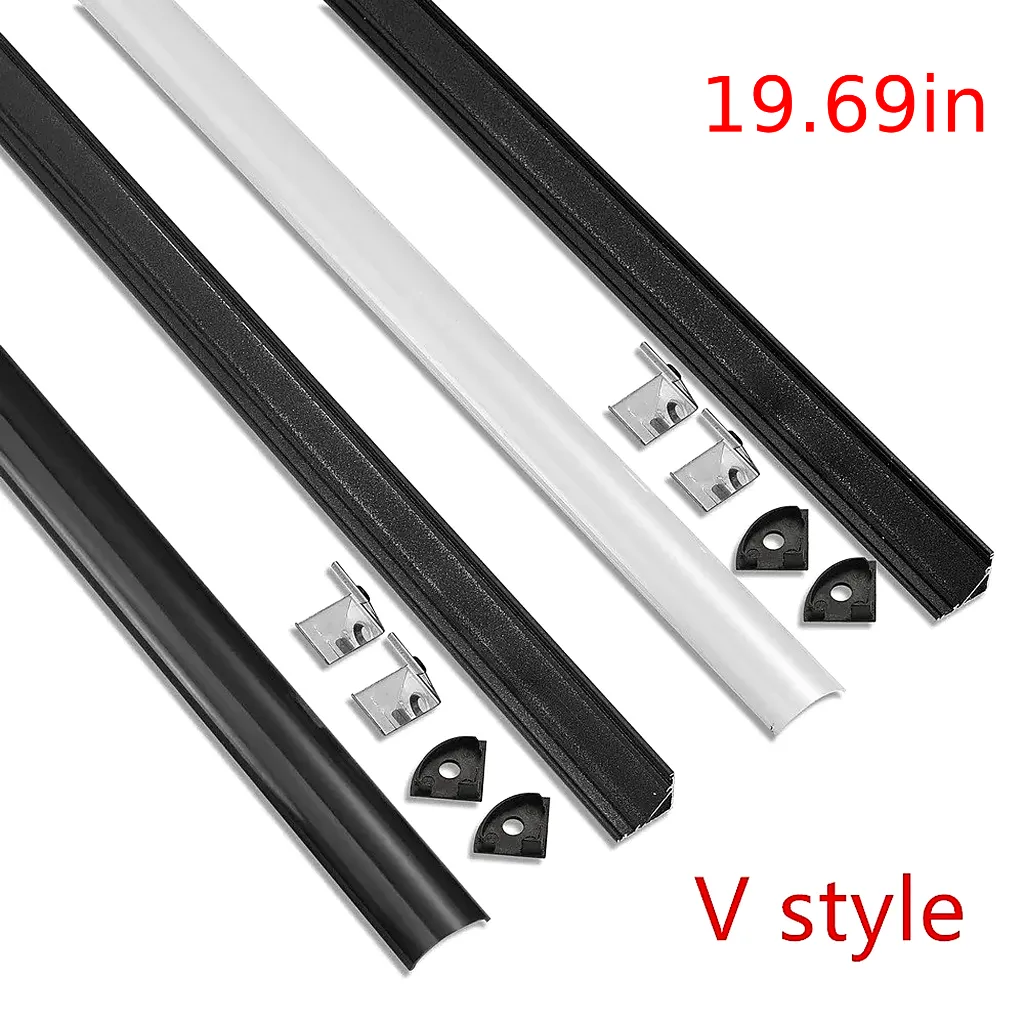

This LED aluminum profile system is available in two mounting styles. The U-shape profile is designed for flat surface installations such as cabinets, shelves, walls, and furniture, providing a sleek linear lighting effect. The V-shape profile is designed for corner installations at a 45-degree angle, directing light outward for better wall washing or cabinet illumination.
The included diffuser cover softens and spreads the LED light evenly, eliminating visible LED dots and producing a smooth, professional glow. With compatibility for 8mm (0.31inch) and 12mm (0.47inch) LED strip lights, this channel works with most standard LED strips used for residential, commercial, and decorative lighting projects.

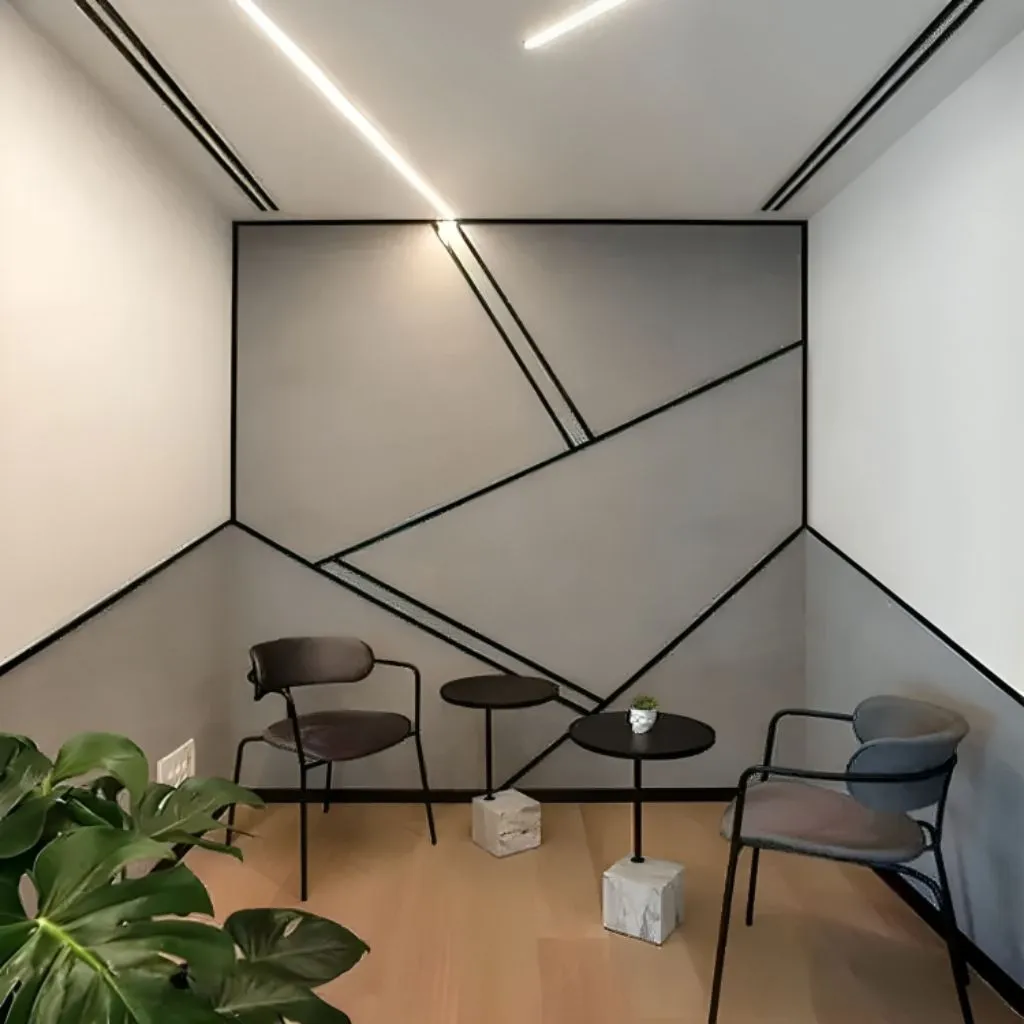

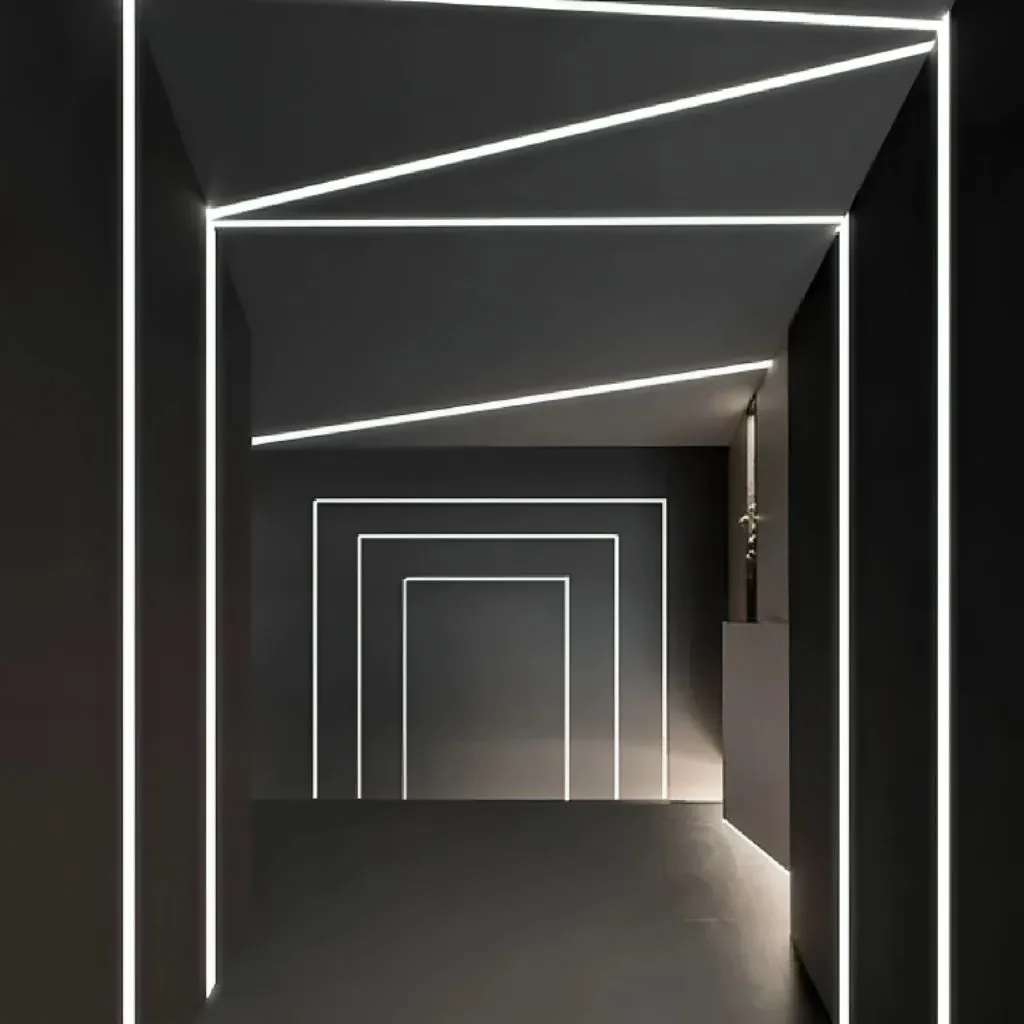

Each set includes mounting clips, screws, and end caps for quick installation. The channels are ideal for applications such as under-cabinet lighting, architectural accent lighting, shelf lighting, display lighting, ceiling lighting, and decorative interior illumination.
To get recommended LED Strip lighting, (CLICK HERE)
Specifications
| Feature | Detail |
|---|---|
| Material | 6063 extruded aluminum, anodized |
| Finish Colors | Black, Gray |
| Model Options | U-Shape (linear), V-Shape (corner/45°) |
| Mounting | Surface or corner mount; construction adhesive and/or mounting clips/screws |
| Length | 11.81″ (30cm), 15.75″ (40cm), 19.69″ (50cm), 23.62″ (60cm), 27.56″ (70cm), 31.50″ (80cm), 35.43″ (90cm), 39.37″ (100cm), 43.31″ (110cm), 47.24″ (120cm), 51.18″ (130cm), 55.12″ (140cm), 59.06″ (150cm), 63″ (160cm), 68″ (173cm), 73″ (185cm), 79″ (200cm) |

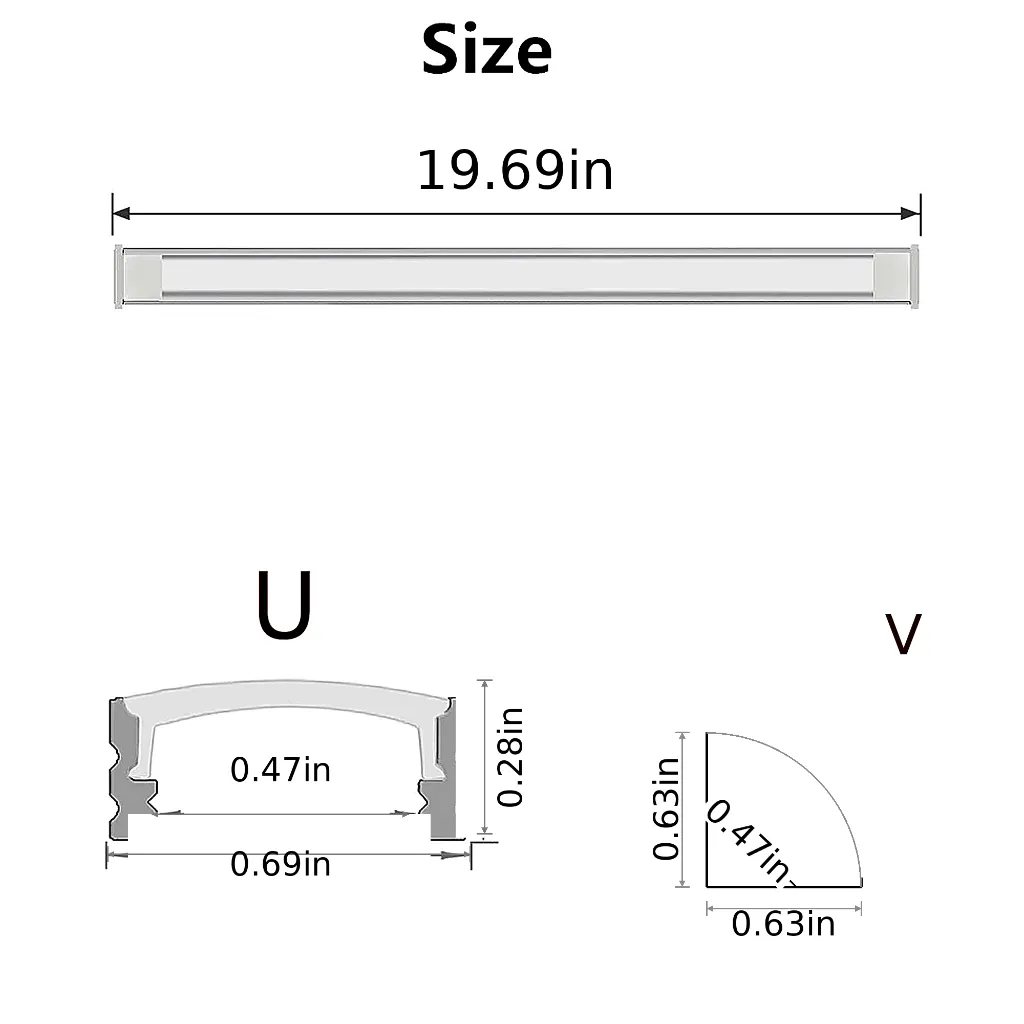

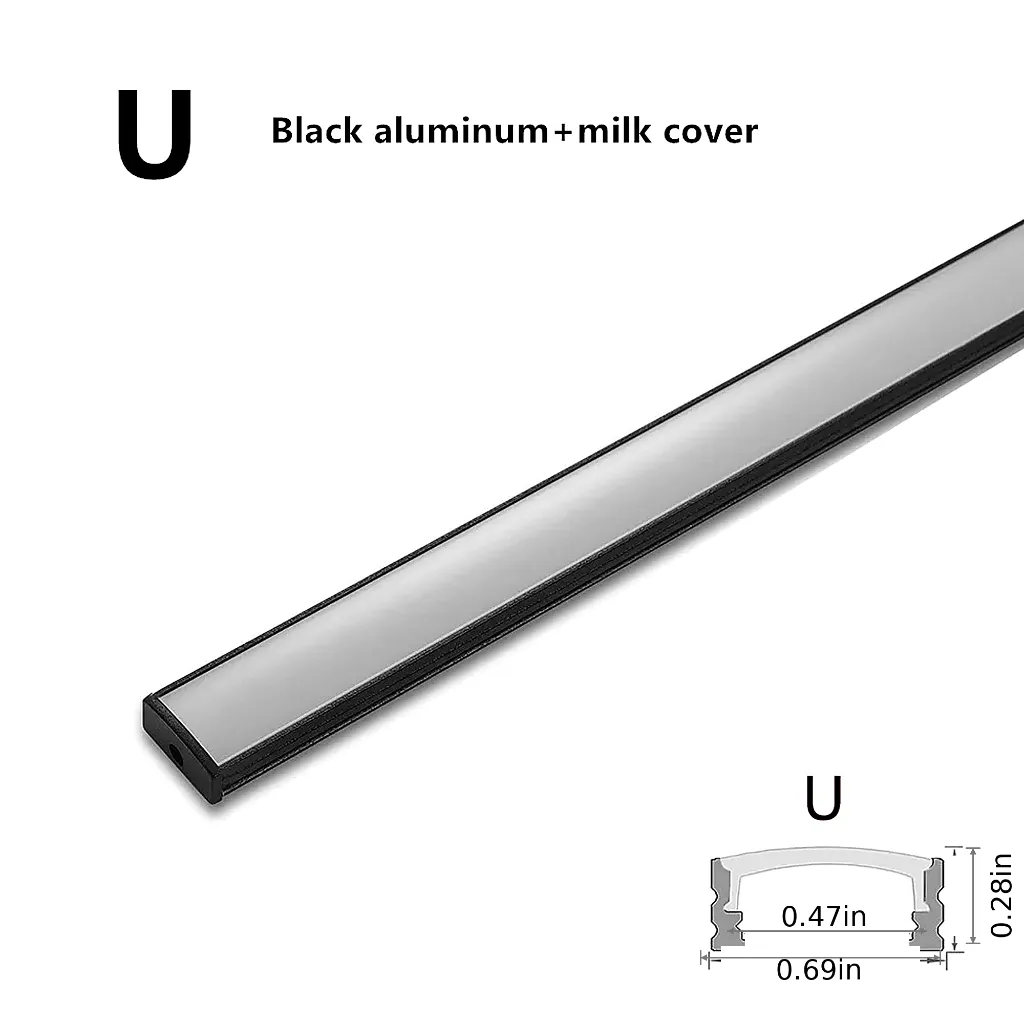

| Dimensions — U | 17.5 mm W × 7 mm H (0.69 in × 0.28 in) |

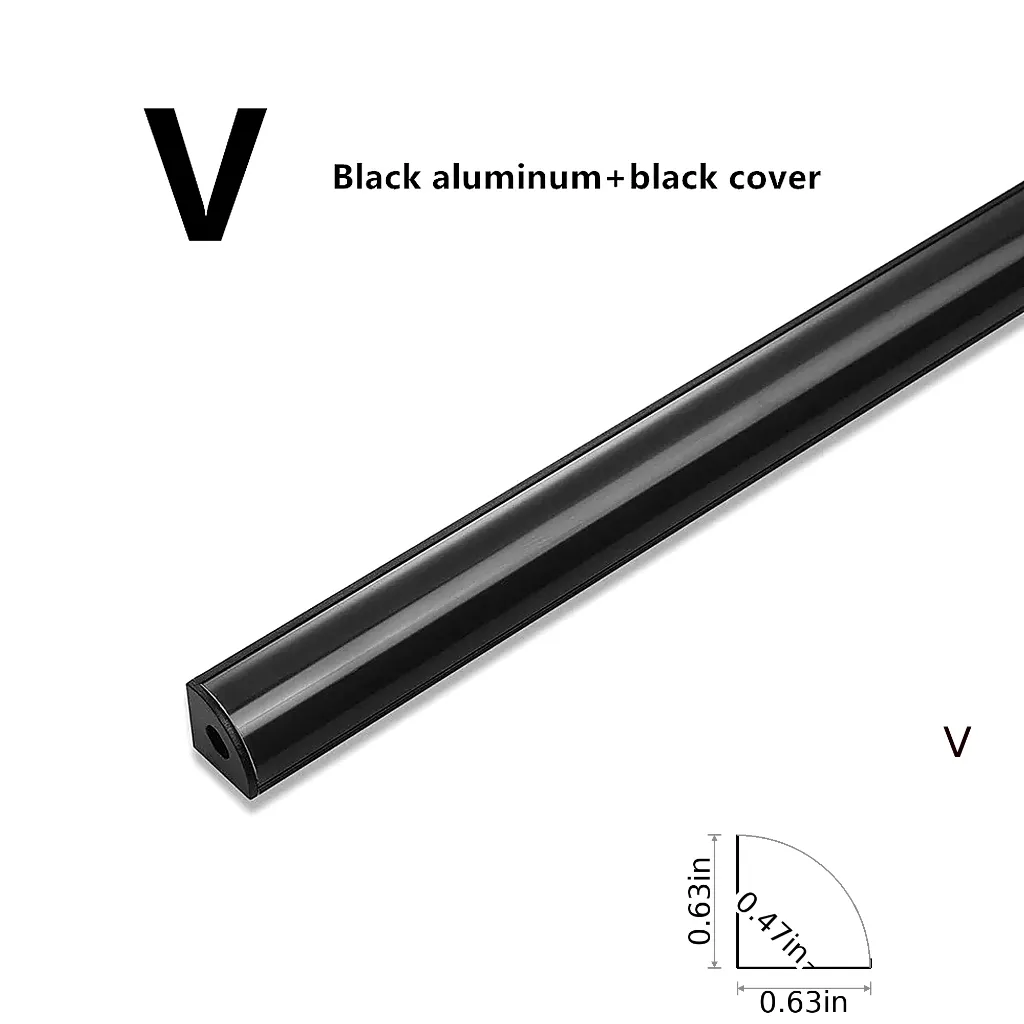

| Dimensions — V | 16 mm × 16 mm triangular corner fit (0.63 in × 0.63 in) |
| Inner Channel Width | 12 mm (0.47 in) |
| LED Compatibility | Fits standard 12 mm (0.47inch) LED tape (COB or SMD) |

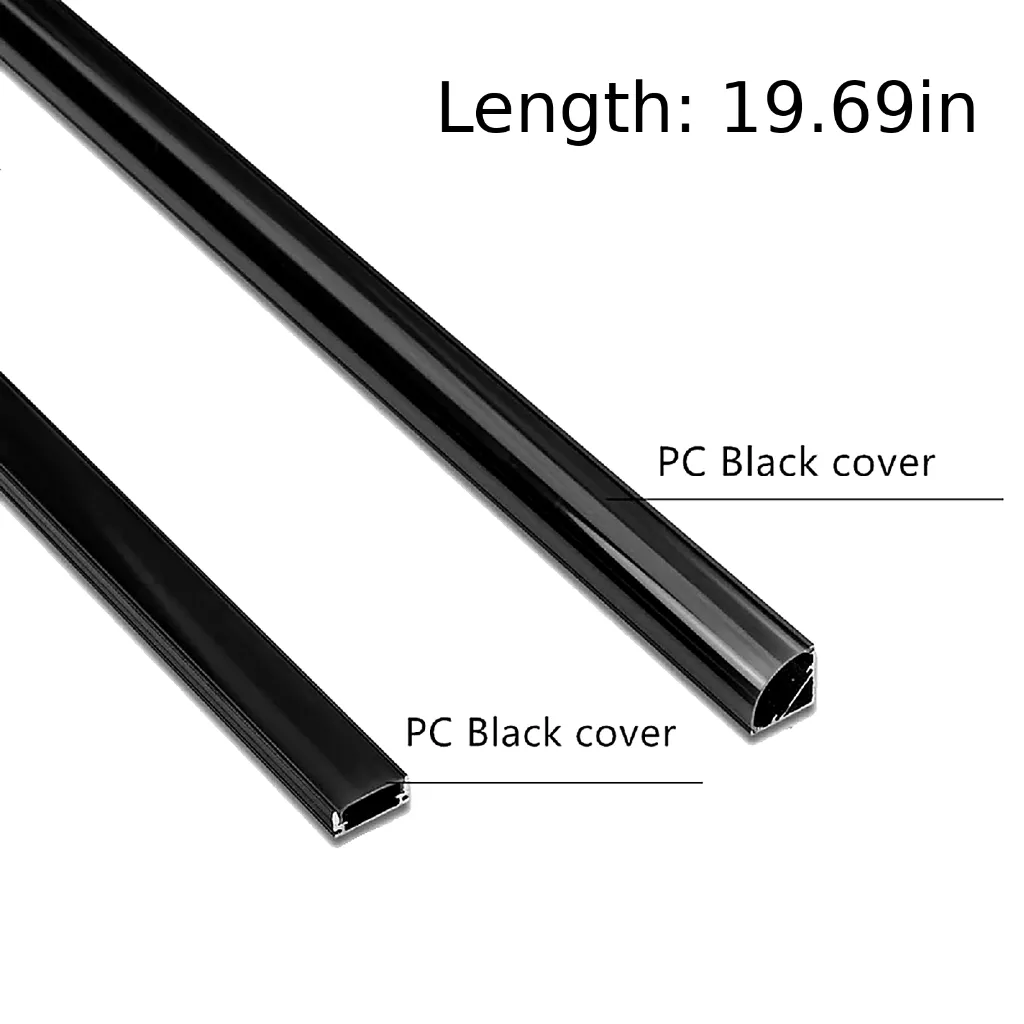

| Diffuser | Milky snap-on PC cover; dot-softening with high-density tape |
| Thermal Management | Aluminum heat sink improves LED longevity |
| Power | 12/24 V DC low-voltage system (driver not included) |
| Typical Applications | Under-cabinet, shelf and display lighting, wall accents, architectural millwork |
| What’s Not Included | LED strip, power supply/driver, dimmer, wiring, corner/straight connectors, mounting hardware/adhesive |
Installation Notes
Plan and measure runs; choose U or V model based on mounting surface and beam direction.
Cut profiles to length with a fine-tooth saw; deburr ends and clean the substrate.
Adhere 12 mm (0.47inch) LED tape inside the channel; route low-voltage leads to the driver.
Fix the channel using construction adhesive and/or clips/screws; keep runs straight.
Snap the milky diffuser in evenly and test on a compatible 12/24 V DC driver/dimmer.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $39.99.$29.99Current price is: $29.99.
Original price was: $19.00.$9.00Current price is: $9.00.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $29.99.$19.99Current price is: $19.99.
Original price was: $34.99.$19.00Current price is: $19.00.
Adrian Westford –
Great channel for both residential and commercial installs. The black finish hides well on dark cabinetry. Provides a nice uniform light line once installed. Zero issues with heat or sagging.
Avery Jenkins –
These profiles made my LED install look super polished. The U-shape is perfect for surface mounting, and the build quality feels premium.
Marcus Trentwell –
Good quality extrusion. The diffuser fits tight with no light leaks. Works well for task lighting applications where clients want a discreet but modern fixture. Easy to cut and mount.
Damian Brookwell –
Installed several of these for a kitchen upgrade. The channel sits flush and gives the LEDs a very polished look. Good internal width for most strips. Sturdy enough for long-term use.
Mason Carter –
Very happy with how these turned out. Easy to work with, precise sizing, and they gave my cabinet lighting a modern upgrade. Ordering more soon.
Sofia Martinez –
Great product for a clean surface-mount lighting setup. The diffuser clicks in firmly and softens the LED glare perfectly. Would definitely recommend.
Nathan Ellersford –
Reliable, installer-friendly profile. Mounting holes line up well and the diffuser stays secure even when handled frequently. Gives a professional, finished appearance on any linear lighting run.
Lily Thompson –
Crisp, clean look and solid quality. The U-shape gives a sleek finish and the diffuser spreads the light evenly with zero hot spots. Easy to cut and install.
Jackson Reed –
Used these for a custom shelving project and the result was stunning. Light output is smooth and professional. The black finish gives it a high-end feel.
Cole Farnsworth –
Rigid aluminum, even on 2-meter sections. I used it for desk under-lighting and the result looked very clean. Diffuser softens the light well, especially with COB LEDs. Would use again.
Carter Whitlock –
Good profile for surface installs. Plenty of depth for COB strips and enough rigidity for long runs. Diffusion is smooth and hides the LED tape completely. Clients liked the clean, minimal look.
Julian Merrickson –
This U-shaped channel is tough and installs fast. The diffuser delivers even light, no visible diodes. Excellent for adding linear lighting without having to recess into surfaces. Will keep using on future jobs.
Trevor Mansfield –
Used this on a retail shelving job. The finish is durable and scratch-resistant. Cuts clean with a miter saw and installs tight. The U-shape provides good heat dissipation for high-density strips.
Mason Hardwick –
Solid U-channel. Aluminum extrusion is straight with no warping, and the diffuser snaps in firmly. Installed several under cabinets and the light output is clean with no hotspots. Easy to mount with standard clips.
