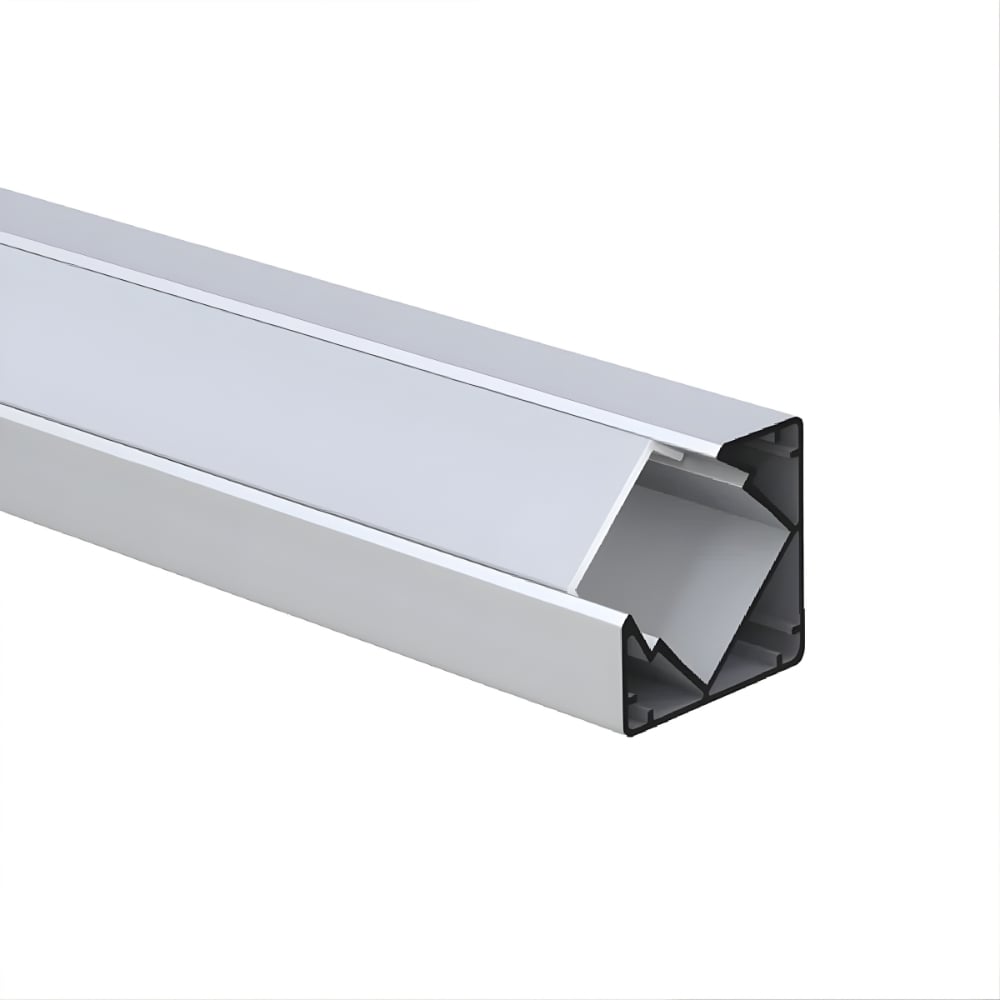

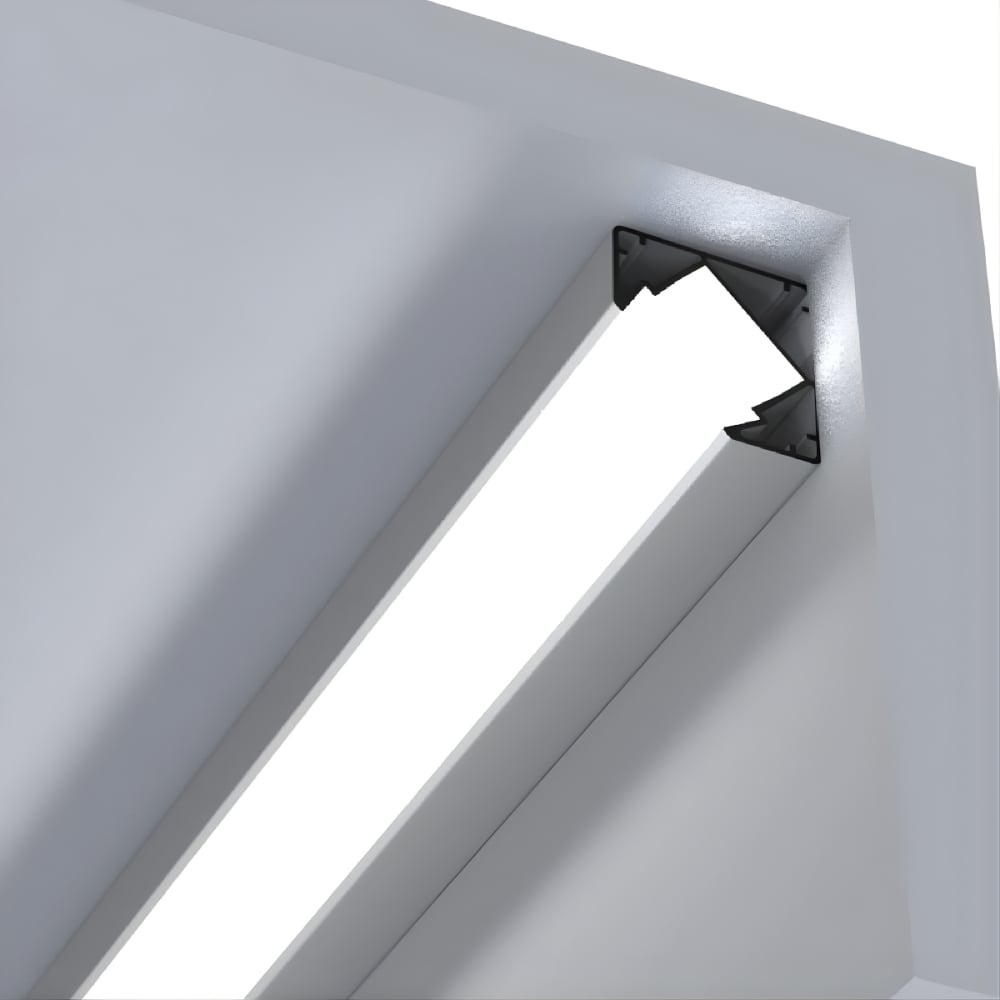

Bring architectural accent lighting into any 90-degree corner with this heavy-gauge 45 ° LED Aluminum Profile. The triangular housing hides LED tape while pitching the beam downward at a perfect 45 °, washing ceilings, coves, or under-cabinet backsplashes in a smooth, glare-free glow. Extruded from anodized aluminum for superior heat dissipation, the profile accepts LED strips up to 18 mm wide and is finished with a snap-on frosted polycarbonate lens that evens out hotspots for a clean, unified line of light.

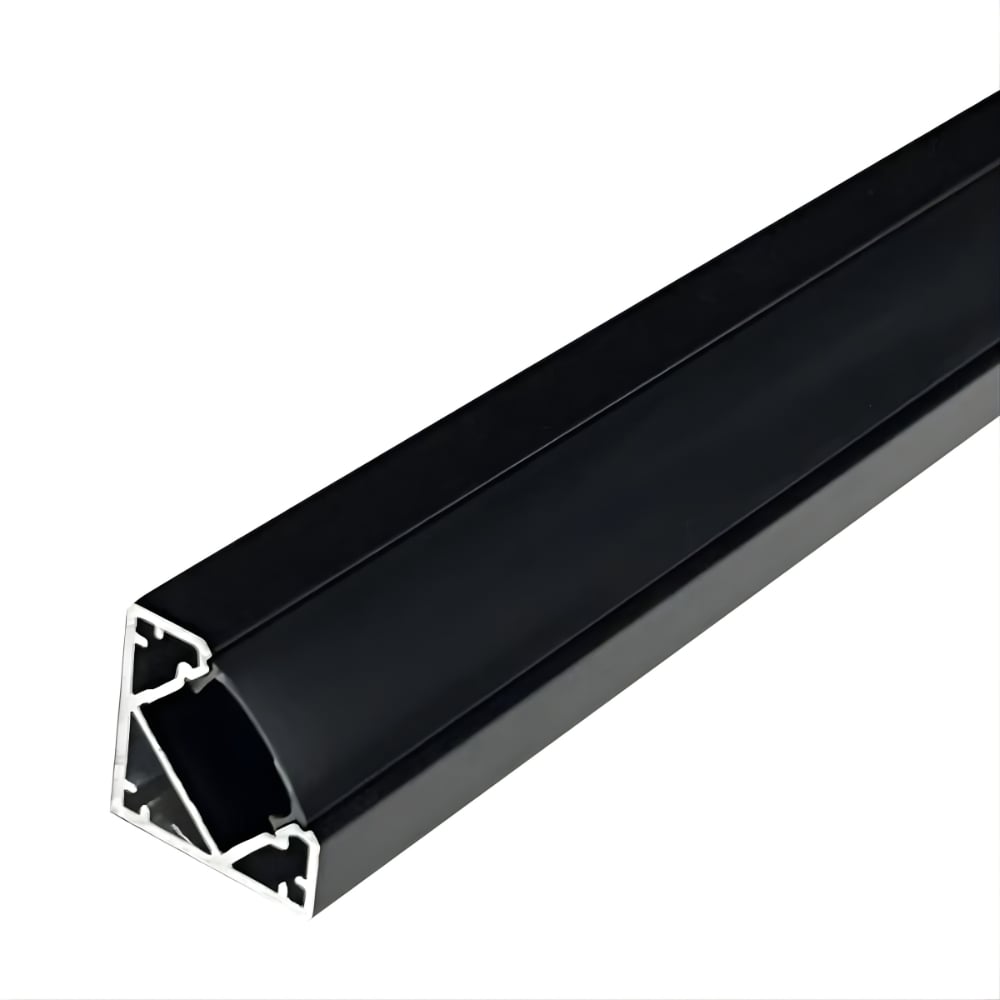

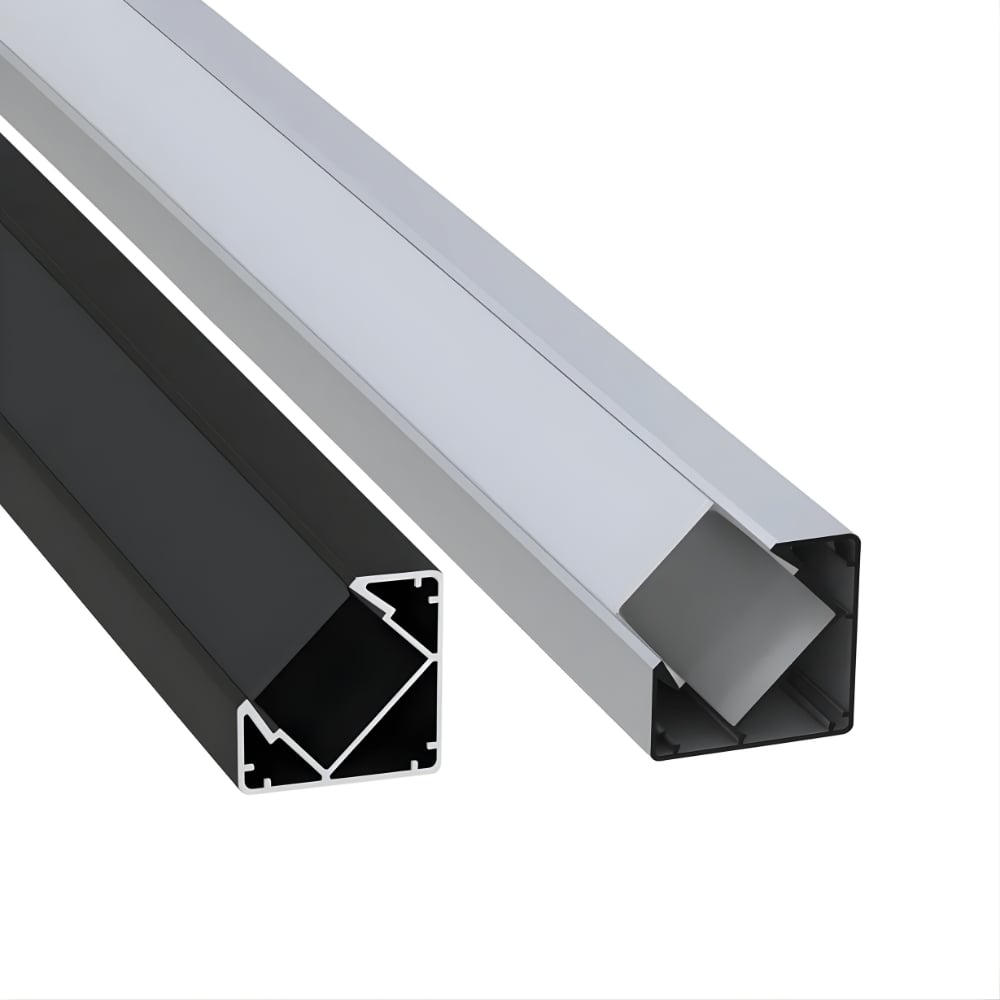

Available in silver, black, or white, each set ships with matching end caps and spring clips so installers, millworkers, and DIYers can achieve a flush, high-end finish on drywall, wood, MDF, or metal substrates. LED strip not included.
To get recommended LED Strip lighting, [CLICK HERE]
Specifications Table
| Feature | Detail |
|---|---|

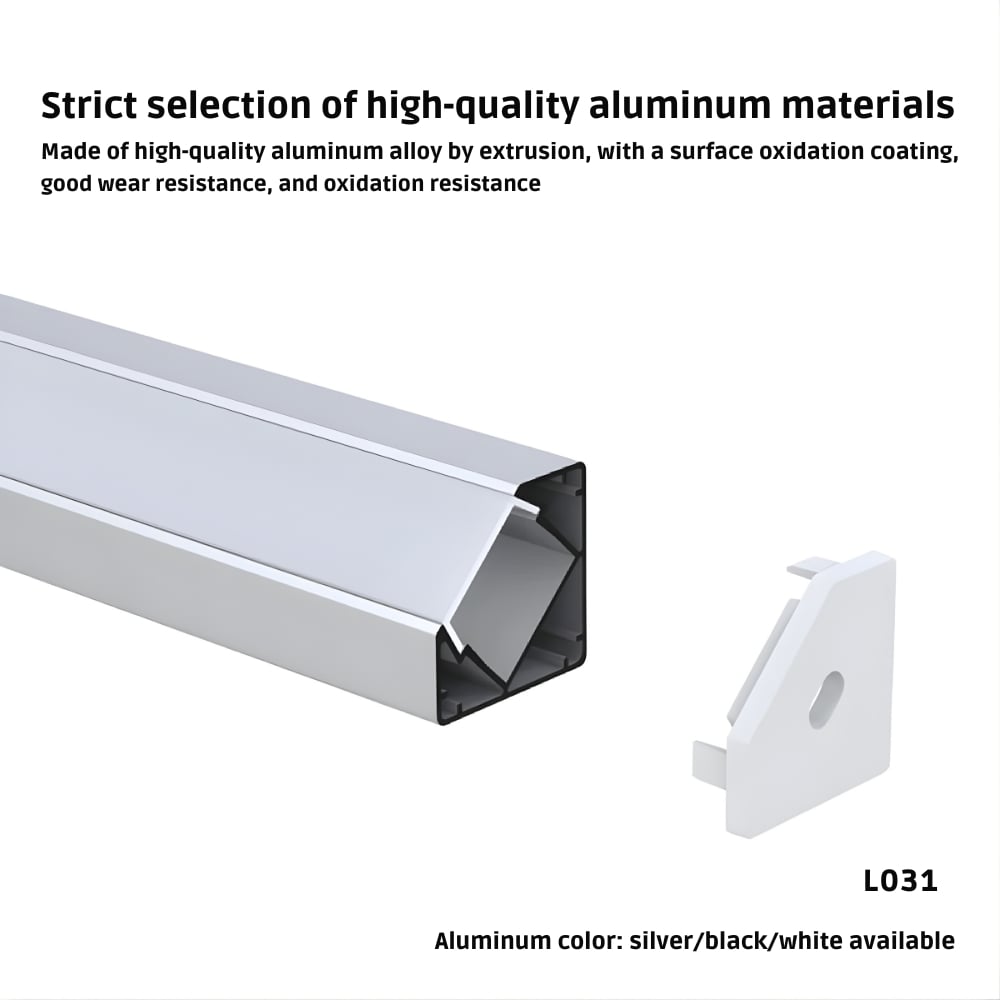

| Material | Anodized Aluminum Body + Frosted PC Diffuser |
| Mounting Style | Surface-Mount – 45 ° Corner |
| Channel Width × Height | 22 mm × 22 mm (0.87″ × 0.87″) |
| Max LED Strip Width | 18.1 mm (fits most 16 mm COB / SMD tapes) |
| Beam Angle | 45 ° directed output |
| Lengths | 11.81″ (30cm) , 15.75″ (40cm) , 19.69″ (50cm) , 23.62″ (60cm) , 27.56″ (70cm) , 31.50″ (80cm) , 35.43″ (90cm) , 39.37″ (100cm) , 43.31″ (110cm) , 47.24″ (120cm) , 51.18″ (130cm) , 55.12″ (140cm) , 59.06″ (150cm) , 63″ (160cm) , 68″ (173cm) , 73″ (185cm) , 79″ (200cm) |
| Finish Colors | Silver, Black, White |
| Diffuser | Snap-on Frosted – soft, uniform glow |
| Kit Includes | Aluminum channel, frosted cover, 2 × end caps, 2 × mounting clips & screws |
| Ideal Applications | Ceiling/reveal edges, under-cabinet, retail coves, workstation task lighting |
Installation Notes
Plan your run – Dry-fit the profile in the corner; mark power-entry points before cutting.

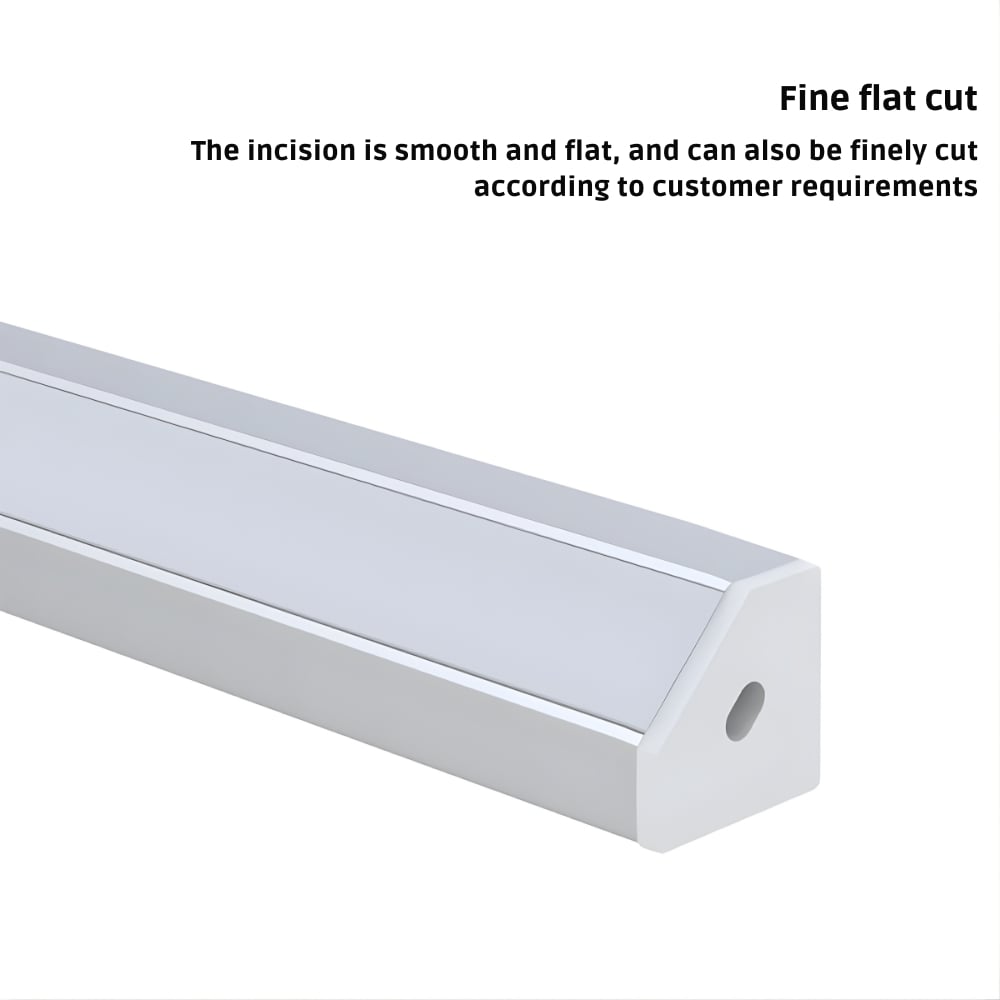

Trim to length – Use a fine-tooth miter saw or hacksaw; deburr for flush lens seating.
Mount clips – Screw stainless spring clips 40–60 cm apart, ensuring both walls of the corner are engaged.
Apply LED tape – 5 V/12 V/24 V strips up to 18 mm wide; test illumination before final snap-in.

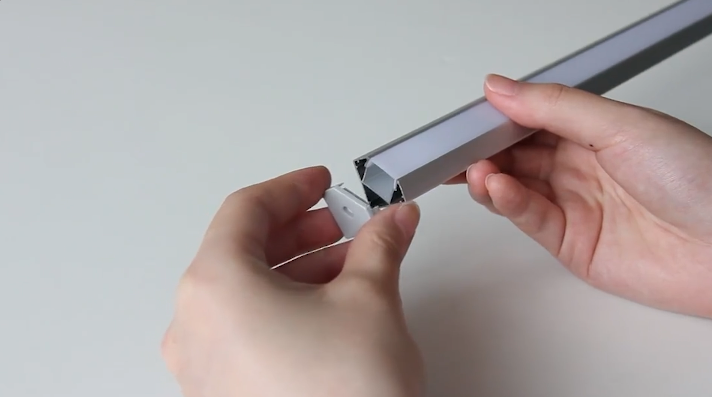

Snap on diffuser & end caps – Press until you hear a click; optional silicone sealant keeps dust out in kitchens or workshops.
