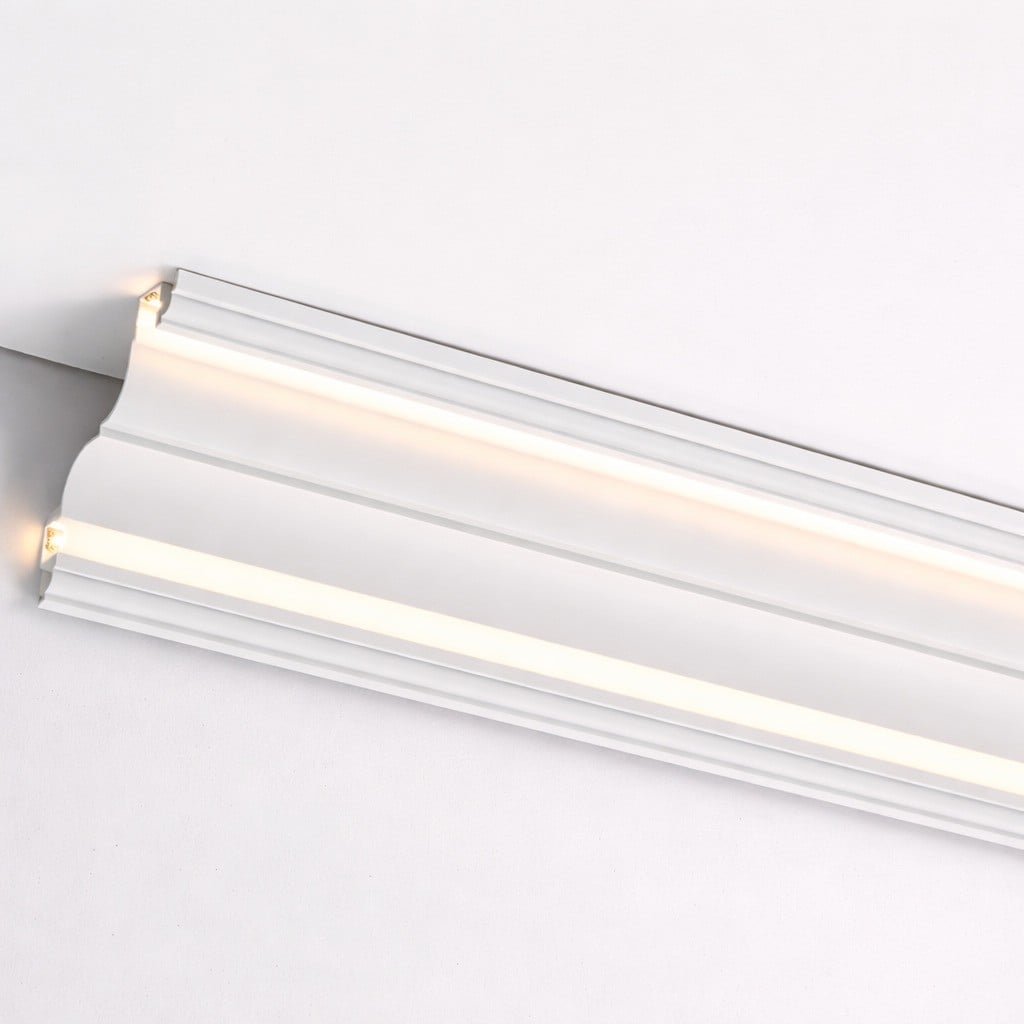

The MM-151 and MM-152 are architecturally styled aluminum LED channel profiles, designed for ceiling and wall corner installations to create elegant up-and-down wall-wash lighting effects. Crafted from high-grade anodized aluminum alloy, these profiles offer a sleek, durable, and professional finish that blends seamlessly into modern residential or commercial interiors.
Delivering both upward and downward illumination, this surface-mounted crown-molding LED profile hides the light source within an opal PC diffuser, shaping illumination into a soft, continuous glow for a “see the light, not the fixture” aesthetic. The 12.5 mm (0.49inch) slot accommodates most 8–12 mm (0.31-0.47inch) LED tapes (COB or SMD), while each profile can be field-cut and mitered for precise room transitions.
Ideal for corridors, coves, lobbies, and feature walls, the MM-151 and MM-152 combine architectural performance and visual elegance for seamless ceiling and wall integrations.
| Feature | Detail |
|---|---|
| Model Options | MM-151 • MM-152 |
| Material | Aluminum alloy housing + opal polycarbonate diffuser |
| Finish | Anodized, matte white |
| Mounting Type | Surface-mounted at ceiling or wall corner (screw or adhesive assist) |
| Light Direction | Up & Down (bi-directional wall washing) |
| LED Channel Width | 12.5 mm (0.49 in) — fits 8–12 mm LED tape (LED not included) |

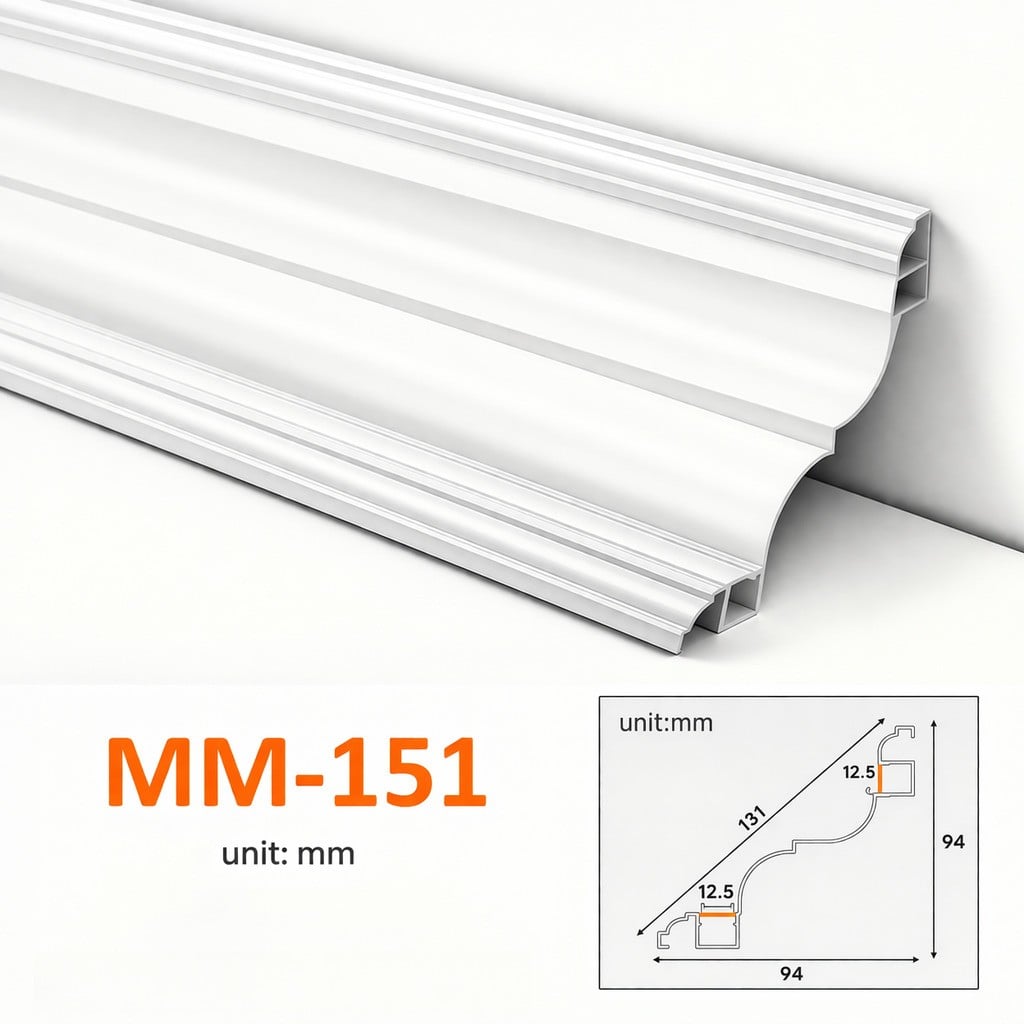

| Profile Size (MM-151) | 94 × 94 mm (3.70 × 3.70 in); diagonal 131 mm (5.16 in) |

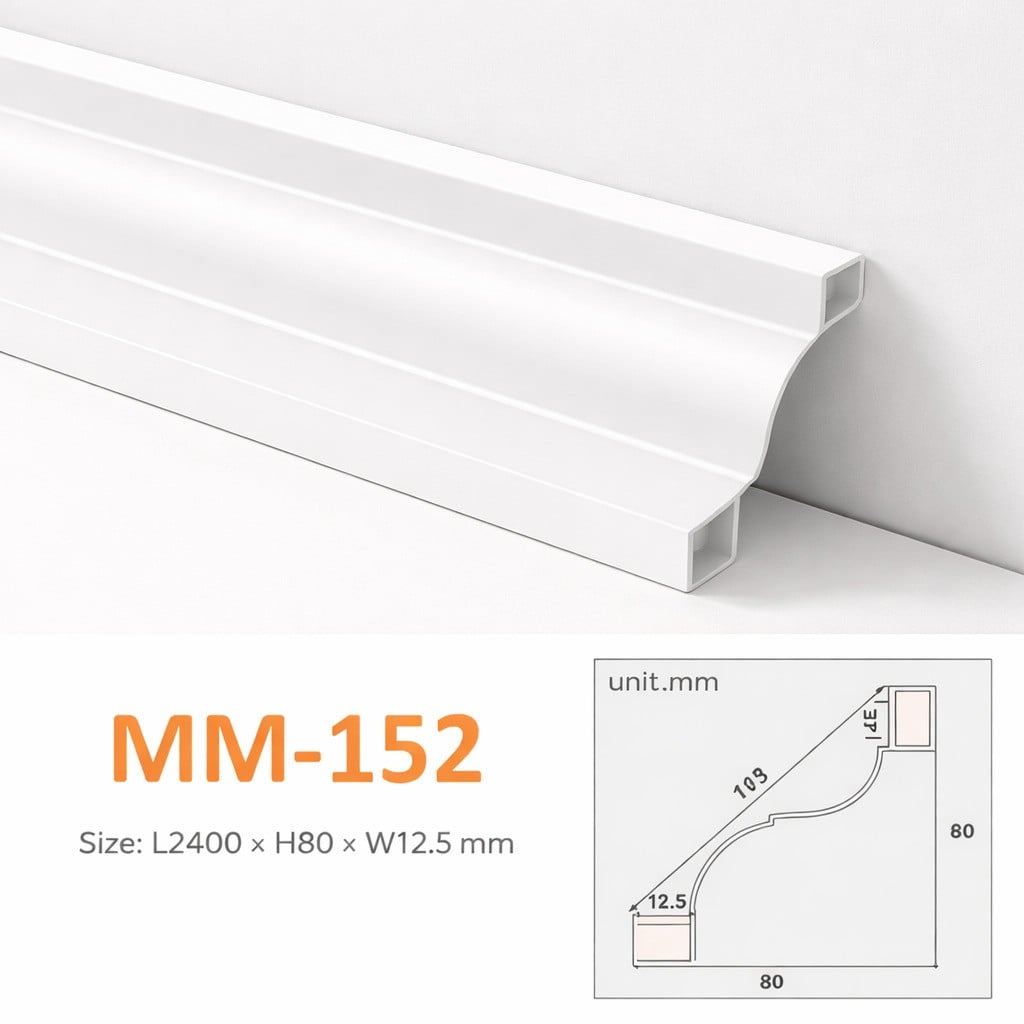

| Profile Size (MM-152) | 80 × 80 mm (3.15 × 3.15 in); diagonal 113 mm (4.45 in) |
| Standard Lengths | 1.6ft (0.5m), 3.3ft (1m), 6.6ft (2m) — field-cuttable |
| Compatible LED Strips | 12 V or 24 V DC flexible LED tape |

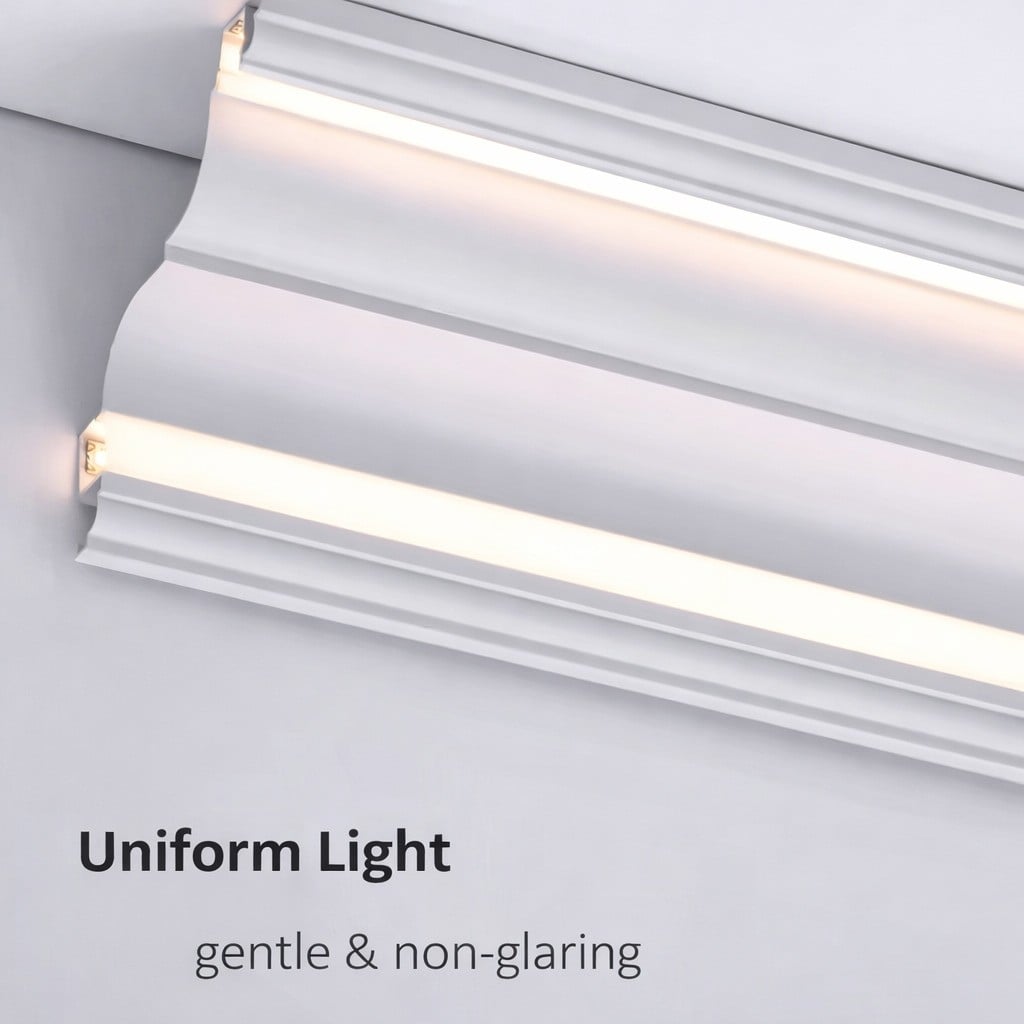

| Diffuser Type | Opal (milky) PC diffuser for dot-free, glare-reduced output |
| Applications | Ceiling-wall transitions, corner illumination, coves, feature walls, and architectural accents |

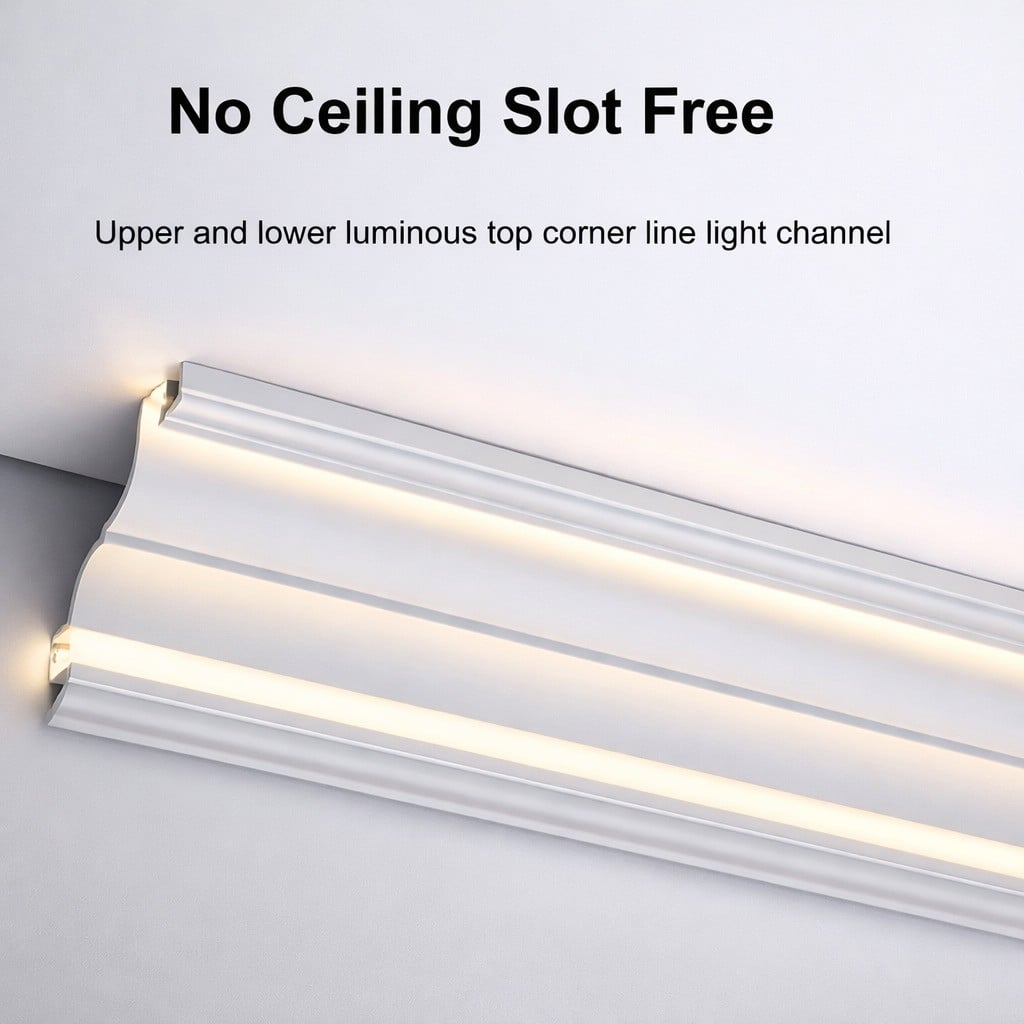

| Installation Surface | Drywall or wood corners; no ceiling slot cutting required |
| Included in Package | Ceiling & Drywall Aluminum Profiles only — no LED strip, driver, or wiring included |
Plan & Measure – Mark the lighting layout and confirm wall/ceiling corner alignment; locate fixing points for screws or anchors.
Pre-Wire – Route low-voltage cables from the driver to each profile location, ensuring correct polarity.
Cut & Miter – Trim the profiles with a fine-tooth miter saw and dry-fit corners for precise alignment.
Mount the Profile – Apply construction adhesive if desired, then fasten the profile to the corner using countersunk screws at consistent intervals.
LED Installation (Optional) – Clean the channel interior and apply your chosen 8–12 mm (0.31-0.47inch) LED strip (sold separately); manage leads neatly within the cavity.
Attach Diffuser – Snap the opal PC cover evenly along the length and add end caps where necessary.
Finish – Test fit, seal seams, and apply finishing paint or touch-ups for a clean, integrated result.
