Special Offer: Use code LABOR4 in cart
$19.00
Model number: CDP-015
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00

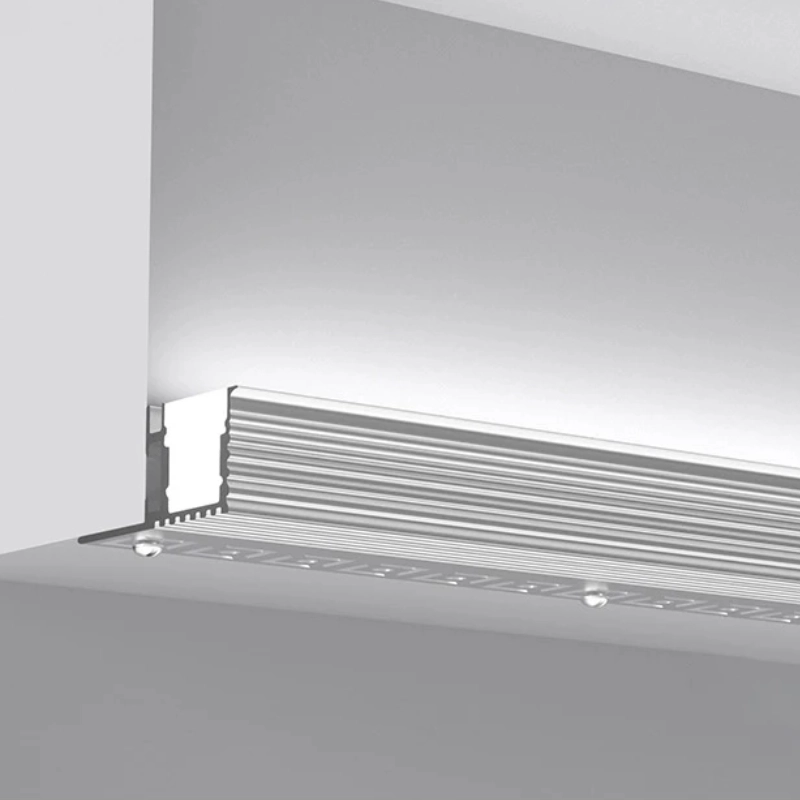

Elevate coves and ceiling perimeters with this plaster-in aluminum lighting channel, engineered for perfectly flush, trimless lines in modern interiors. The perforated flanges embed directly into drywall compound, while the deep recessed tray conceals the LED source approximately 20 mm (0.79 in) above the opening—delivering a clean, uniform wall-wash with no visible hotspots.
Crafted from extruded anodized aluminum for maximum heat dissipation and paired with a snap-on frosted PC diffuser, it creates a glare-free ambient glow ideal for corridors, living spaces, hotels, and retail environments. Compatible with 8–12 mm LED tape, this channel ships in contractor-friendly 1.6ft (0.5m), 3.3ft (1m), 6.6ft (2m) Lengths that can be easily cut and joined on site for continuous, seamless runs.
Note: This listing includes Ceiling & Drywall Aluminum Profiles only — LED strips, drivers, sensors, and power accessories are not included.
| Feature | Detail |
|---|---|
| Material | Extruded aluminum body + snap-on frosted PC diffuser |

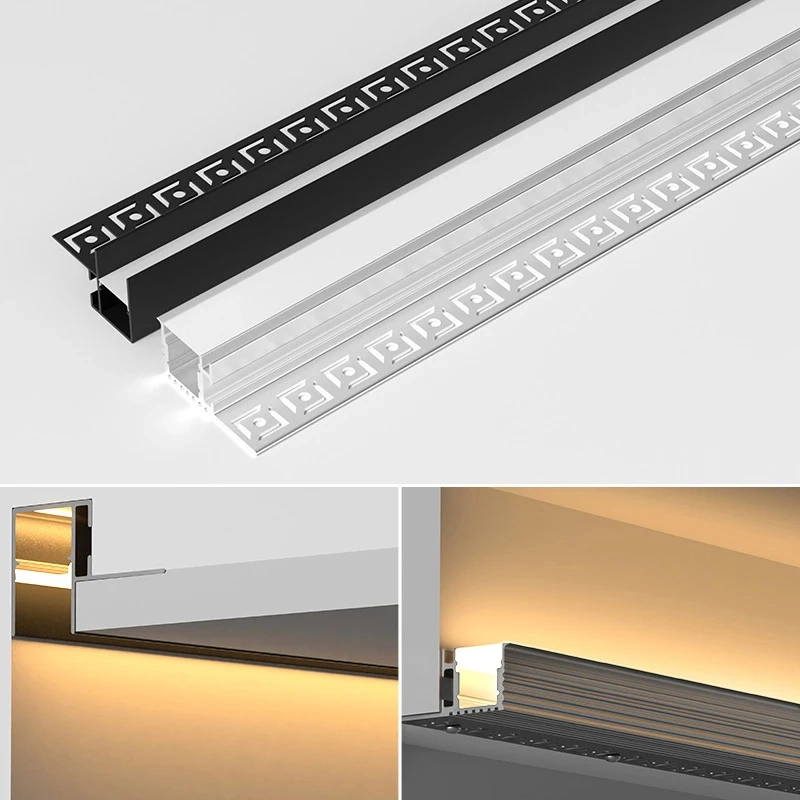

| Finish | Matte silver (anodized); Black available |
| Mounting Type | Trimless plaster-in / drywall recessed (perforated flanges) |
| Light Direction | Indirect cove / wall-wash (hidden source lighting) |

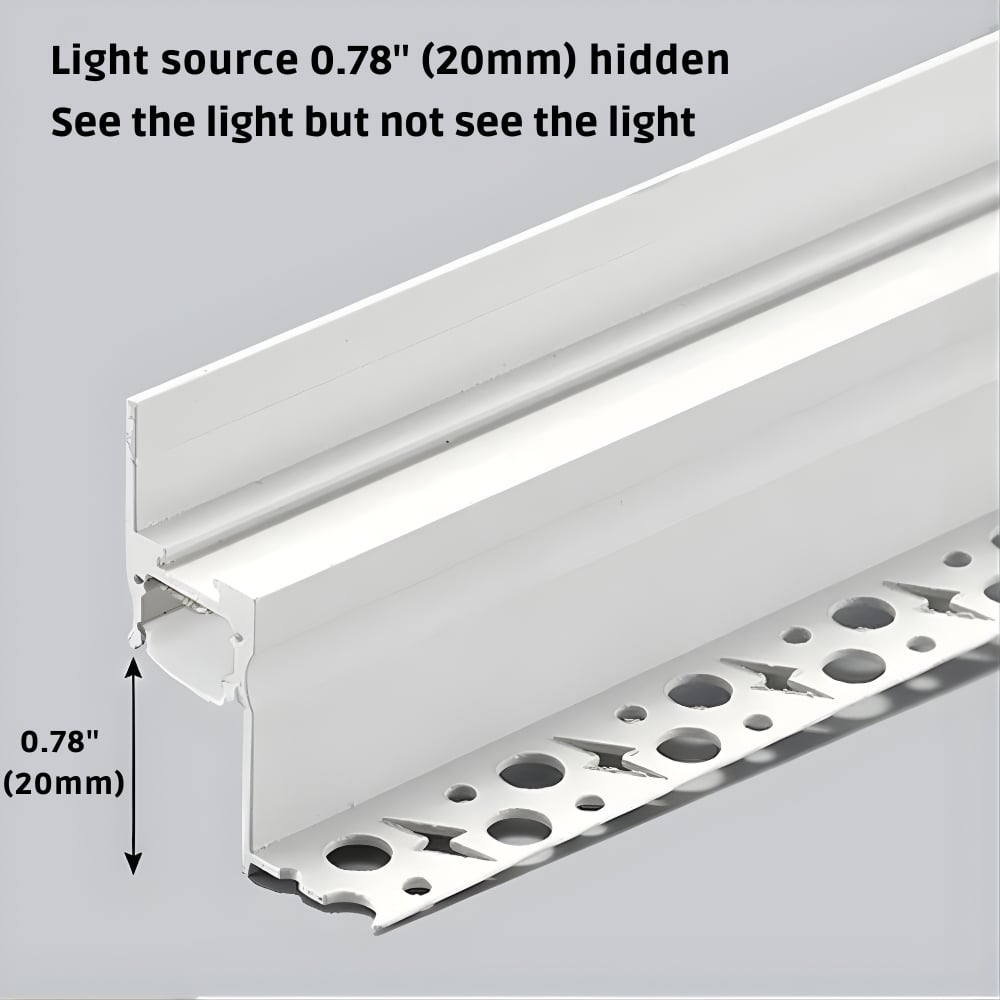

| Hidden Source Depth | 20 mm (0.79 in) recessed from opening |
| Inner Channel (LED) Width | 12 mm max (0.47 in) — fits most 8–12 mm LED tapes (LED not included) |

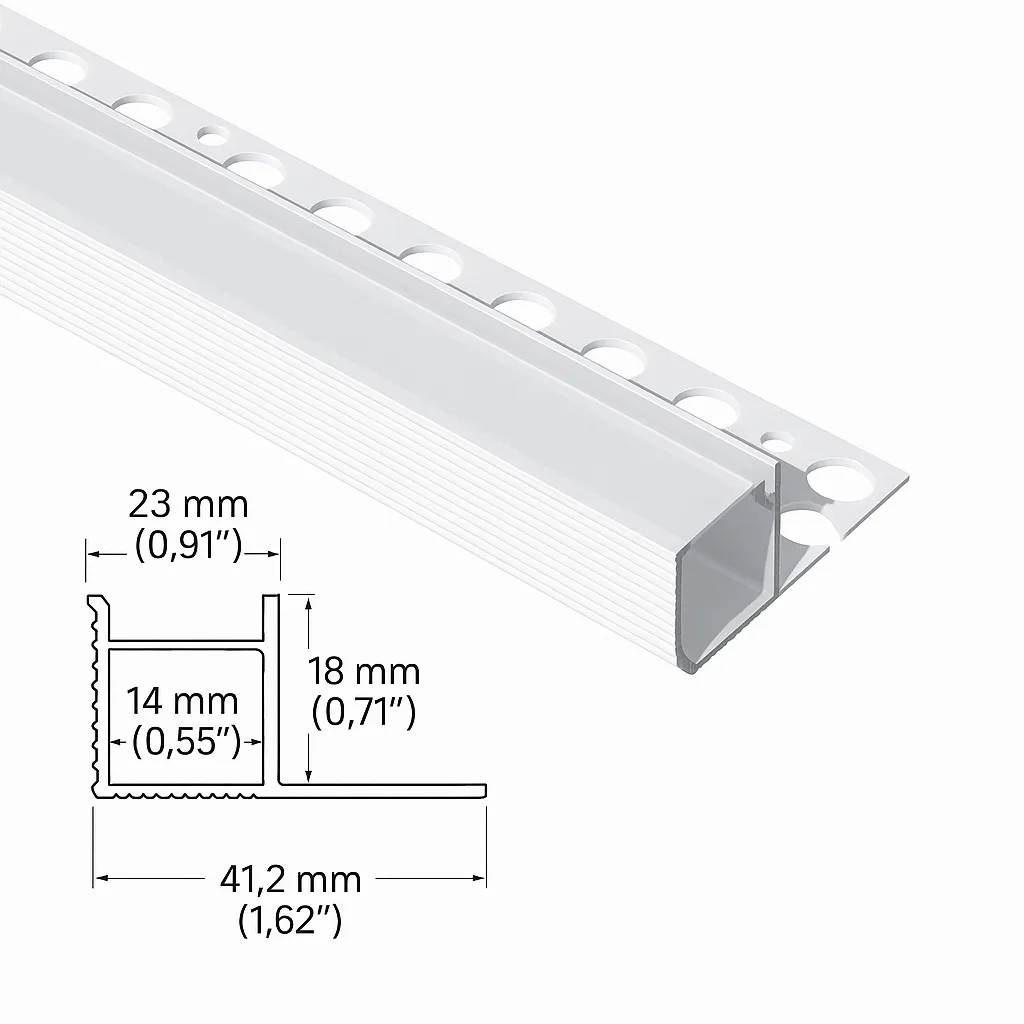

| Overall Height | 23 mm (0.91 in) |
| Visible Slot Height (Reveal) | 18 mm (0.71 in) |
| Mounting Flange Width | 41.2 mm (1.62 in) overall |
| LED Voltage Compatibility | 12–24 V DC LED strips |

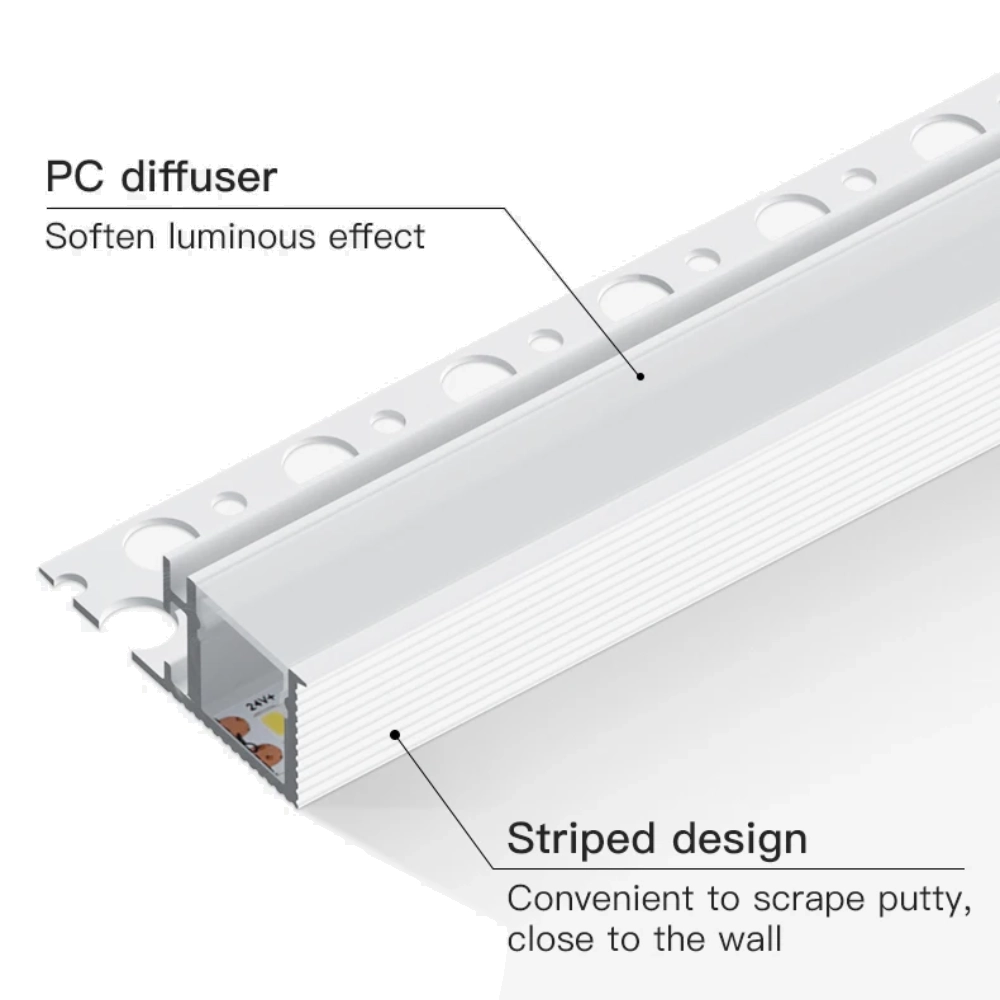

| Cover Type | Frosted (opal) polycarbonate, snap-in diffuser |
| Standard Length | 1.6ft (0.5m), 3.3ft (1m), 6.6ft (2m), field-cuttable; joinable for longer runs |
| Operating Environment | Indoor, dry locations |
| Included in Package | Ceiling & Drywall Aluminum Profiles only — no LED strip, driver, or wiring accessories included |
| Warranty | 5 Years (profile and diffuser only) |

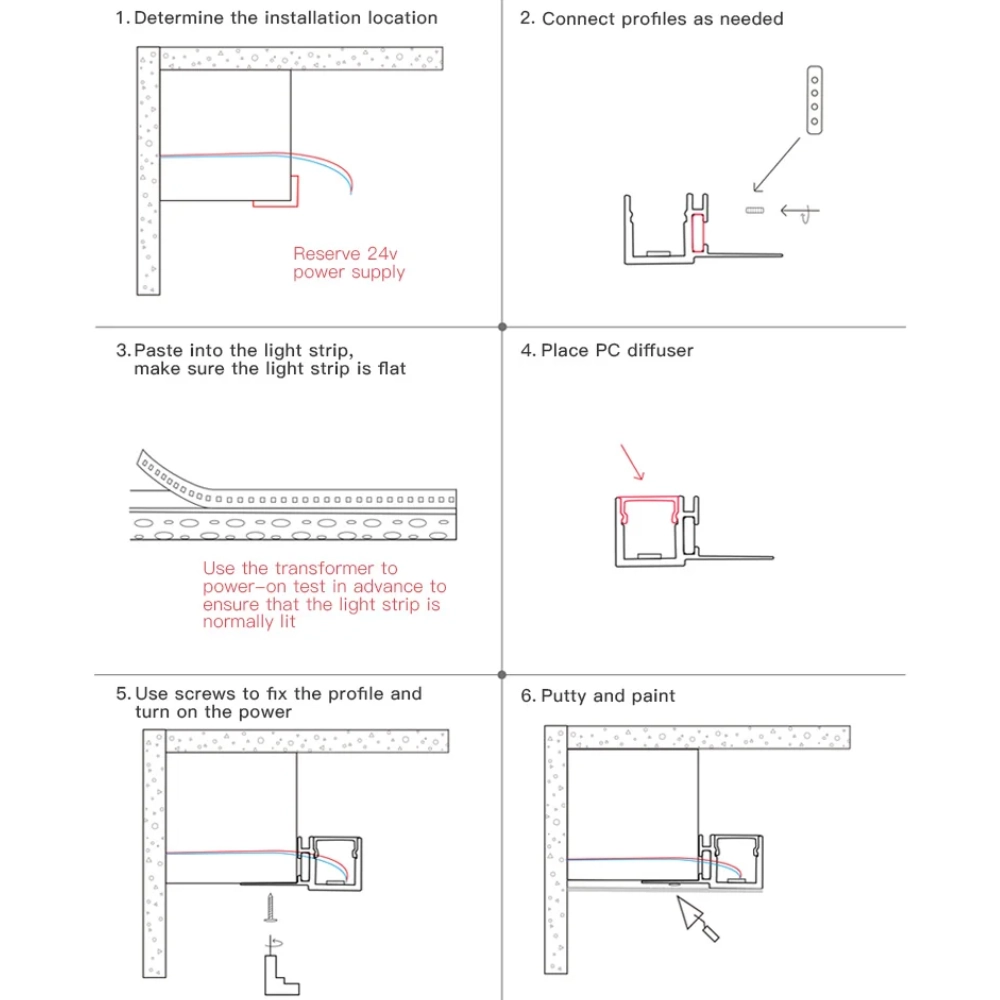

Plan & Prep – Lay out the lighting run and reserve a 12–24 V feed location. Mark straight lines using a laser or chalk line.
Set the Profile – Secure the channel to framing or blocking, ensuring the opening sits flush with the drywall face. Maintain a straight, level alignment.
Plaster-In – Apply joint tape and compound over the perforated flanges. Feather out for a trimless finish, then sand and paint once cured. Keep the light slot clean.
LED Installation (Optional) – Once painted, clean the channel and apply your preferred 8–12 mm LED tape (sold separately). Route leads to a remote driver.
Attach Diffuser – Snap the frosted cover in place after painting to prevent overspray. Add end caps or joiners as needed for continuous runs.
Commissioning (Optional) – Connect to a compatible 12/24 V driver, test for light uniformity, and seal any minor light leaks with caulk for a flawless finish.
