Special Offer: Use code LABOR4 in cart
$19.00
Model number: CDP-018
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00

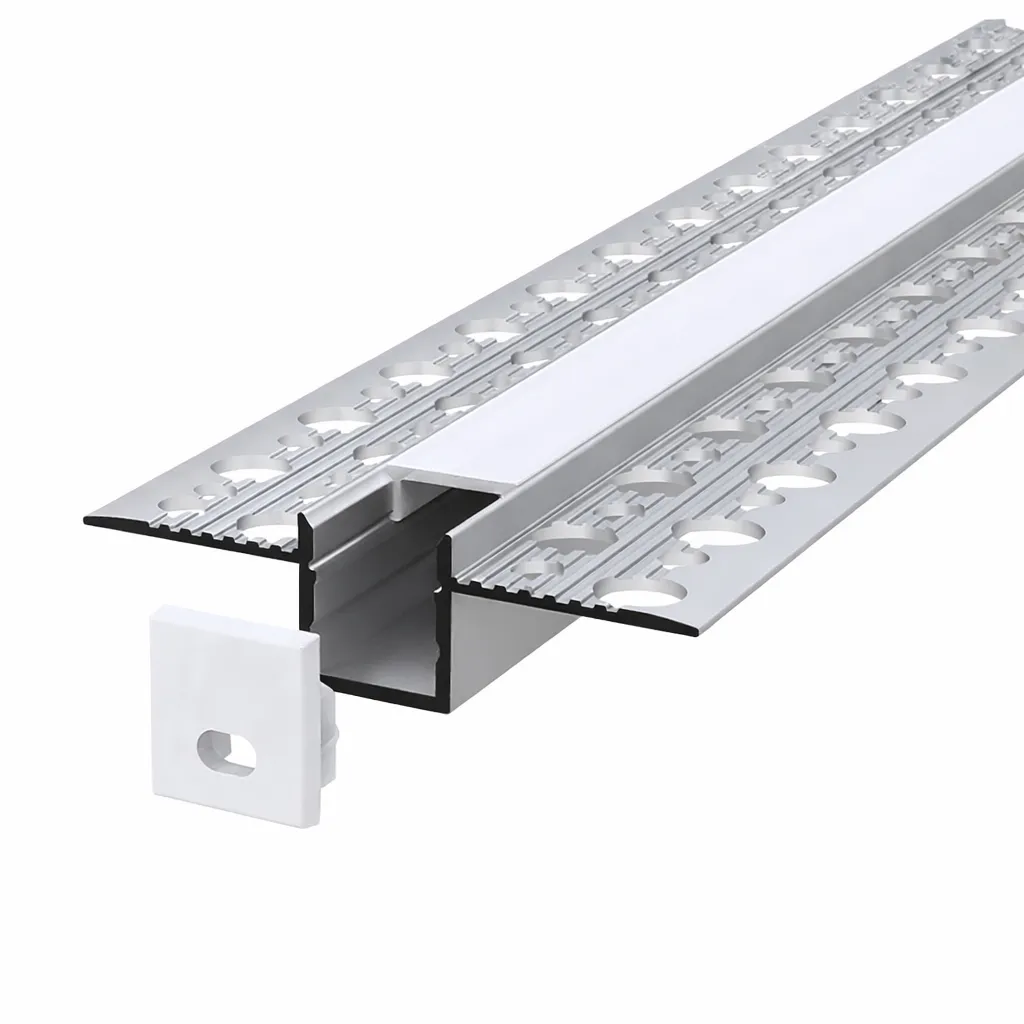

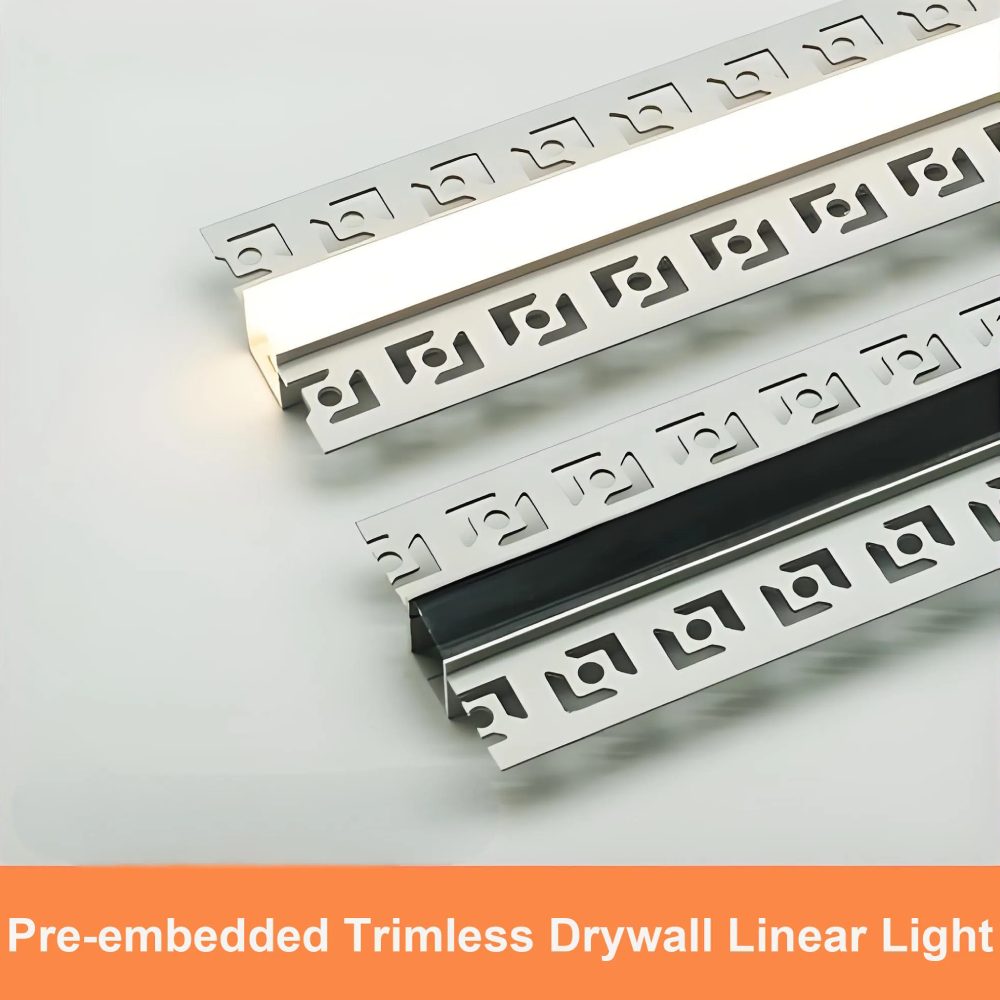

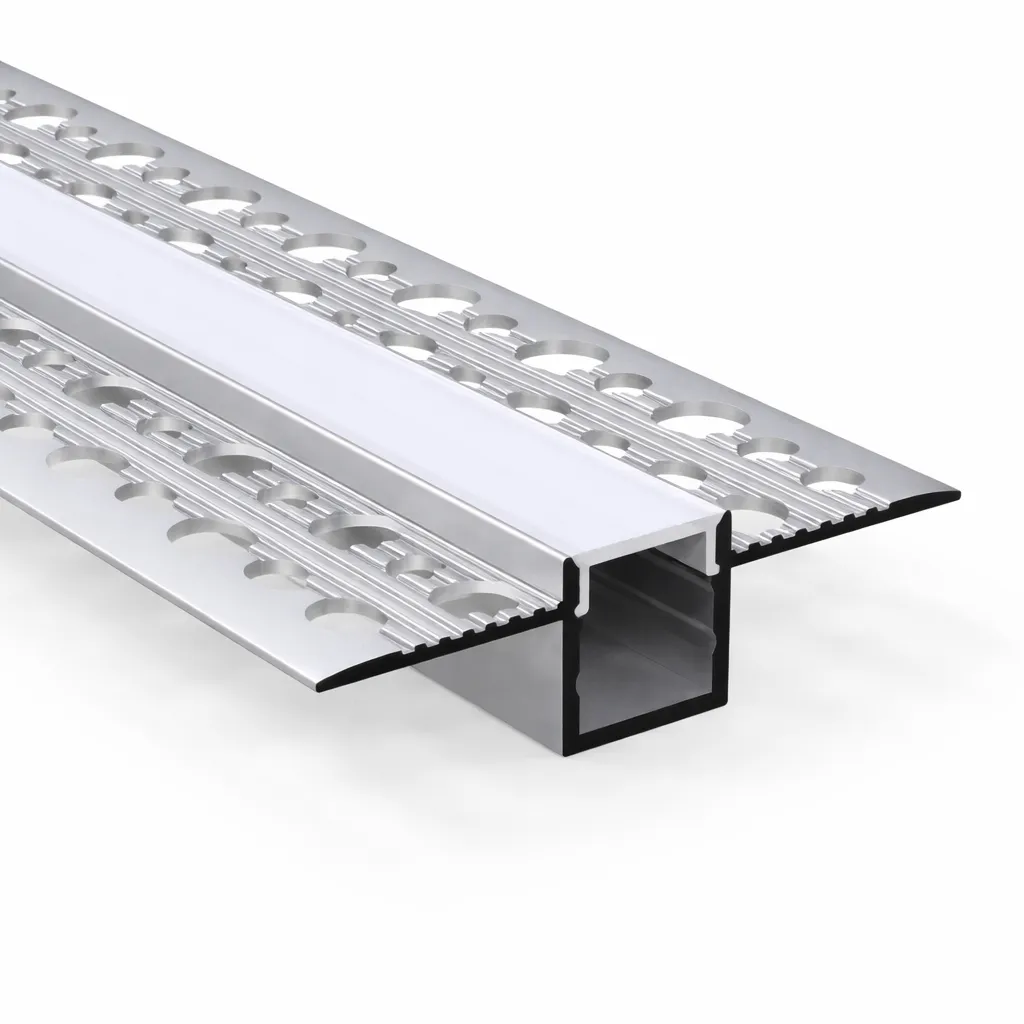

Create a perfectly flush “line of light” in gypsum board with this contractor-grade trimless LED channel, designed exclusively for architectural drywall installations. The perforated flanges embed directly into joint compound for a seamless, built-in reveal, while the anodized aluminum body provides excellent heat dissipation and a premium, durable finish. The snap-on frosted PC diffuser produces a soft, continuous glow when paired with your chosen LED tape—ideal for corridors, feature ceilings, door frames, and reception areas.
Sized for 8–12 mm LED strips, this trimless profile offers fast pre-embed installation and a professional, integrated aesthetic that appears built-in from day one.
| Feature | Detail |
|---|---|
| Profile Type | Trimless drywall LED aluminum channel with perforated flanges |
| Material | Anodized Aluminum + Frosted PC Diffuser |
| Finish | Anodized (Silver) |
| Installation | Pre-embedded into plasterboard/drywall; mud-in trimless finish |
| Compatible LED Strip Width | 8–12 mm (≈ 0.31–0.47 in) — LED not included |
| Overall Width | 52.5 mm (≈ 2.07 in) |
| Channel Depth | 13 mm (≈ 0.51 in) |
| Inner Channel Width | 12 mm (≈ 0.47 in) |
| Flange Width (each side) | 9 mm (≈ 0.35 in) |
| Length | 1.6ft (0.5m), 3.3ft (1m), 6.6ft (2m) |
| Optics / Diffuser | Snap-on frosted PC for uniform, low-glare output |
| Beam Effect | Continuous recessed linear light (depends on LED used) |
| Typical Applications | Corridors, coffered ceilings, door reveals, wall/ceiling joints, and residential or commercial accent lines |
| Power Compatibility | Compatible with 12V/24V DC LED strip lighting systems |
| Included in Package | Ceiling & Drywall Aluminum Profiles only — no LED strip, driver, or wiring included |
Plan & Layout – Determine lighting layout and driver position; ensure space for wiring inside the ceiling or drywall cavity.
Cut & Dry-Fit – Measure and cut the aluminum channel to the required length; test-fit in the drywall slot before embedding.

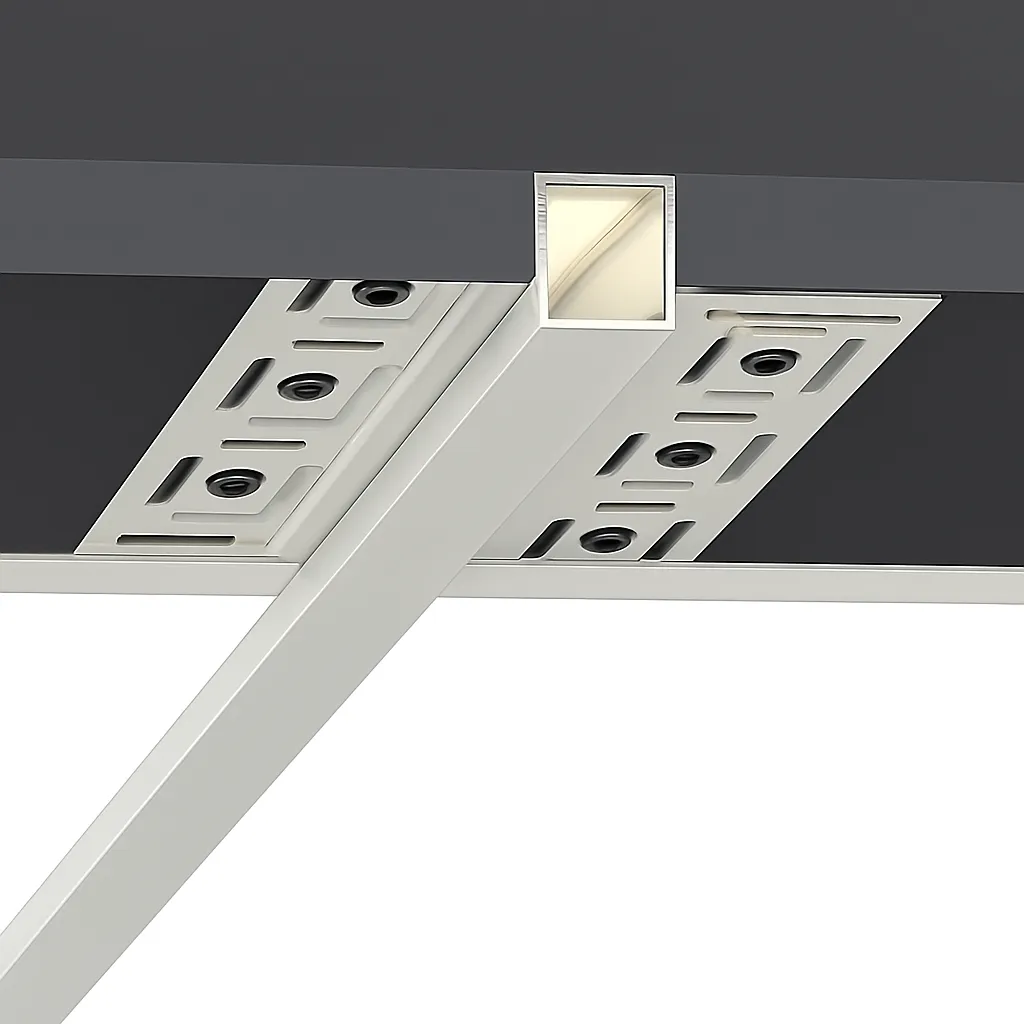

Embed the Profile – Secure through flanges using screws; ensure the channel top sits flush with the drywall surface.
Mud-In Finish – Apply joint compound over perforated flanges and smooth flush with the wall surface. Allow to cure, then sand for a clean edge.
LED Installation (Optional) – Once finished, install your preferred 8–12 mm LED tape (sold separately) inside the channel.
Attach Diffuser – Snap the frosted PC cover evenly into place for a continuous light appearance.
Connect Power (Optional) – Use a compatible 12V/24V DC power supply and dimmer system.
Note:
This product includes Ceiling & Drywall Profiles only.
LED strips, drivers, diffusers, and electrical accessories are not included and must be purchased separately.
