Model number: CDP-020
Trimless recessed drywall wall‑washer channel for a clean “built‑in” glow. Matte white 6063‑T5 aluminum profile with opal diffuser for smooth, glare‑reduced light. Fits up to 0.47inch LED strip (sold separately). Choose 19.6inch / 39.3inch / 78.7inch. Channel only.
$59.00
Original price was: $44.99.$19.00Current price is: $19.00.
Original price was: $16.00.$9.00Current price is: $9.00.
$12.00
$19.00
$19.00
$19.00
$19.00
$19.00
$39.00

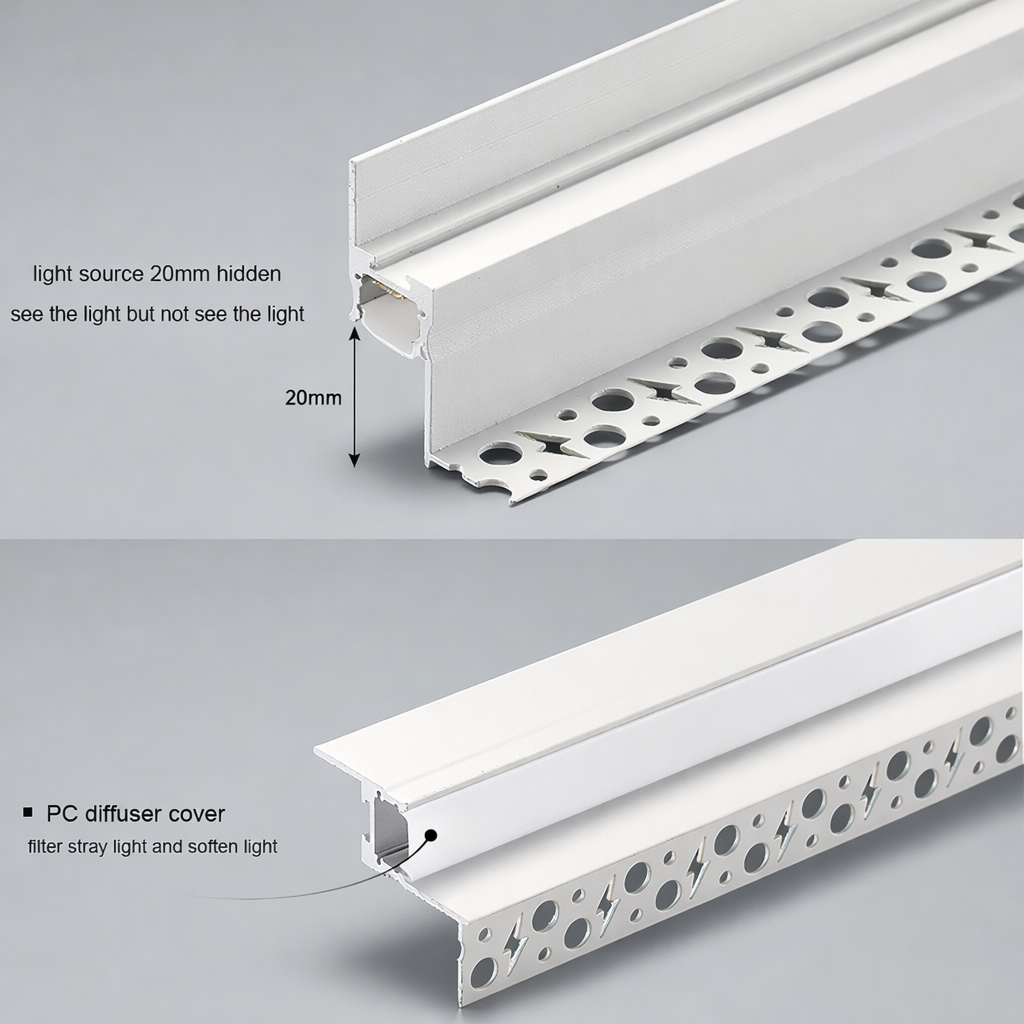

Deliver a clean, architect‑grade wall‑wash from a trimless channel that disappears into the finish. This mud‑in drywall profile installs flush with gypsum ceilings or wall edges so you see the light, not the fixture. The deep asymmetric tray recesses the light source behind an opal PC diffuser to produce a soft, uniform wash of light across adjacent surfaces.
Designed for precision and longevity, this profile is extruded from 6063‑T5 aluminum for excellent heat dissipation and durability. Channel only: LED strip, driver/power supply, wiring, and accessories are sold separately. It supports end‑to‑end alignment for long, continuous lighting runs and fits standard 0.47inch LED tape (SMD/COB). Ideal for residential corridors, feature walls, galleries, hotel details, and millwork reveals, it’s the professional choice for achieving seamless linear illumination.
| Feature | Detail |
|---|---|
| Material | 6063‑T5 aluminum alloy channel + opal PC diffuser |
| Finish | Anodized, matte white |
| Profile Type | Recessed “mud‑in” drywall wall‑washer (T‑profile with perforated wings) |

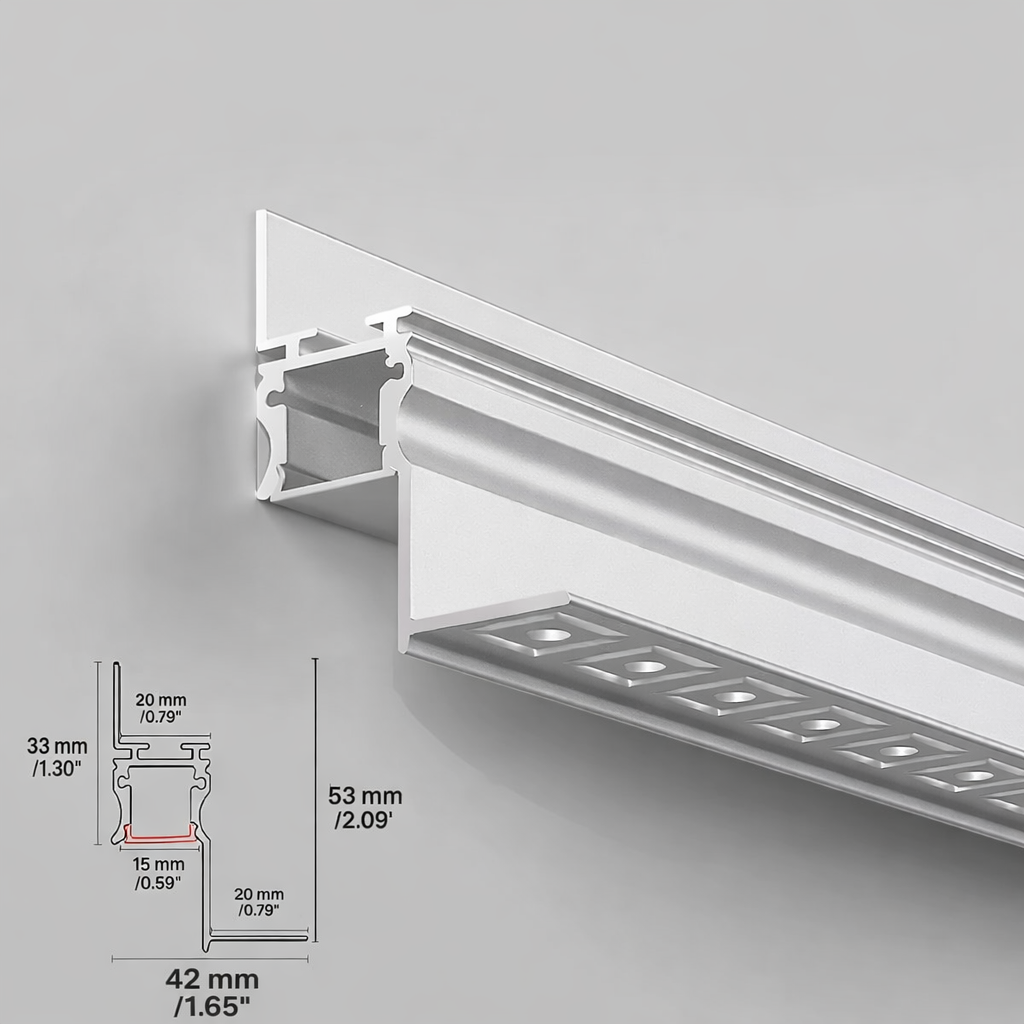

| Overall Size | 2.09 in × 0.79 in |
| Inner Tray Width | 0.59 in LED cavity |
| Max LED Strip Width | 0.47 in — LED strip not included |
| Light Source Compatibility | LED strip (SMD2835 / COB type) |
| Lens Type | Opal (milky) diffuser for smooth, glare‑reduced light output |
| Aluminum Grade | 6000 series, temper T5 |
| Flange Thickness | 0.04 inch perforated mud‑in wing |
| Mounting | Recessed into gypsum/drywall; apply compound over wings for trimless finish |
| Dimming Compatibility | Supported when used with compatible dimmable driver and LED strip |
| Rated Life (with quality LED) | 50,000+ hours (dependent on LED strip used) |
| Length | 1.6 ft (0.5 m), 3.3 ft (1 m), 6.6 ft (2 m) |
| Included in Package | Ceiling & drywall aluminum profile + opal diffuser cover only — no LED strip, driver/power supply, or wiring included |

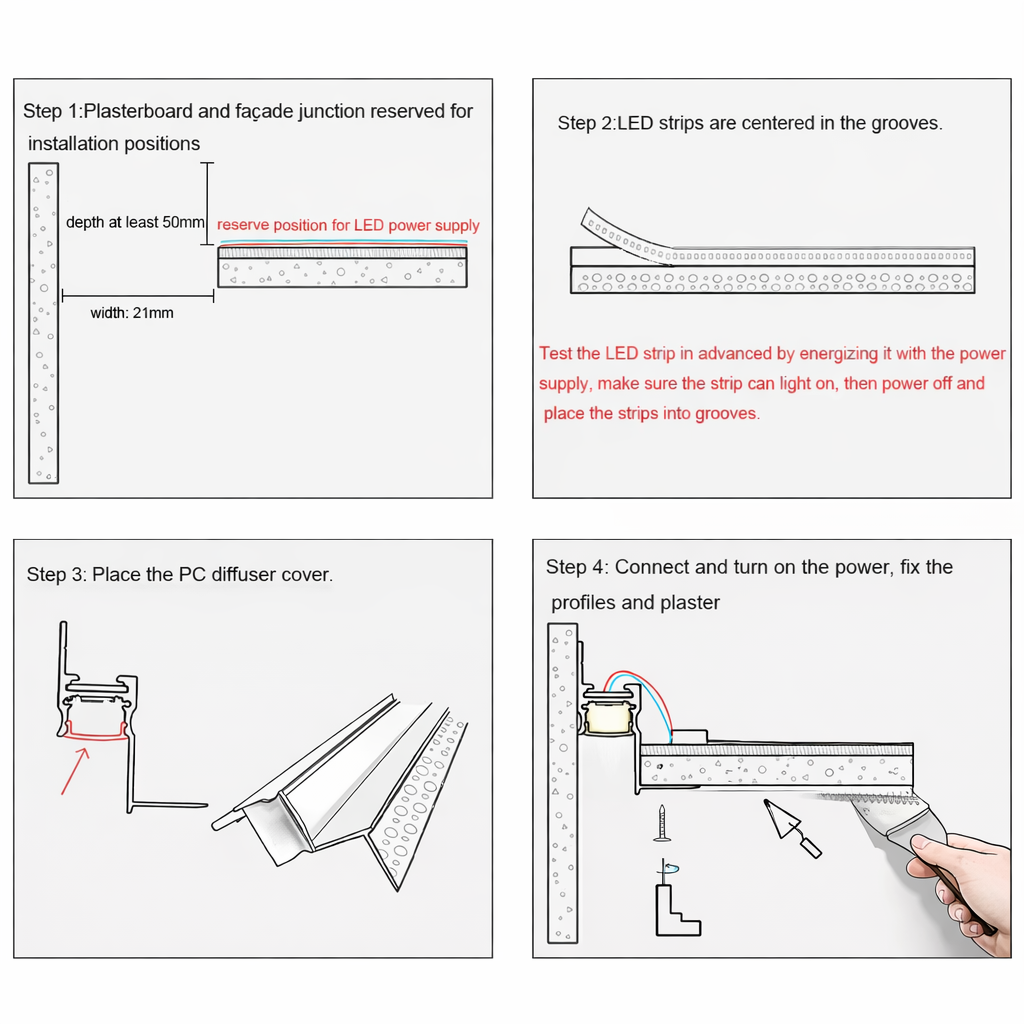

Plan Recess & Services – Reserve a channel in gypsum: approx. 0.83 in width × ≥1.97 in depth for profile, wiring, and driver clearance.
Dry‑Fit the Profile – Cut to length with a fine‑tooth saw; deburr and align along the intended wash direction.
Fix to Structure – Screw the profile securely to the framing or substrate, ensuring the tray sits level and aimed at the wall.
Tape & Mud – Embed the perforated wings with joint compound; feather to a flush finish. Sand and prime once dry.
LED Installation (Optional) – Clean the tray, then install your LED tape (≤0.47inch, sold separately). Test before covering.
Snap Diffuser – Fit the opal cover evenly for smooth, glare‑reduced light diffusion.
Power & Dimming (Optional) – Connect to a compatible LED driver and dimmer system. After final testing, complete the finishing and paintwork.
Note: This product includes Ceiling & Drywall Aluminum Profiles only.
LED strips, power drivers, and related accessories are not included and must be purchased separately.
