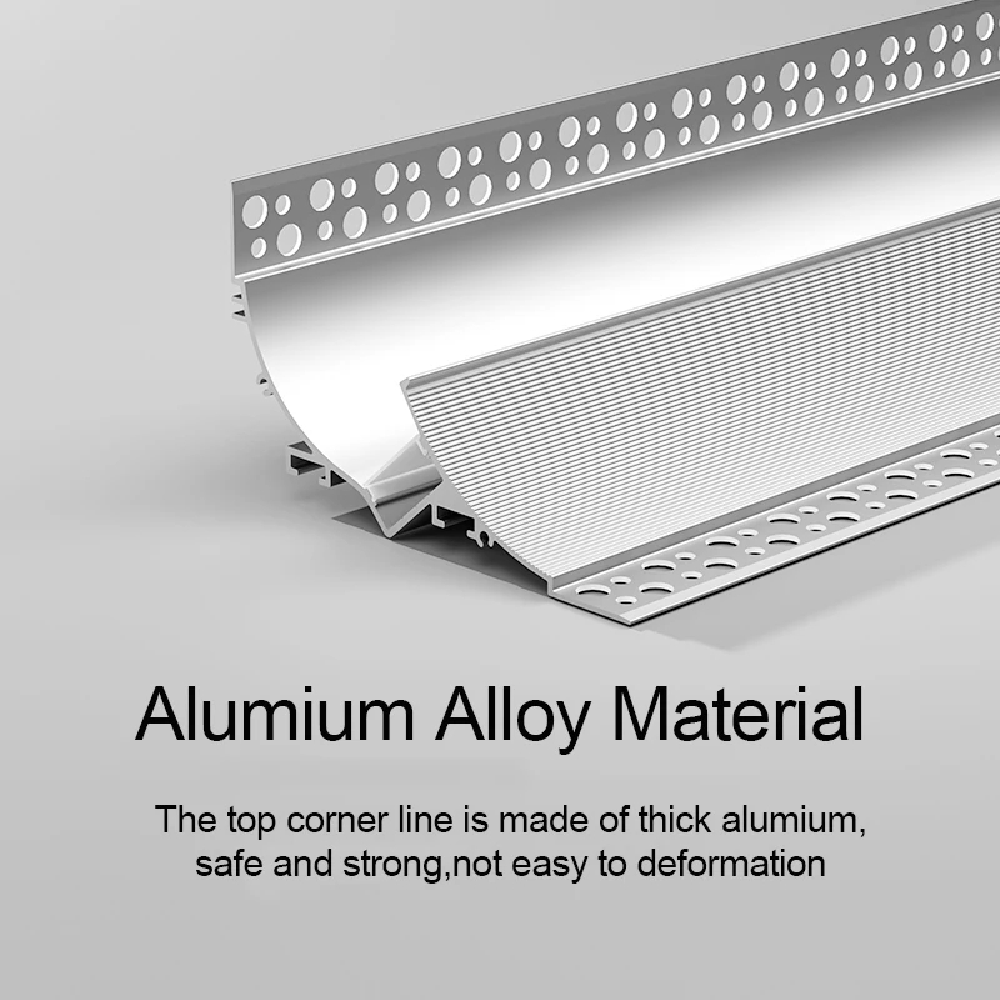

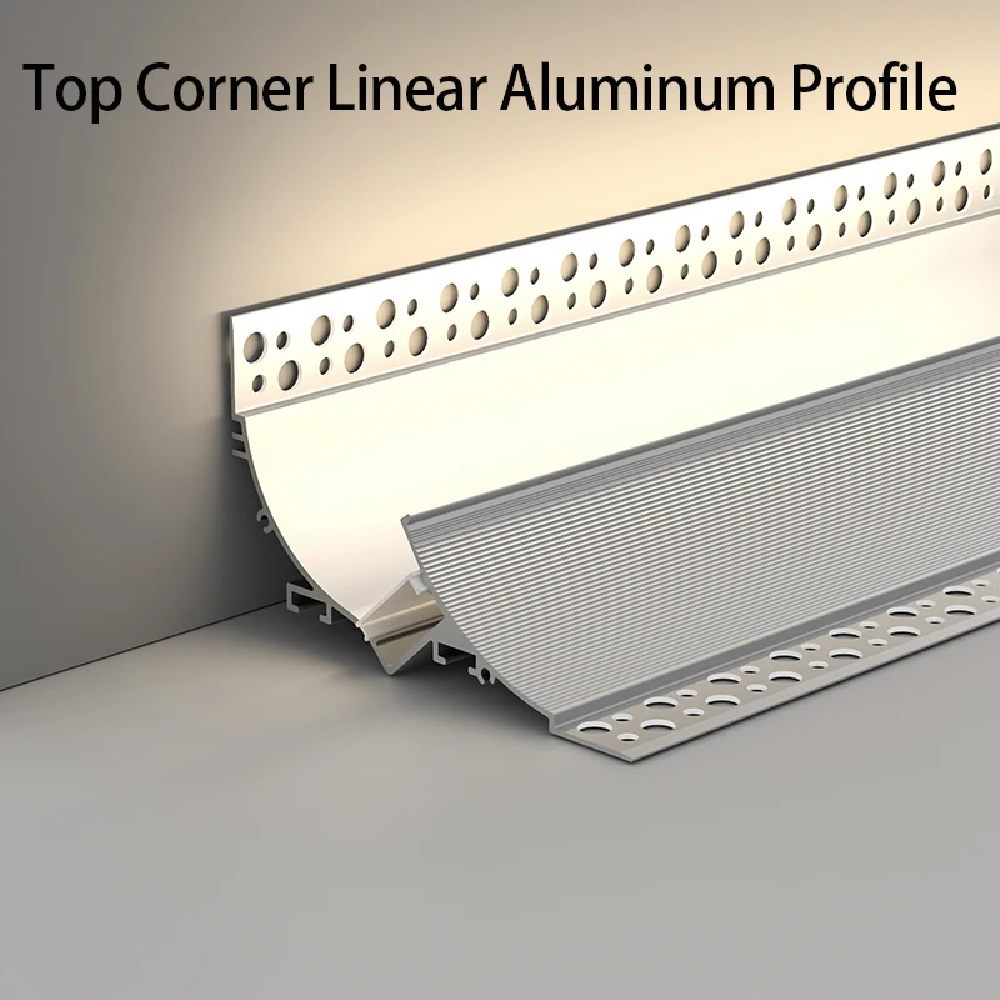

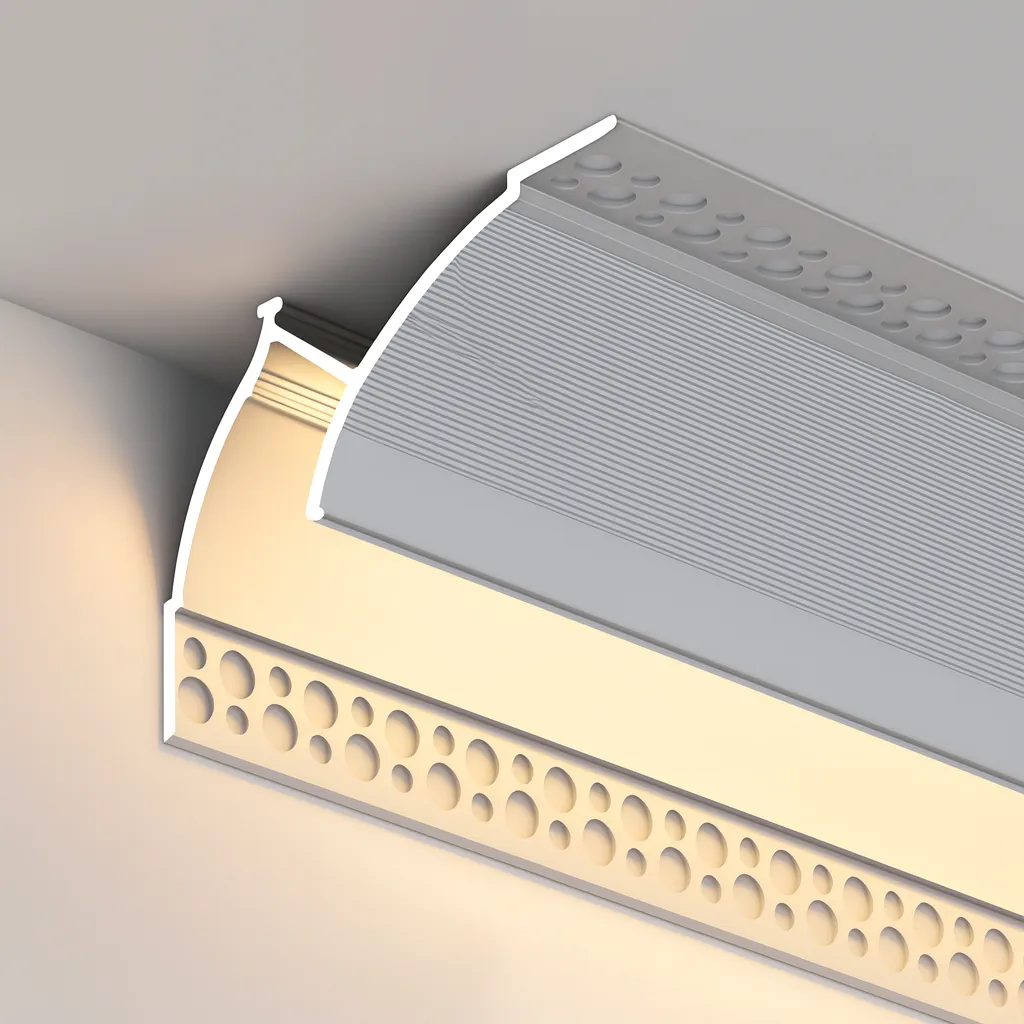

Deliver a clean, architectural wall-wash without millwork. This crown-molding style aluminum profile mounts to the wall or ceiling surface and hides the LED tape behind a deep, curved reflector, producing a soft, continuous glow—“see the light, not the source.” Built from thick, anodized aluminum for excellent heat dissipation and longevity, the channel ships with a milky PC diffuser that evens output and eliminates glare. Four geometry options (A/B/C/D) let you match reveal depth and beam character; wide trays in A/B/C accept up to 21 mm tape for higher lumen builds, while D suits slim 10 mm strips. Field-cuttable lengths and screw-on installation make it contractor-friendly for residential or commercial coves, ceiling perimeters, and baseboard accents. LED strip and power supply are not included.
To get recommended LED Strip lighting, CLICK HERE
Specifications:
| Feature | Detail |
|---|---|

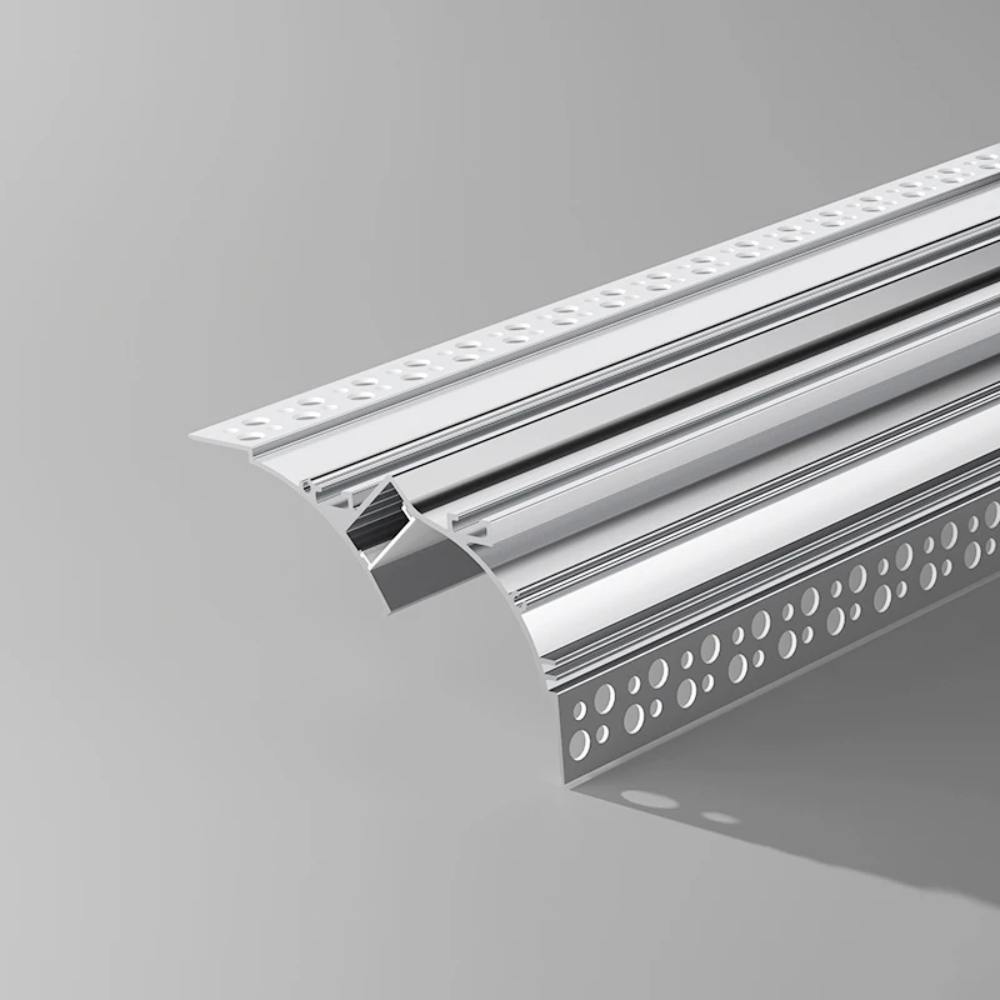

| Material | Extruded aluminum housing + milky PC diffuser |
| Finish | Anodized matte silver (paintable if desired) |
| Mounting Type | Surface-mounted, screw-on (trimless flange allows seam filling if required) |
| Styles | 4 options: A • B • C • D |

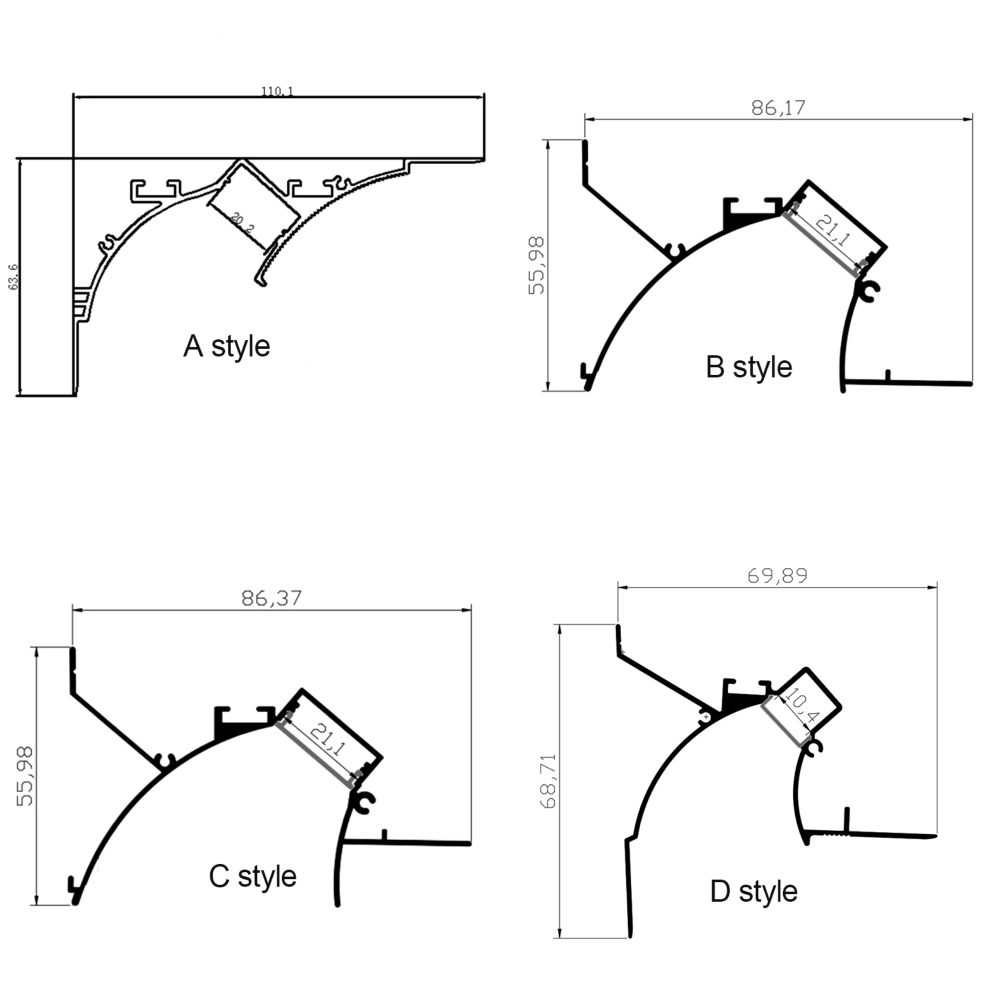

| Profile Dimensions (W × H) | A: 110 × 68 mm (4.33 × 2.70 in) • B: 86 × 56 mm (3.39 × 2.20 in) • C: 86 × 56 mm (3.40 × 2.20 in) • D: 70 × 69 mm (2.75 × 2.71 in) |
| Max LED Strip Width | A/B/C: 21 mm (0.83 in) • D: 10 mm (0.41 in) |

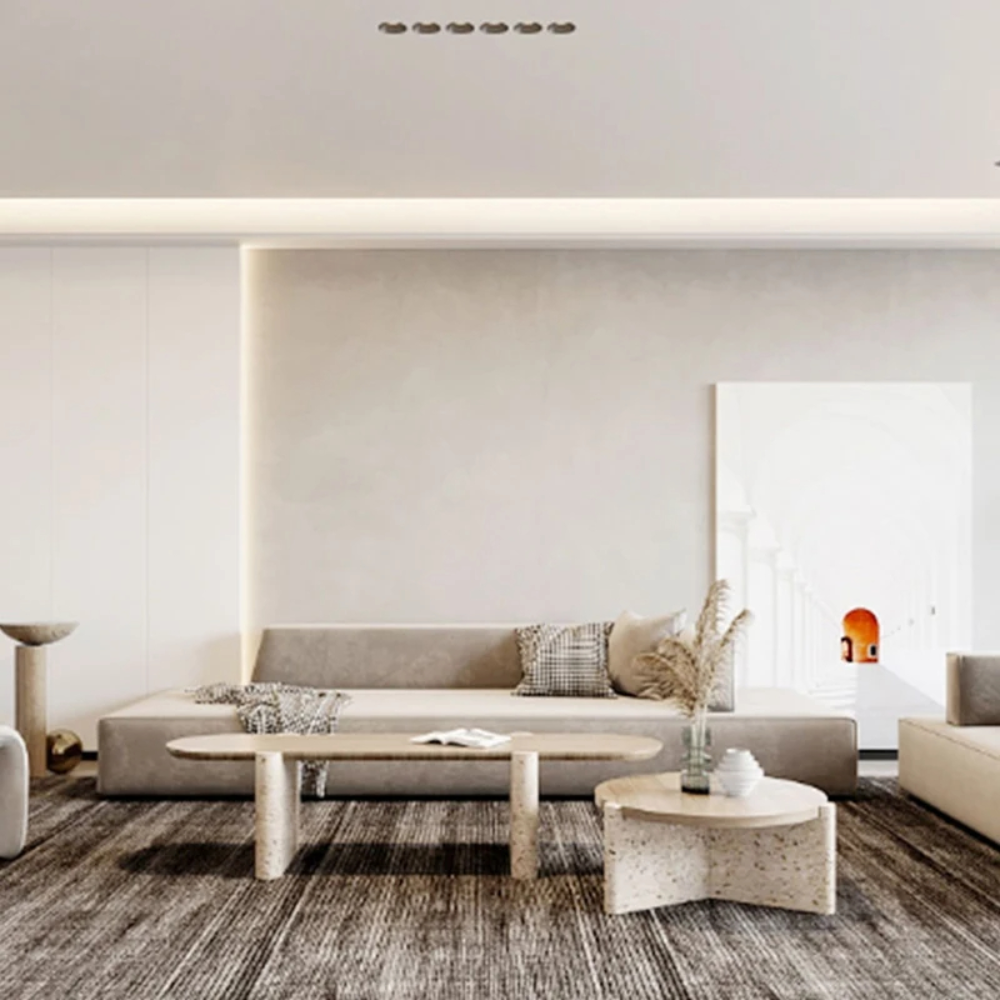

| Light Effect | Indirect wall/ceiling wash; source concealed |
| Length | 1.6 ft (0.5 m), 3.3 ft (1 m), 6.6 ft (2 m) — field-cuttable |

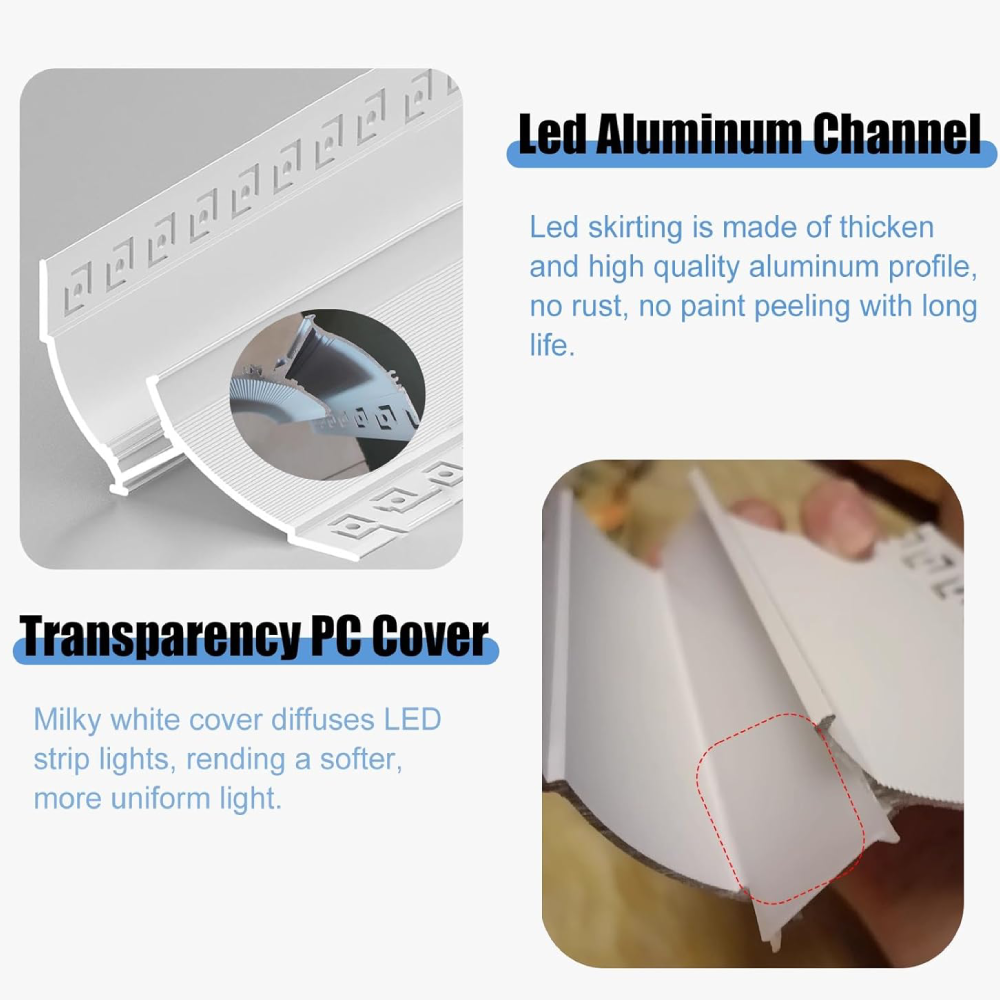

| Diffuser Type | Snap-in polycarbonate, milky (dot-softening) |
| LED Compatibility | 12 V / 24 V white or RGB/CCT tapes (LED strip not included) |

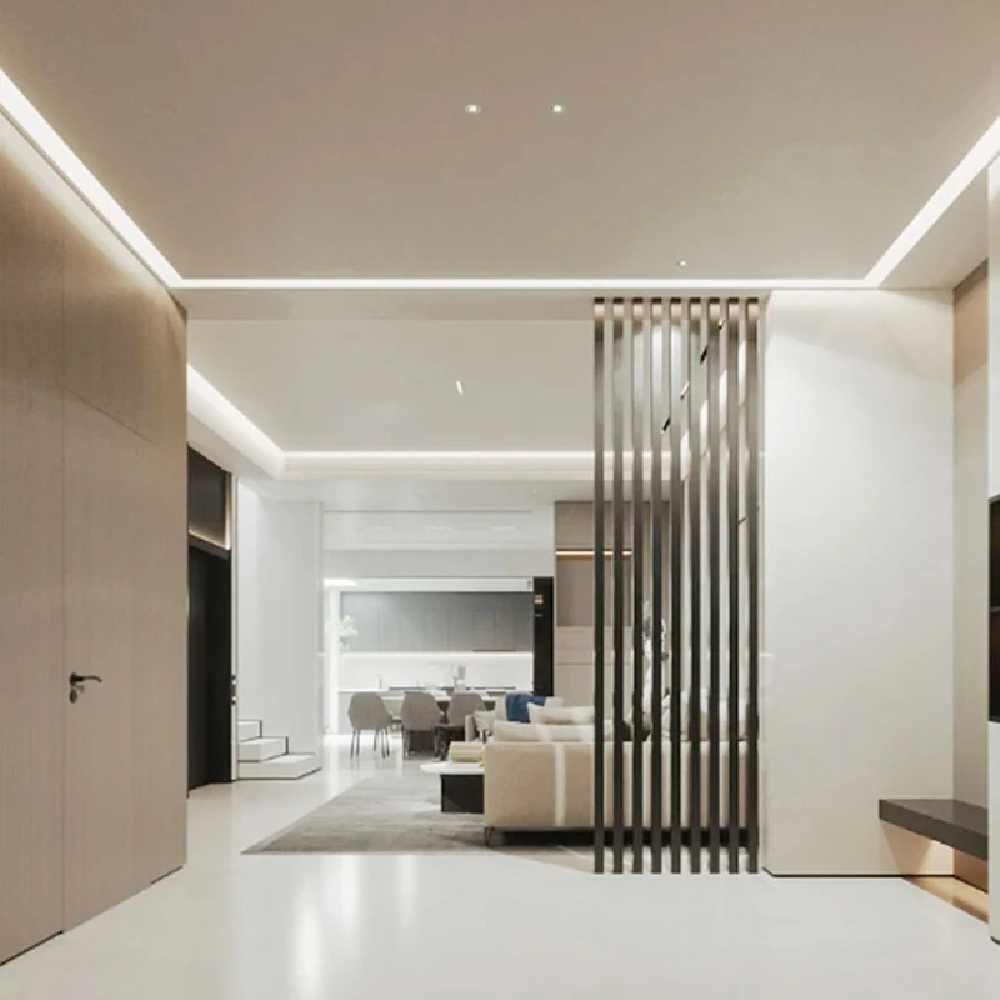

| Typical Applications | Ceiling coves, crown perimeters, baseboards, hotel corridors, retail accents, home theaters |
Installation Guide:
Plan & measure – Choose style (A/B/C/D) to suit your reveal and LED width. Lay out runs and locate feed points and driver space.

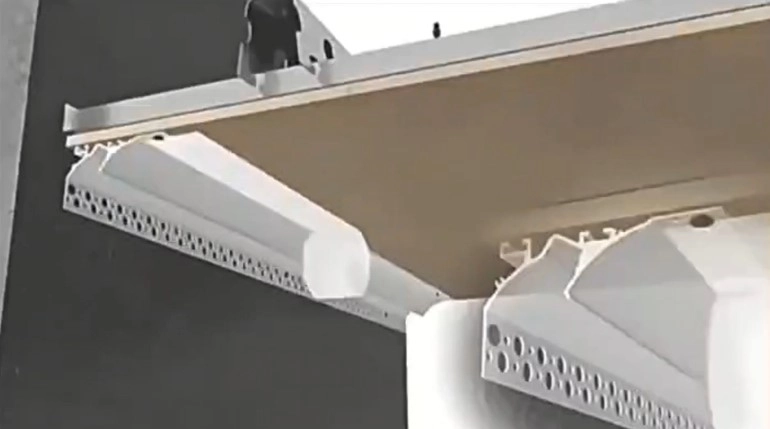

Mount the profile – Mark the line, pre-drill, and screw the aluminum body to framing or to drywall with anchors. (Optional: skim/feather over the trimless flange for a seamless edge.)
Prepare wiring – Pull low-voltage leads to each run. Bench-test the LED tape and driver before install.
Apply LED tape – Clean the tray, remove adhesive liner, and press the strip into the channel (A/B/C ≤ 21 mm; D ≤ 10 mm). Observe polarity and avoid sharp bends.
Close the diffuser – Snap in the milky PC cover along the run; add end treatment as needed.
Power & test – Connect to a suitable 12/24 V driver/dimmer, verify even illumination, then finish any seam work and clean down.
