Model number: CDP-031
Create seamless architectural lighting with this recessed plaster-in aluminum profile. Its curved milky diffuser delivers soft, evenly distributed illumination for ceiling coves, wall washing, corners, and baseboard applications. The 100 cm (39.37 in) profile blends cleanly into drywall for a modern frameless finish. LED strip, driver, and power supply are not included.
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00

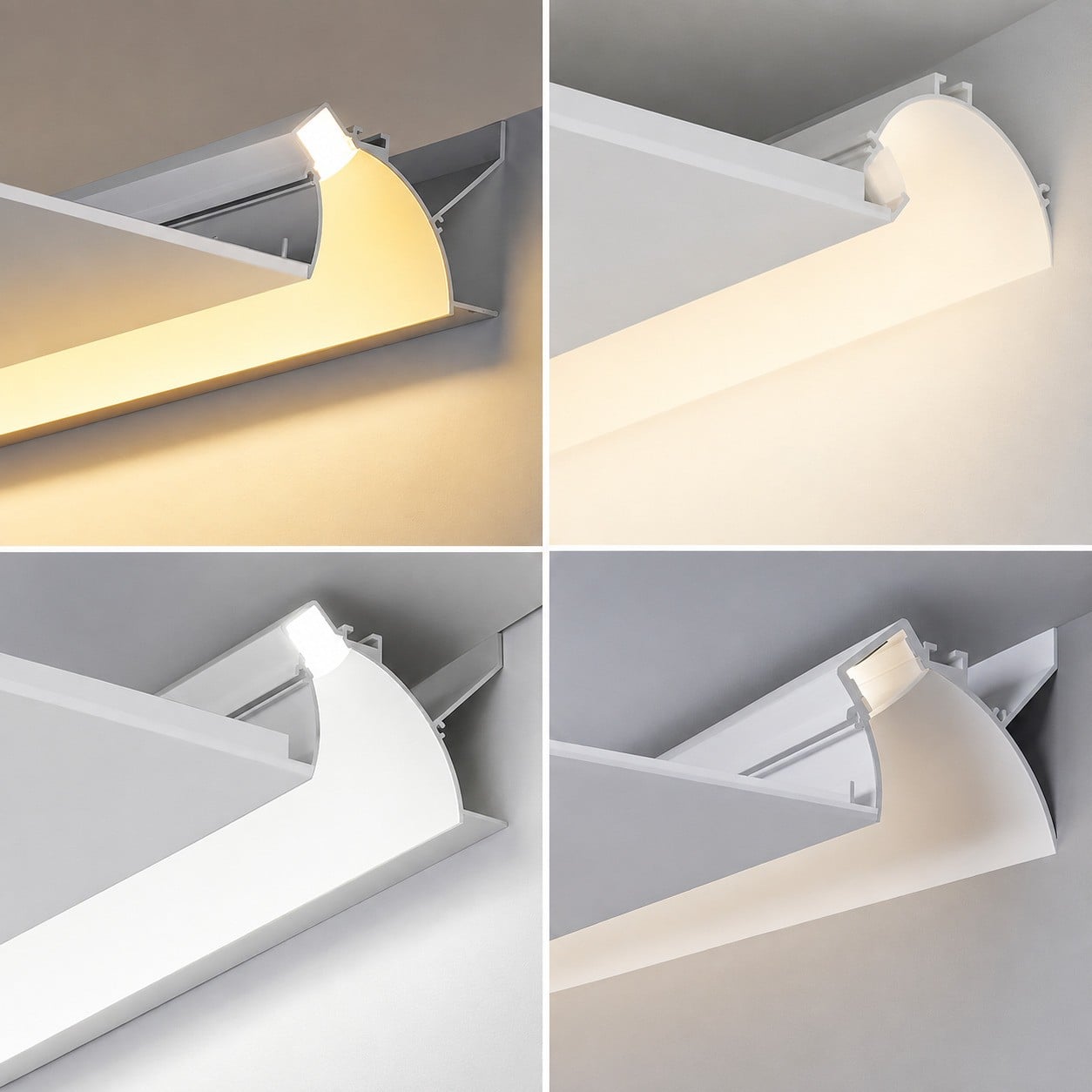

Create a clean, seamless architectural lighting feature with this frameless recessed LED aluminum profile. Designed to be embedded into drywall or gypsum board, the mounting flanges are concealed beneath the finished surface, leaving only the smooth curved diffuser visible. The result is a refined built-in appearance that blends naturally into modern residential and commercial interiors.

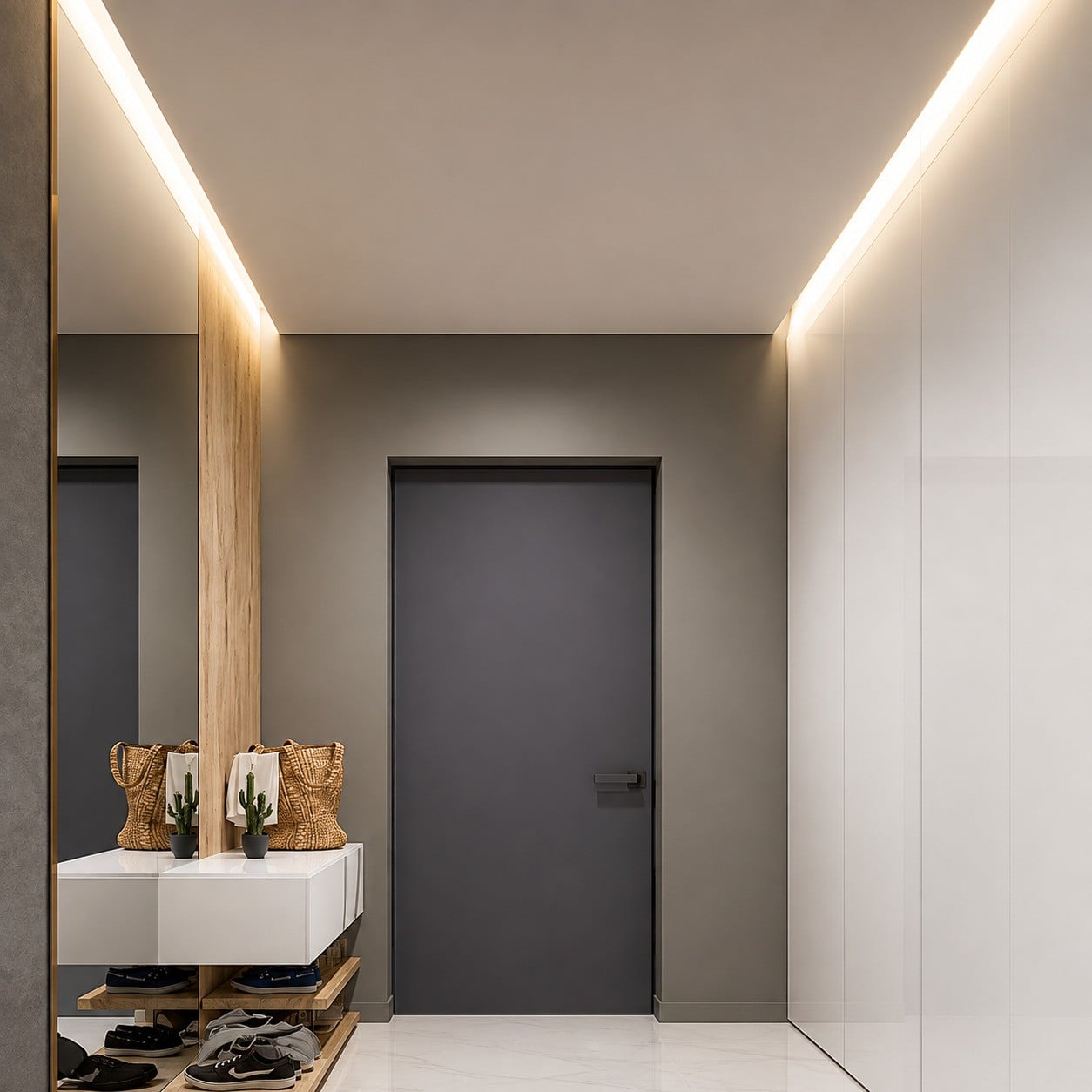

The durable aluminum housing helps dissipate heat from the installed LED strip, while the curved milky PC diffuser softens and distributes the light for a comfortable, continuous glow. Depending on its position and orientation, the profile can be used for ceiling perimeter lighting, top-corner illumination, wall washing, footline or baseboard lighting, and other decorative indirect-lighting designs.
The profile Length 1.6ft, 3.2ft, 6.6ft. The supplied specifications reference a 12V DC, 18W lighting configuration; however, the actual voltage, wattage, brightness, color temperature, and dimming capability will depend on the LED strip and driver selected. LED strip, driver, controller, and power supply are not included.
| Specification | Details |
|---|---|
| Product Type | Frameless recessed linear LED profile |
| Installation Type | Embedded / plaster-in installation |
| Body Material | Aluminum |
| Diffuser Material | Milky polycarbonate |
| Profile Color | White |
| Profile Length | 1.6ft, 3.2ft, 6.6ft |
| Overall Width | Approximately 9 cm / 3.54 in |
| Compatible Light Source | LED strip or LED tape |
| Reference Voltage | 12V DC |
| Reference Wattage | 18W |
| Power Source | DC |
| Built-In Dimming | No |
| Dimming Compatibility | Depends on the installed LED strip and driver |
| Lighting Effect | Soft, diffused indirect illumination |
| Installation Positions | Ceiling cove, top corner, wall wash, footline, and baseboard |
| Recommended Use | Indoor residential and commercial lighting |
| Certifications Listed | CCC, CE, RoHS |
| Included | Aluminum profile and curved milky PC diffuser |
| Not Included | LED strip, driver, controller, power supply, and wiring accessories |
Dimensions
Type A :
Overall width: 3.78in
Overall Height: 2.76
Mounting Height: 2.20in
Led Strip Channel Width: 0.85in
Mounting Lip Height: 0.55in
Maximum Led Strip PCB Width: Less than 0.47in
Type B :
Overall Width: 3.39in
Overall Height: 2.24in
Led Strip Channel Width: 0.77in
Maximum Led Strip PCB Width: Less than 0.39in
Type C :
Overall Width: 3.56in
Overall Height: 1.42in
Led Strip Channel Width: 0.48in
Maximum Led Strip PCB Width: Less than 0.24in
Type D :
Overall Width: 2.39in
Overall Height: 1.02in
Profile Width: 1.61in
Angled Section Width: 1.22in
Led Strip Chanel Width: 0.50in
Maximum Led Strip PCB Width: Less than 0.39in
Type E :
Overall Width: 1.65in
Overall Height: 2.09in
Profile Body Height: 1.30in
Upper Section Width: 1.30in
Led Strip Channel Width: 0.59in
Side Extension Width: 0.79in
Maximum Led Strip PCB Width: Less than 0.47in
Type F :
Overall Width: 1.44in
Overall Height: 2.36in
Upper Section Width: 0.56in
Inner Section Width: 0.38in
