Special Offer: Use code FALL10 in cart
$19.00
Model number: CDP-026
This product includes the aluminum channel only. To complete your setup, LED strips, power supplies, and accessories must be purchased separately.
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00
$19.00

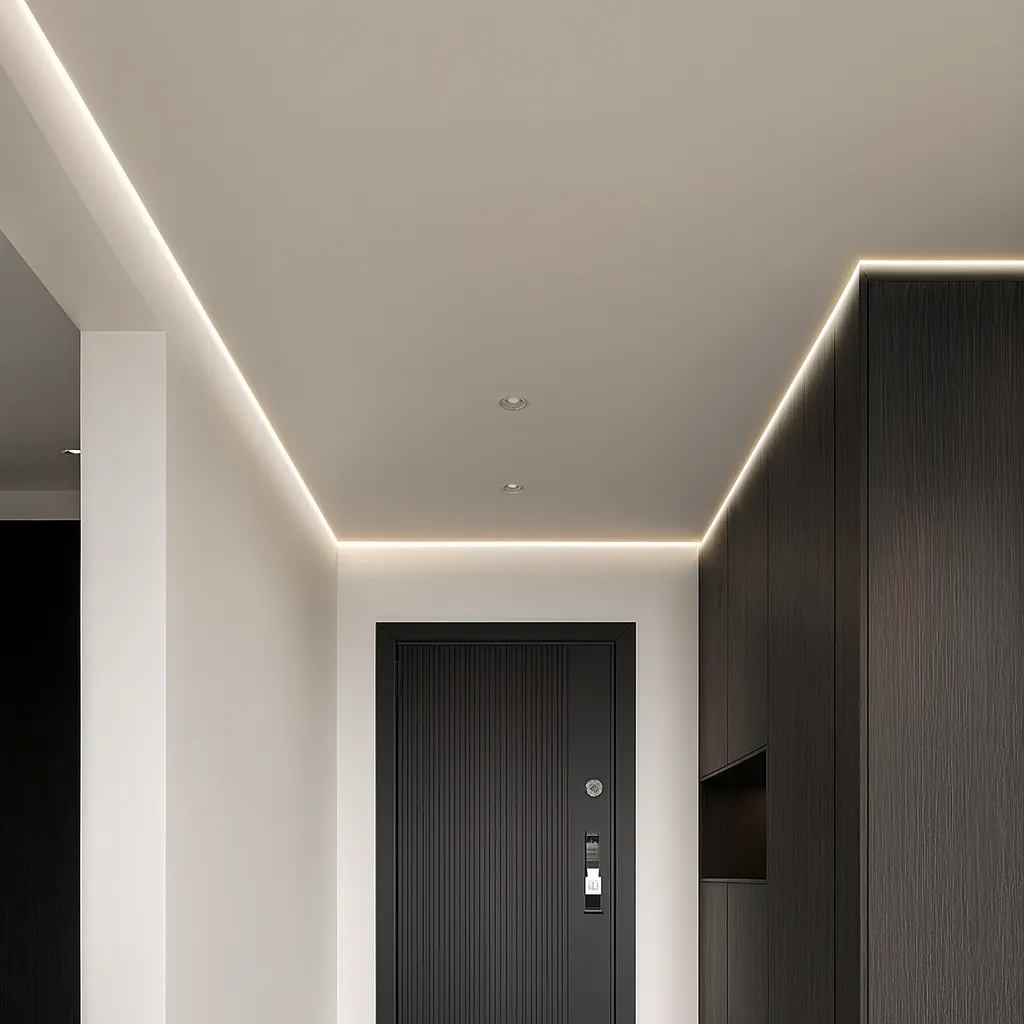

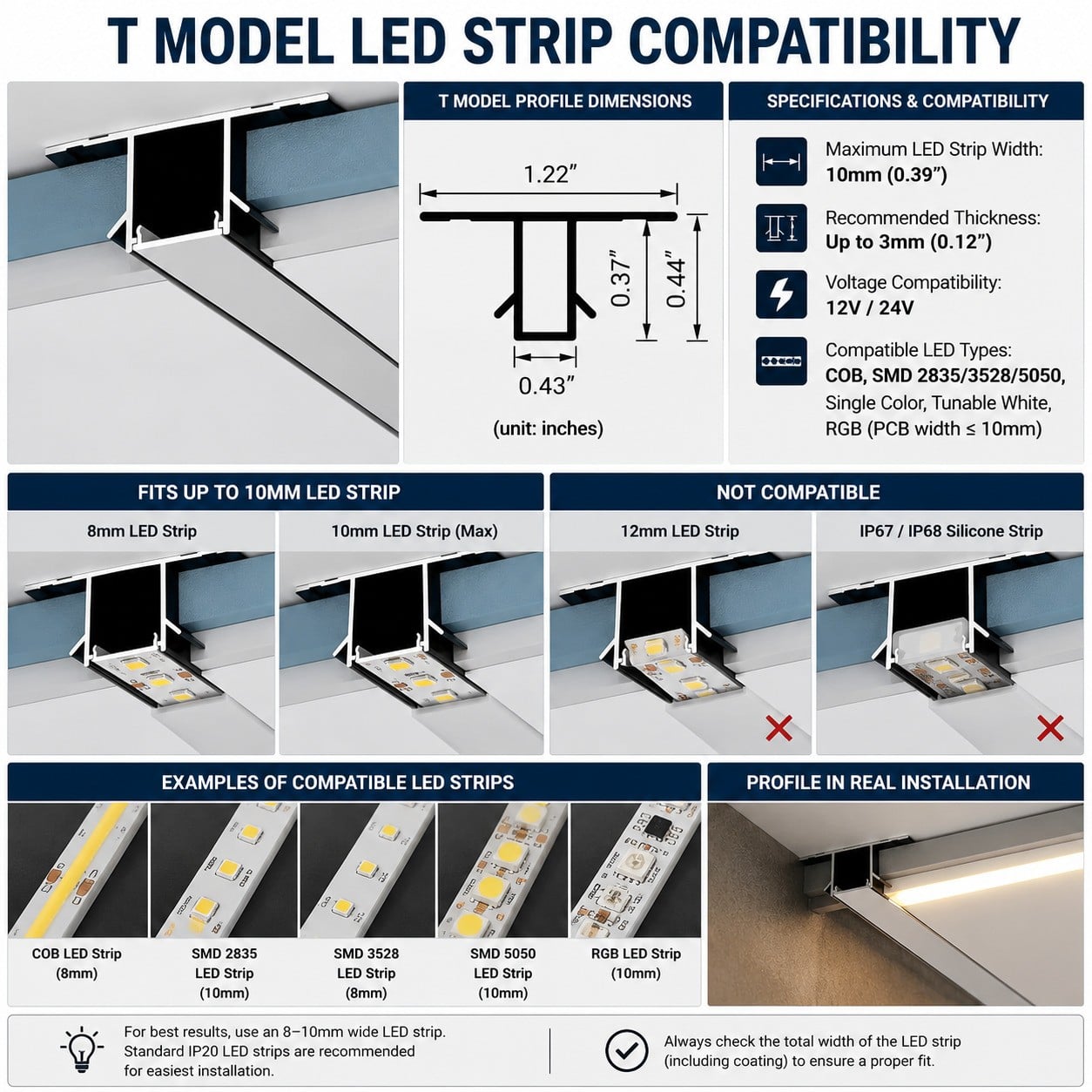

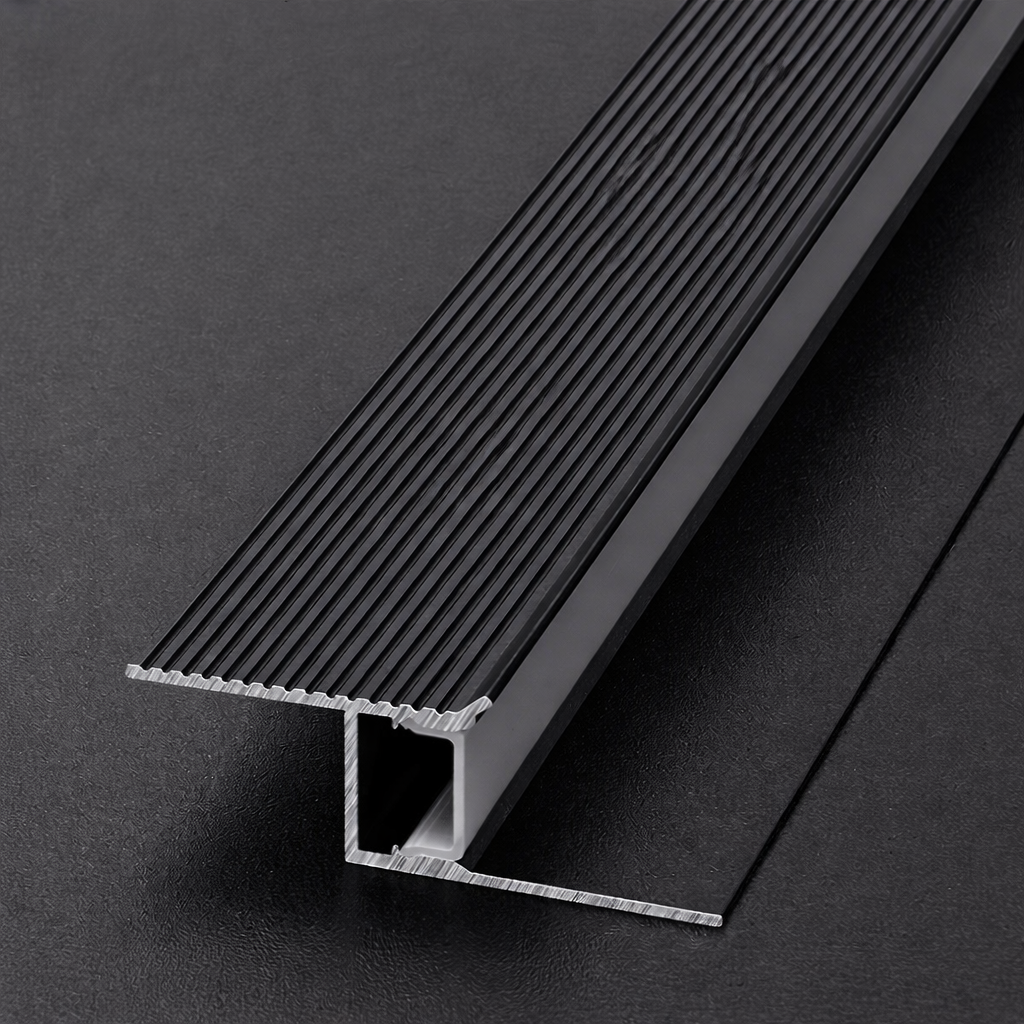

This floating ceiling LED aluminum profile is engineered for hidden linear lighting, giving architects, designers, and contractors a clean, seamless, indirect glow for modern residential or commercial spaces. Its ultra-narrow structure allows the LED strip to remain completely hidden while washing ceilings and walls with soft ambient light. Crafted from premium black aluminum, the profile delivers strong heat dissipation, long-lasting performance, and a perfectly uniform lighting effect. Available in Z Model and T Model, it supports recessed, suspended, or perimeter installations to create a luxurious floating-ceiling design with no visible light sourc. For Z Model 10 mm(0.39inch)-wide LED strip is the safest maximum size, leaving a small tolerance for installation and for T Model A 10 mm(0.39inch)-wide strip should be treated as the maximum safe size, because it leaves a small installation tolerance inside the approximately 10.9mm (0.43inch) channel.
| Feature | Detail |
|---|---|
| Models | Z Model: 0.85″ x 0.42″ x 0.42″ • T Model: 1.22″ x 0.44″ x 0.43″ |
| Available Lengths | 1.6 ft (0.5 m) • 3.3 ft (1 m) • 6.6 ft (2 m) |
| Material | Aluminum |
| Color | Black |
| Installation Type | Recessed / Floating Ceiling / Indirect Linear Lighting |
| Compatible LED Strip | Standard LED Strip {10–12mm (0.39–0.47 inches)} |
| Recommended Use | Back-light troughs, cove lighting, floating ceilings, ambient perimeter lighting |
To get recommended LED Strip lighting, [CLICK HERE].
Mark the installation line along the ceiling or wall where the floating light trough will be located.
Secure the aluminum profile using the included mounting clips or screw through the anchor points directly into drywall or the ceiling surface.
Insert the LED strip inside the channel, ensuring it sits flat for even heat dissipation and uniform lighting.
Route the wiring to your power supply or transformer, keeping all cables hidden inside the ceiling gap.
Snap on the diffuser cover (if included) to protect the LED and ensure smooth, indirect light output.
Test the lighting before closing or finishing the ceiling surface to ensure proper brightness and alignment.
Finish with drywall or paint around the profile to create a seamless floating-ceiling effect with no visible light source.
