Model number: FSK-027
Everything You Need in One Click
Forget the hassle – no more guessing which LED strips, channels, or power supplies will actually work together. With us, every order comes as a complete ready-to-use set. Yes – even if you purchase just one light bar, you’ll still receive the full kit: LED strip already mounted in the channel, plus matching power supply, switcher, and cables – all ready to plug in and use.
When you order multiple lights, we automatically include the additional power supplies and switchers you need, so your setup is always complete. Want to run up to 10 lights on a single switcher? Just leave a note at checkout and we’ll upgrade your power supply for free.
No hidden fees, no missing parts – the price you see is the final price for a working set.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $44.99.$19.00Current price is: $19.00.
Original price was: $19.00.$9.00Current price is: $9.00.
$14.99
Original price was: $34.99.$19.00Current price is: $19.00.
Original price was: $39.99.$19.00Current price is: $19.00.
Original price was: $19.00.$9.00Current price is: $9.00.

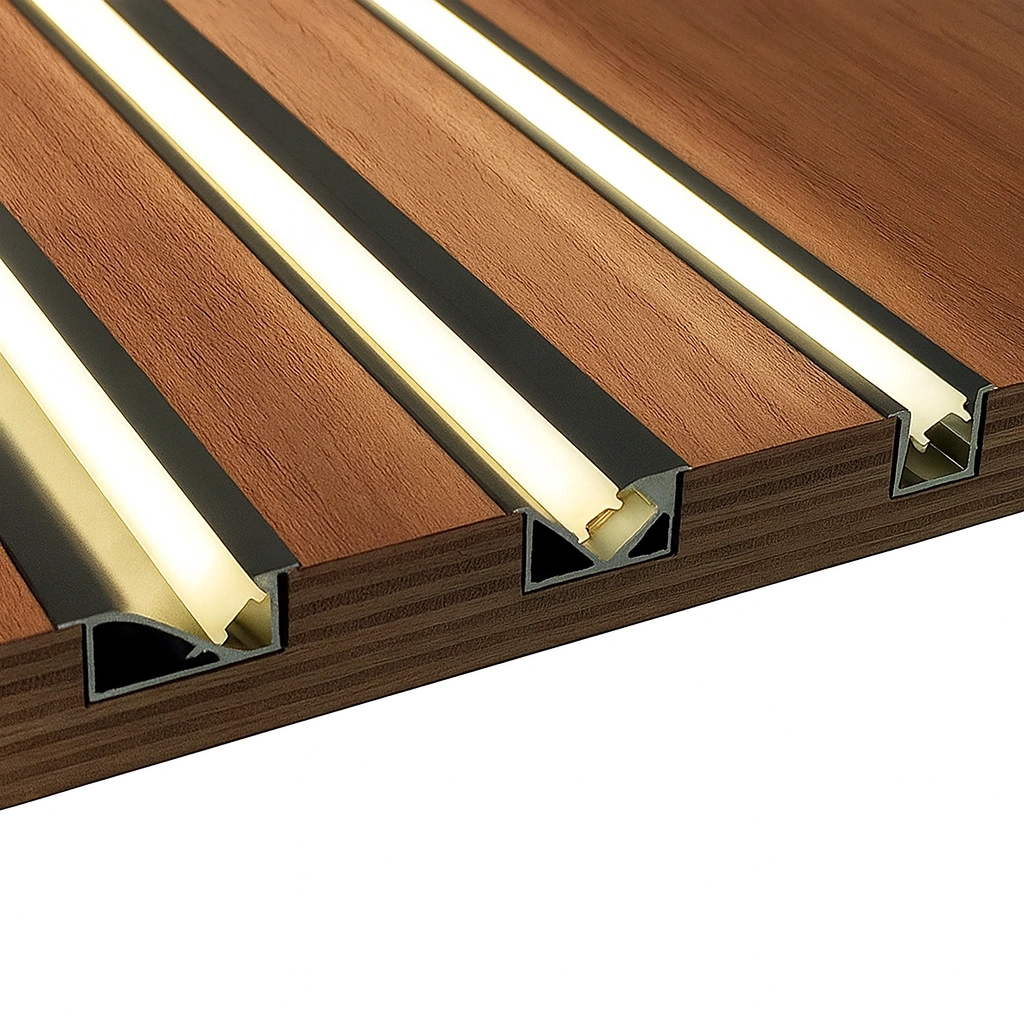

Designed for contractors, interior designers, and architects, this full-set 45° recessed LED aluminum profile delivers a sleek, hidden backlight for cabinets, shelves, closets, and custom millwork. The precision Y-shaped channel installs flush and aims light at a 45-degree angle to wash adjoining surfaces while keeping the light source out of sight. Each bar ships as a ready-to-install kit with a cuttable, high-density LED strip pre-wired to a 12V driver, DuPont quick-connects, and a low-profile sensor switch. The anodized aluminum housing provides robust heat dissipation; the milky PC diffuser blends output into a smooth, uniform line of light. Link sections end-to-end for longer runs and choose from multiple widths, depths, finishes, and lengths to match any modern interior.1x led strip.
Specifications
| Feature | Detail |
|---|---|
| Material | Anodized aluminum alloy profile with milky PC diffuser |
| LED Lighting | Integrated high-density LED strip (cuttable & linkable), fits ≤6 mm (0.24 in) channel |
| Operating Voltage | DC 12 V (AC 100–240 V adapter included) |
| Power Consumption | 10 W per meter |
| Color Temperatures | Warm White 3000 K · White 4000 K · Cold White 6000 K |
| Lighting Angle | 45° directional beam (oblique wash) |

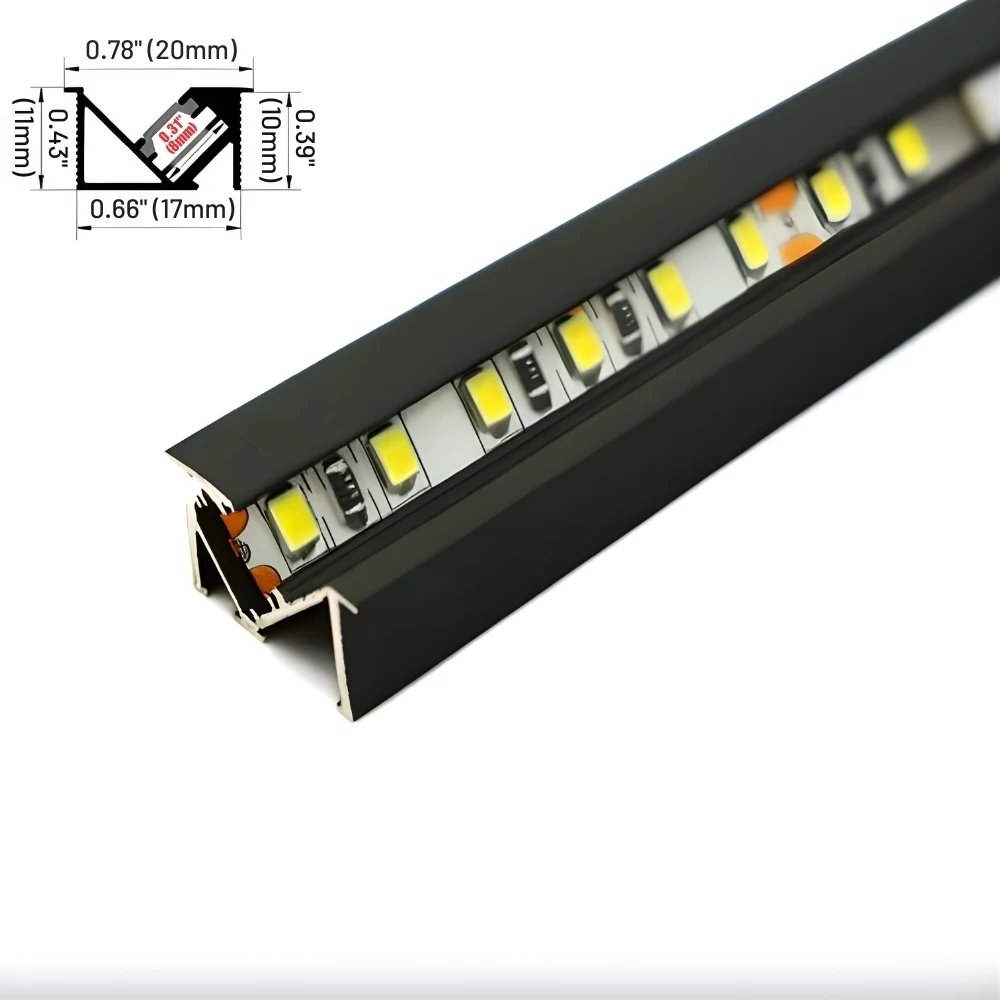

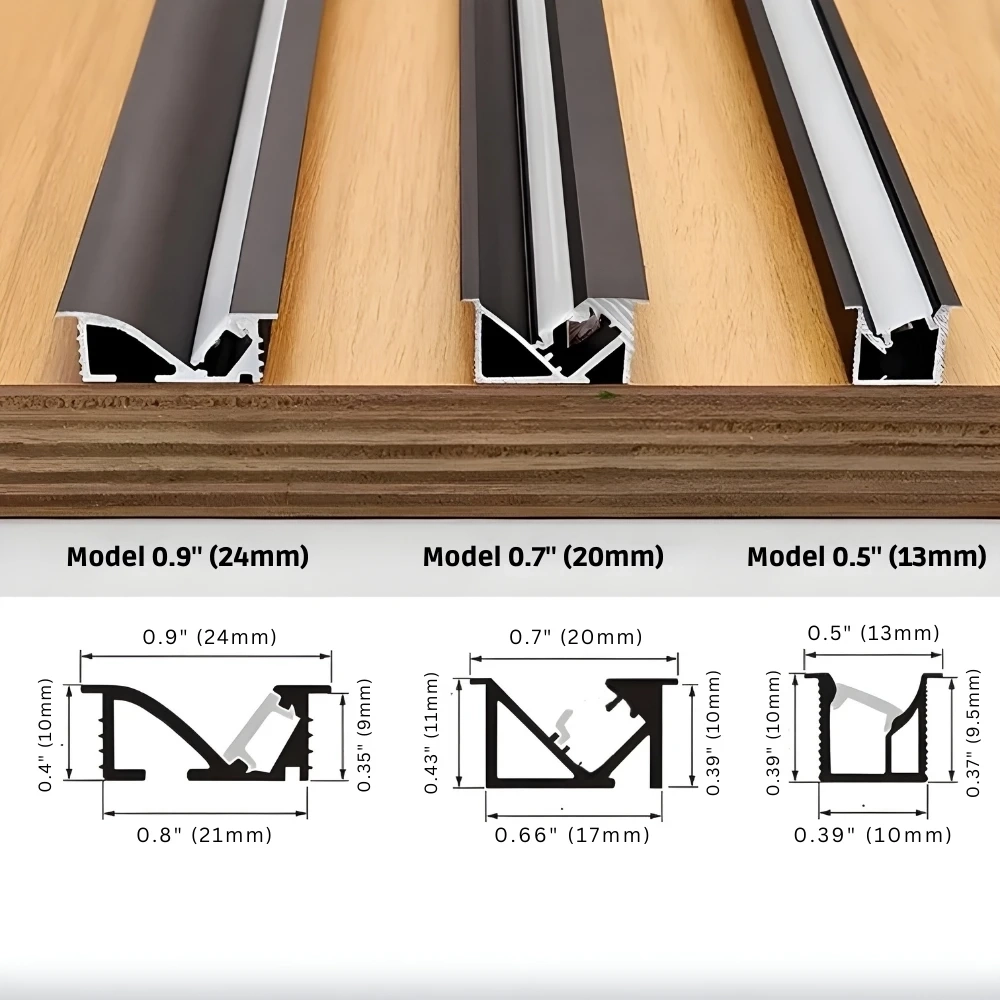

| Profile Width Options | 13 mm (0.51 in), 20 mm (0.79 in), 24 mm (0.94 in) |
| Profile Depth | Up to 11 mm (0.43 in), model-dependent |
| Inner Slot Width | Accepts LED strips up to 6 mm (0.24 in) |
| Length Options | 11.81″ (30cm) | 15.75″ (40cm) | 19.69″ (50cm) | 23.62″ (60cm) | 27.56″ (70cm) | 31.50″ (80cm) | 35.43″ (90cm) | 39.37″ (100cm) | 43.31″ (110cm) | 47.24″ (120cm) | 51.18″ (130cm) | 55.12″ (140cm) | 59.06″ (150cm) | 63″ (160cm) | 68″ (173cm) | 73″ (185cm) | 79″ (200cm) |
| Installation Style | Recessed/embedded 45° built-in or discreet surface mount |
| Installation Visibility | Concealed, minimalist finish (flush with surface) |
| Plug Type | US / UK / EU / AU supplied based on destination |
| Interface | 2-pin DuPont quick-connect |
| Dimming & Switching | Sensor switch included (on/off and dimming) |
| Connectivity | Daisy-chain supported; junction-box hole matching when using 6+ pieces |
| Finish Colors | Black, Silver, Gray, Coffee, Bronze, Gold |
| Applications | Cabinet corners, shelves, vanities, workspaces, display niches, accent walls |
| Included Accessories | Power supply/driver, sensor switch, wiring cables (full kit) |
Installation Notes
Mark the mounting surface and fix the profile using included screws.
Cut the bar to your desired length using an aluminum-compatible saw.
Connect to the included driver and power supply using DuPont connectors; it can also be hardwired directly to your current setup.
Mount sensor switch if desired.
Power on and enjoy seamless corner illumination.
