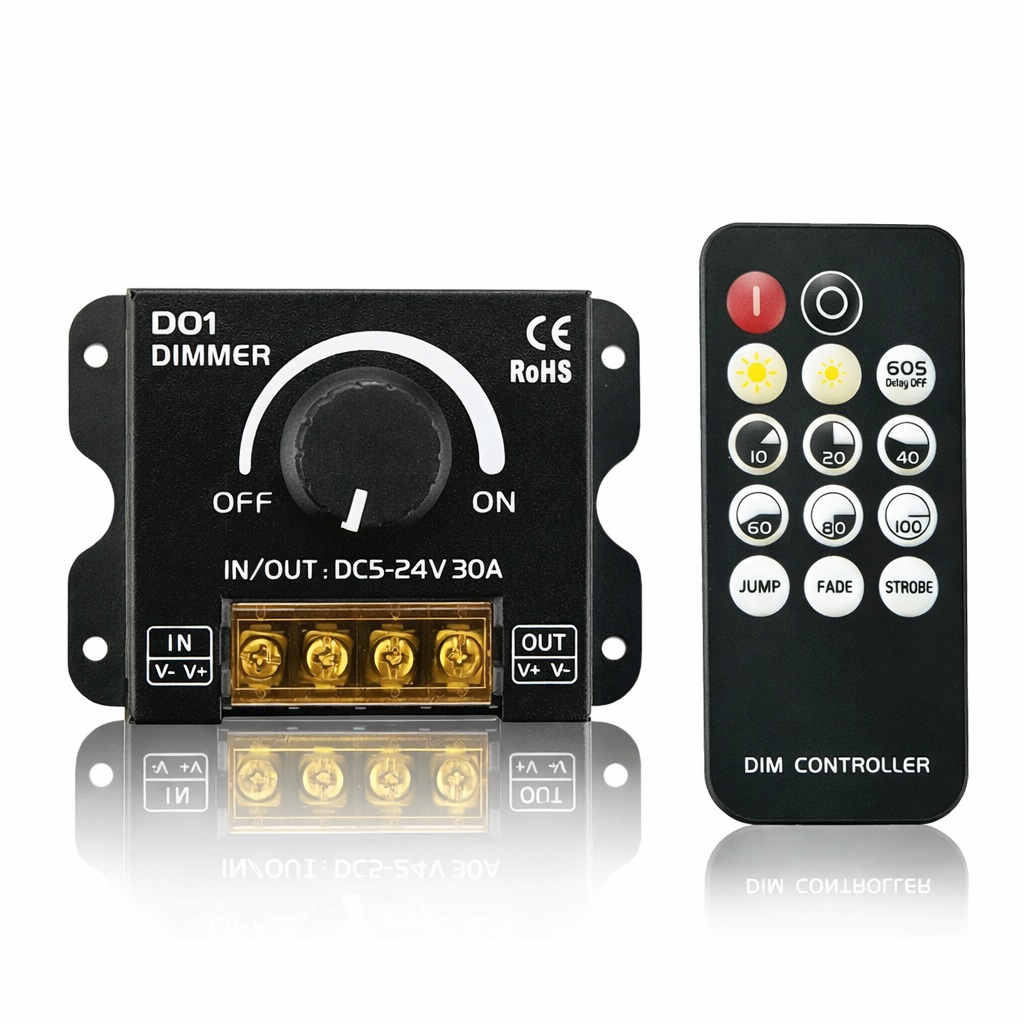

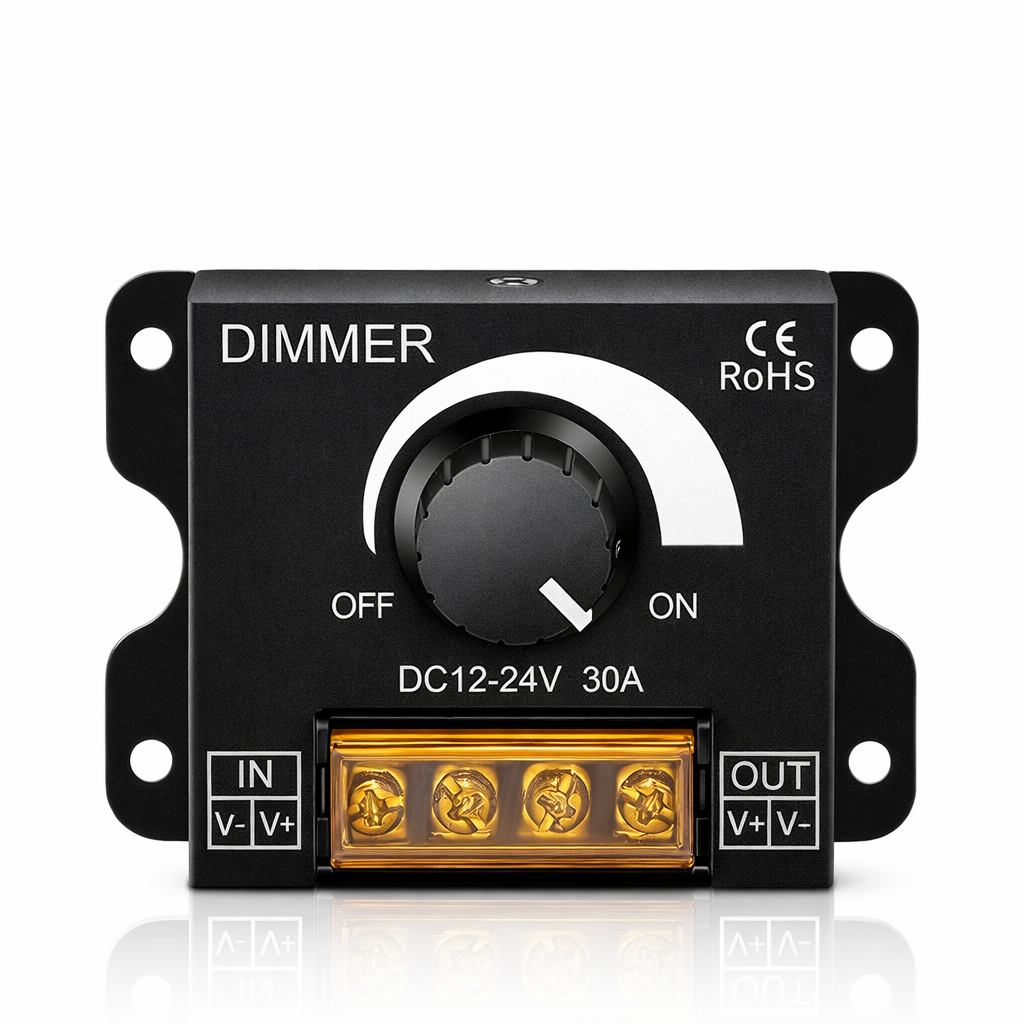

Take full control of your LED lighting system with this advanced DC 12V–24V 30A LED Dimmer Controller, designed for both single-color dimming and adjustable color temperature (CCT) applications. Featuring a high-power capacity and smooth PWM dimming technology, this controller delivers precise, flicker-free brightness adjustment for professional and residential lighting setups.
Built with a durable metal housing and integrated ventilation design, the dimmer ensures efficient heat dissipation even under heavy loads. The included remote control allows convenient wireless operation, enabling you to adjust brightness, switch modes, and customize lighting effects from a distance.
Available in both standard dimming (D01) and CCT tuning (D02) versions, this controller is ideal for LED strips, COB lighting, architectural installations, and under cabinet systems. With safe screw terminal connections and a protective terminal cover, installation is secure, simple, and reliable.
| Feature | Details |
|---|---|
| Product Type | LED Dimmer Controller / CCT Controller |
| Model Options | D01 (Single Color Dimmer) / D02 (CCT Adjustable) |
| Input Voltage | DC 5V – 24V |
| Output Voltage | DC 5V – 24V |
| Max Current | 30A |
| Max Power | 150W (5V) / 360W (12V) / 720W (24V) |
| Control Methods | Rotary Knob + Remote Control |
| Dimming Method | PWM (Pulse Width Modulation) |
| Channels | Single Color (D01) / Dual Channel CW+WW (D02) |
| Remote Functions | Brightness, Modes, Timer, Effects |
| CCT Range (D02) | 2700K – 6500K |
| Input Terminals | V- / V+ |
| Output Terminals | V+ / V- (D01), CW / WW (D02) |
| Connection Type | Screw Terminal Block with Protective Cover |
| Material | Metal Housing + ABS Components |
| Cooling | Side Ventilation Heat Dissipation |
| Mounting | Surface Mount (screw holes included) |
| Dimensions | 3.39 × 2.44 × 0.83 in (approx.) |
| Knob Height | 0.63 in |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
| Certifications | CE, RoHS |
| Compatibility | LED strips, COB LEDs, single color & CCT lighting |
| Application | Cabinet lighting, architectural, commercial, home lighting |
High Power Output (up to 30A
Smooth 0–100% dimming (no flicker)
Remote + manual control options
CCT tuning (warm to cool white)
Heavy-duty metal construction
Safe terminal block with protective cover
Efficient heat dissipation for long lifespan
For complete product specifications, click the file below:
