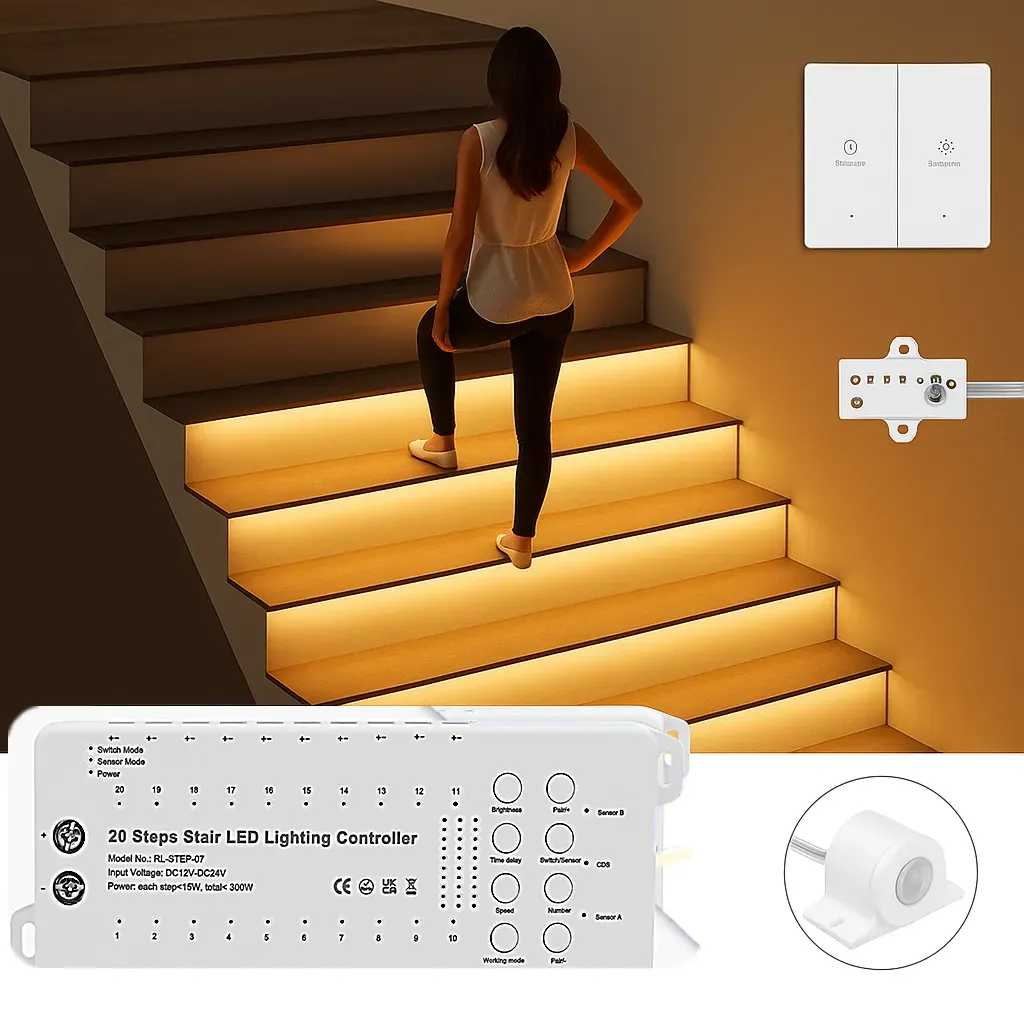

The Smart Motion Sensor Stair Lighting Kit delivers a complete plug-and-play lighting system for elegant, automated step illumination. Designed for staircases with up to 20 steps, it combines high-density COB LED strips (480 LEDs per meter, CRI 90+) with a dual PIR motion sensor setup that activates the lights as you move up or down the stairs. The included daylight sensor ensures energy efficiency by preventing activation in bright environments. Each strip emits soft, uniform light in your choice of warm white (3000K), natural white (4000K), or cool white (6000K). The intelligent controller supports 12 lighting modes, adjustable brightness, delay time, and speed control, offering full customization for any home or office. With RF wall switches for manual ON/OFF and brightness control, this smart kit provides effortless operation, safe low-voltage power, and modern lighting aesthetics suitable for DIY installation.
Specifications:
| Feature | Detail |
|---|---|
| Available Steps | 1–20 steps (select preferred option) |
| LED Type | COB LED Strip – 480 LEDs/m |
| Color Temperature | Warm White 3000K / Natural White 4000K / Cool White 6000K |
| Input Voltage | AC 100–240V (with included transformer) |
| Output Voltage | DC 12V–24V |
| Power Capacity | Max 15W per step, total ≤300W |

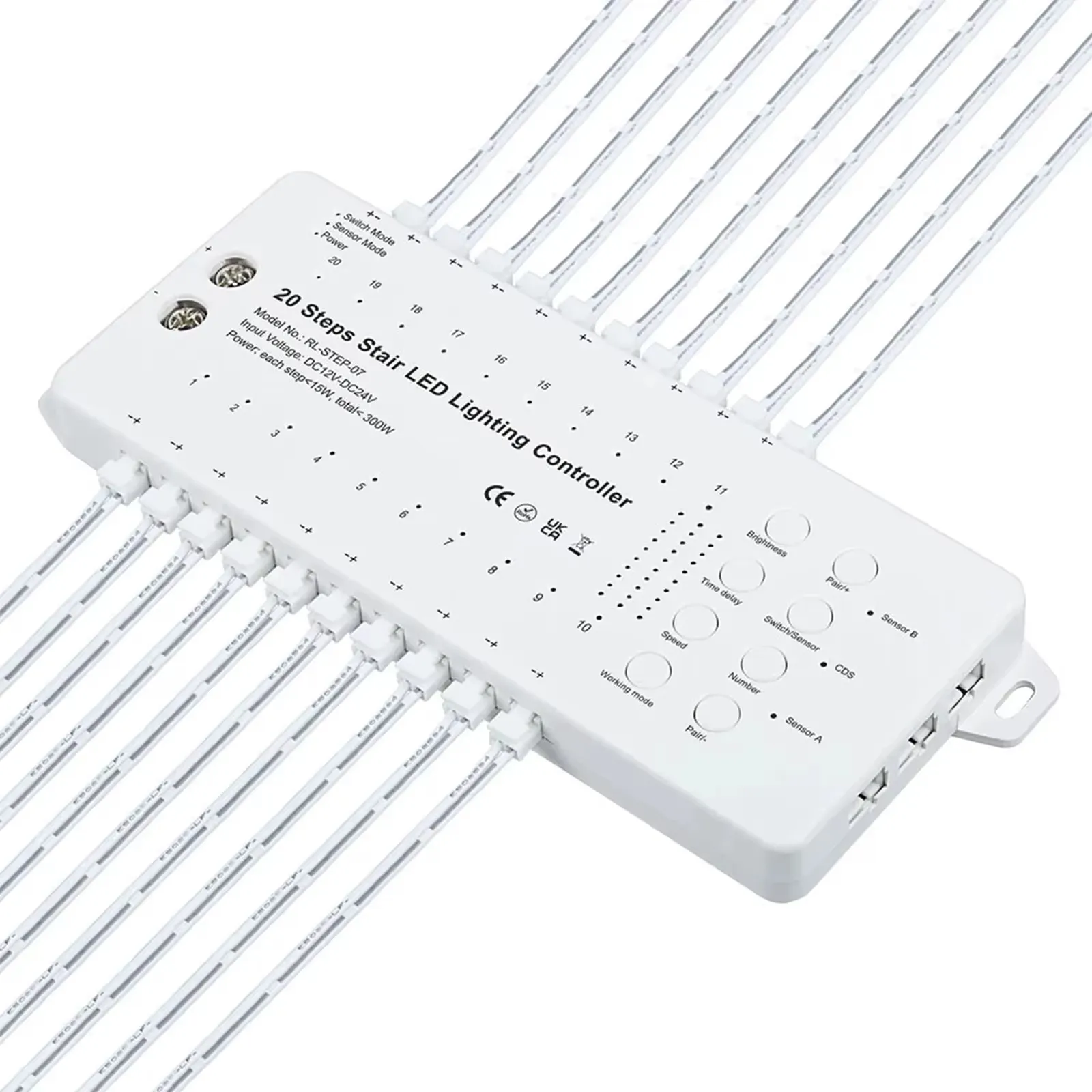

| Controller Model | KLA-STEP-07 (20-Step LED Controller) |

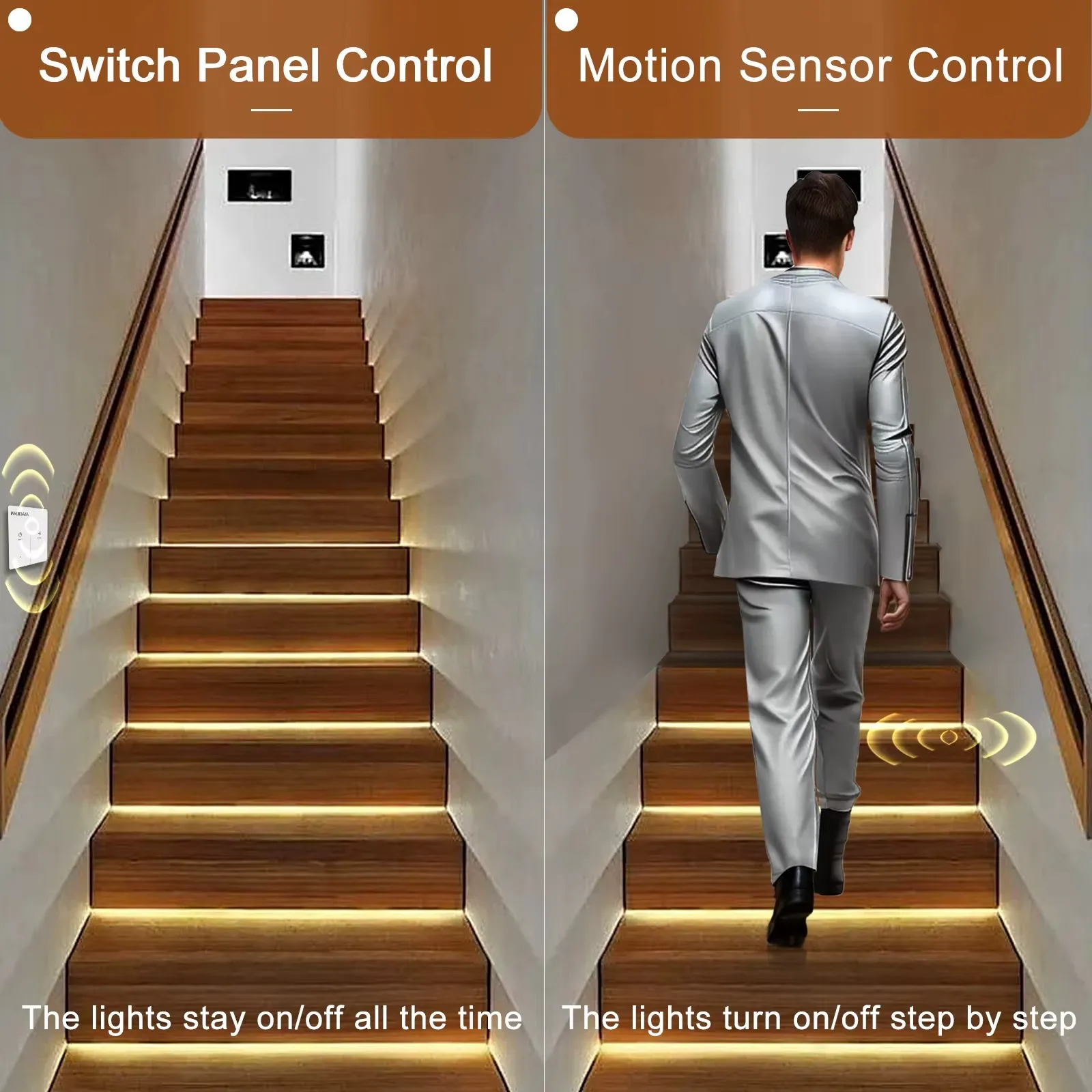

| Control Modes | PIR Motion Sensor / RF Wireless Wall Switch |

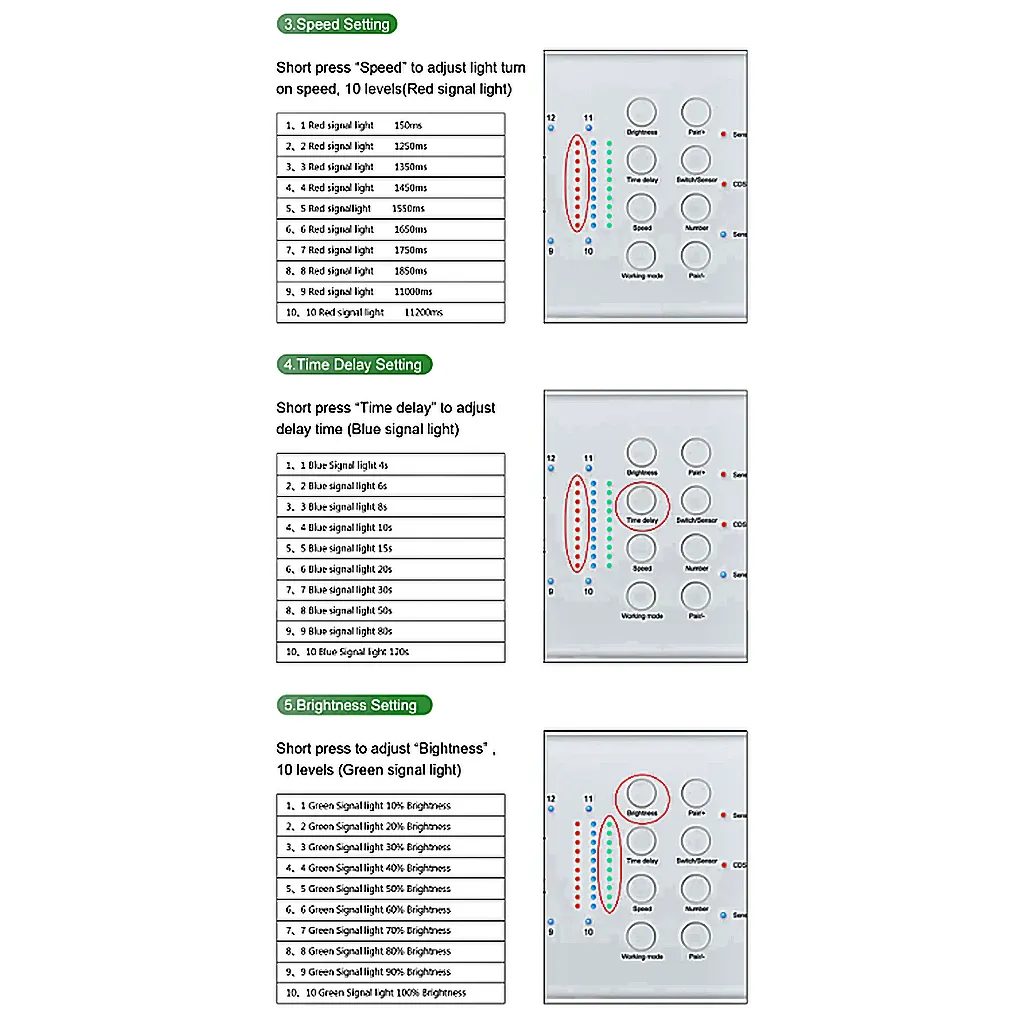

| Lighting Effects | 12 dynamic modes with adjustable brightness, delay, and speed |
| CRI Rating | 90+ |
| LED Strip Length | 1m (3.28ft) per step |
| Cuttable Sections | Every 50mm |
| Connector Type | 2-Pin Dupont Interface |
| Installation Type | Plug-and-Play, DIY friendly |
| Application | Indoor staircases, duplex homes, apartments, offices |
What’s Included:
1 × KLA-STEP-07 LED Stair Controller
2 × PIR Motion Sensors (top and bottom)
1 × Daylight Sensor
2 × RF Wireless Wall Switches (battery not included)
X × 1m COB LED Strips (based on selected number of steps)
1 × Transformer Power Supply (without plug)
1 × 5m PIR Sensor Extension Cable
X × LED Strip Extension Cables (based on step count)
