LED Aluminum Channel Strip Diffuser – 3D Water Ripple Surface-Mount Profile for Cabinet Wall and Accent Lighting

Create a striking decorative lighting effect with this aluminum LED strip channel, featuring a transparent corrugated acrylic diffuser that refracts the light into a distinctive water-ripple pattern. Unlike a standard frosted cover, the textured lens produces flowing reflections that can resemble moving water or soft flames, making it ideal for atmospheric accent lighting in modern residential and commercial interiors.

The rigid aluminum housing provides a clean architectural appearance while helping dissipate heat from the installed LED tape. Its slim surface-mounted design works beautifully beneath cabinets, inside shelving, along feature walls, over counters, or as decorative illumination in bars, restaurants, lounges, showrooms, and entertainment spaces. Multiple housing finishes are shown, including silver, black, dark gray, and bronze, allowing the profile to coordinate with different interior styles.

Each profile measures approximately 19.69 inches long and accommodates a compatible LED strip up to approximately 0.51 inches wide. The supplier specifications reference a 12V DC, 8W lighting configuration; however, the final voltage, brightness, color temperature, and dimming capability depend on the LED strip and power system selected. This product is the aluminum channel and corrugated acrylic diffuser only; the LED strip, driver, controller, and power supply are not included.

Specifications

Specification	Details
Product Type	Decorative LED aluminum channel and diffuser
Profile Design	Rigid linear surface-mounted profile
Diffuser Style	3D corrugated water-ripple acrylic lens
Lighting Effect	Water-ripple, flame-like, and atmospheric light pattern
Profile Material	Aluminum
Diffuser Material	Transparent textured acrylic
Length	0.5 m (19.69 in) | 1m (3.2ft)
Overall Width	Approximately 15 mm / 0.59 in
Overall Height	Approximately 10 mm / 0.39 in
Diffuser Face Width	Approximately 12 mm / 0.47 in
Internal Strip Space	Approximately 13 mm / 0.51 in
Compatible Light Source	LED strip light
Recommended Voltage	12V DC reference configuration
Reference Wattage	8W per 50 cm configuration
Light Output	Determined by the installed LED strip; supplier reference is below 60 lm
Dimming	No built-in dimming; depends on the selected LED strip, driver, and controller
Power Source	DC low-voltage system
Installation Method	Surface-mounted using compatible mounting clips

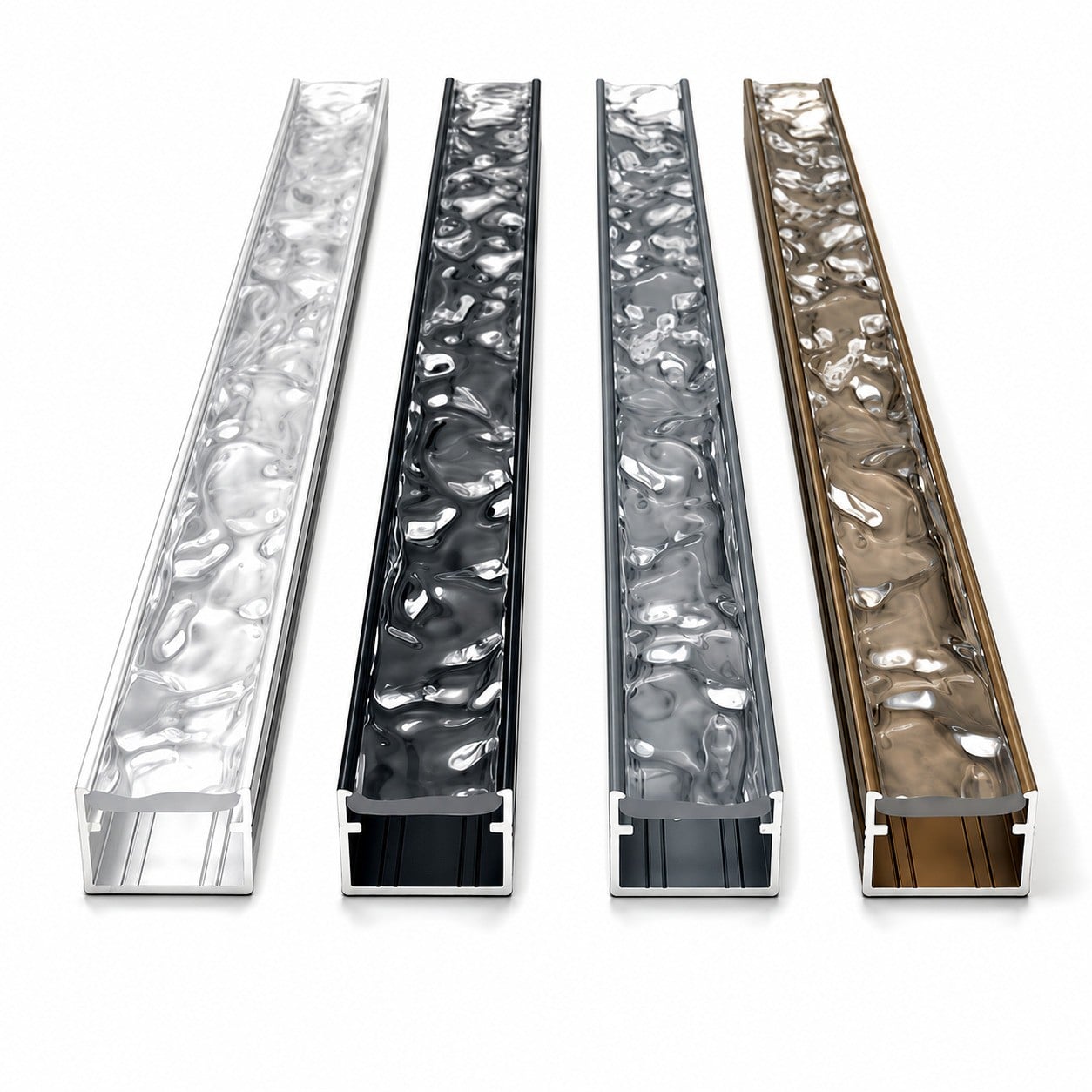

Available Finishes Shown	Silver, black, dark gray, and bronze
Application	Cabinets, shelves, feature walls, counters, bars, displays, and accent lighting
Recommended Environment	Indoor use
Supplier-Listed Certifications	CE and CCC
LED Strip Included	No
Driver or Power Supply Included	No

For complete product specifications, click the file below:
